Automatic tube cut machine

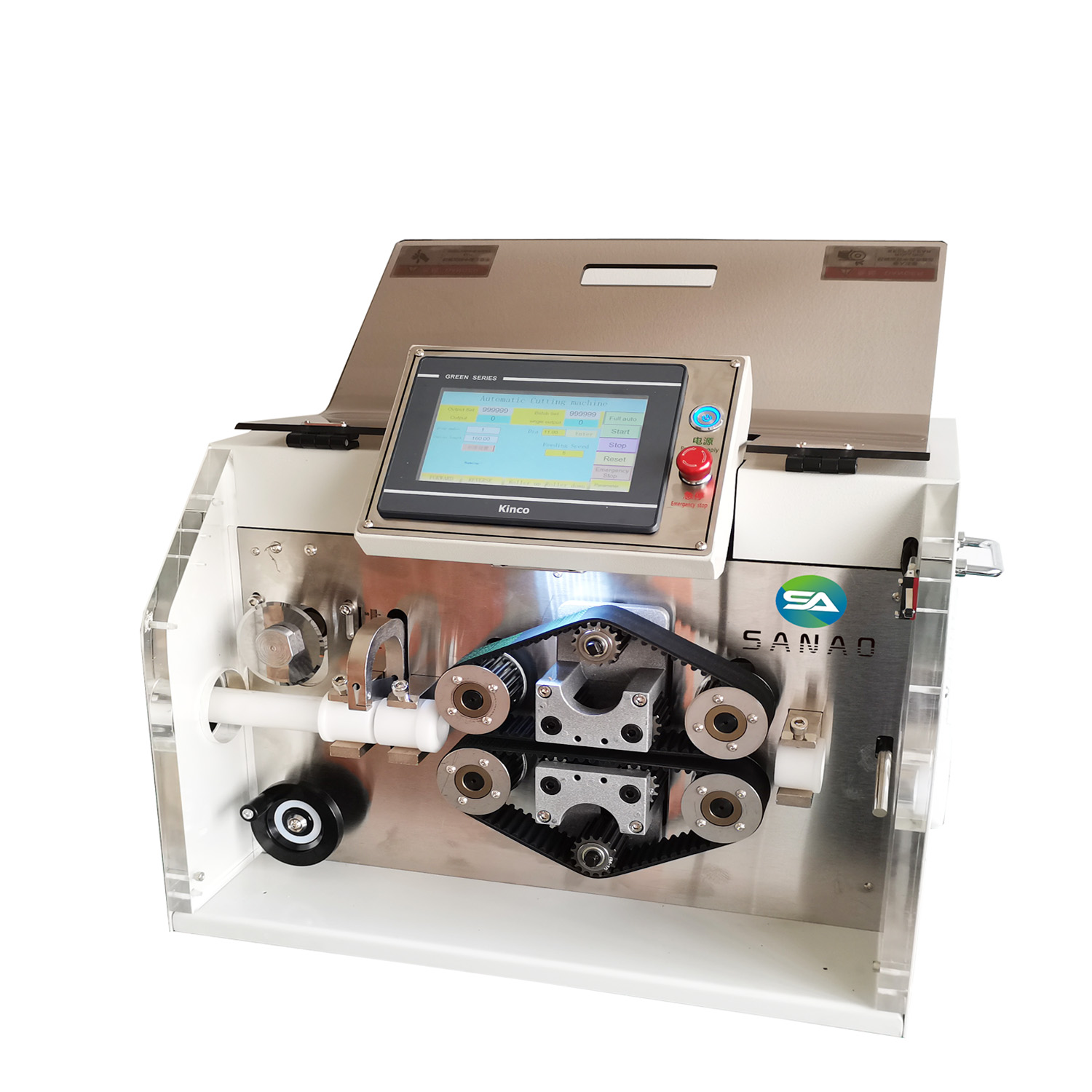

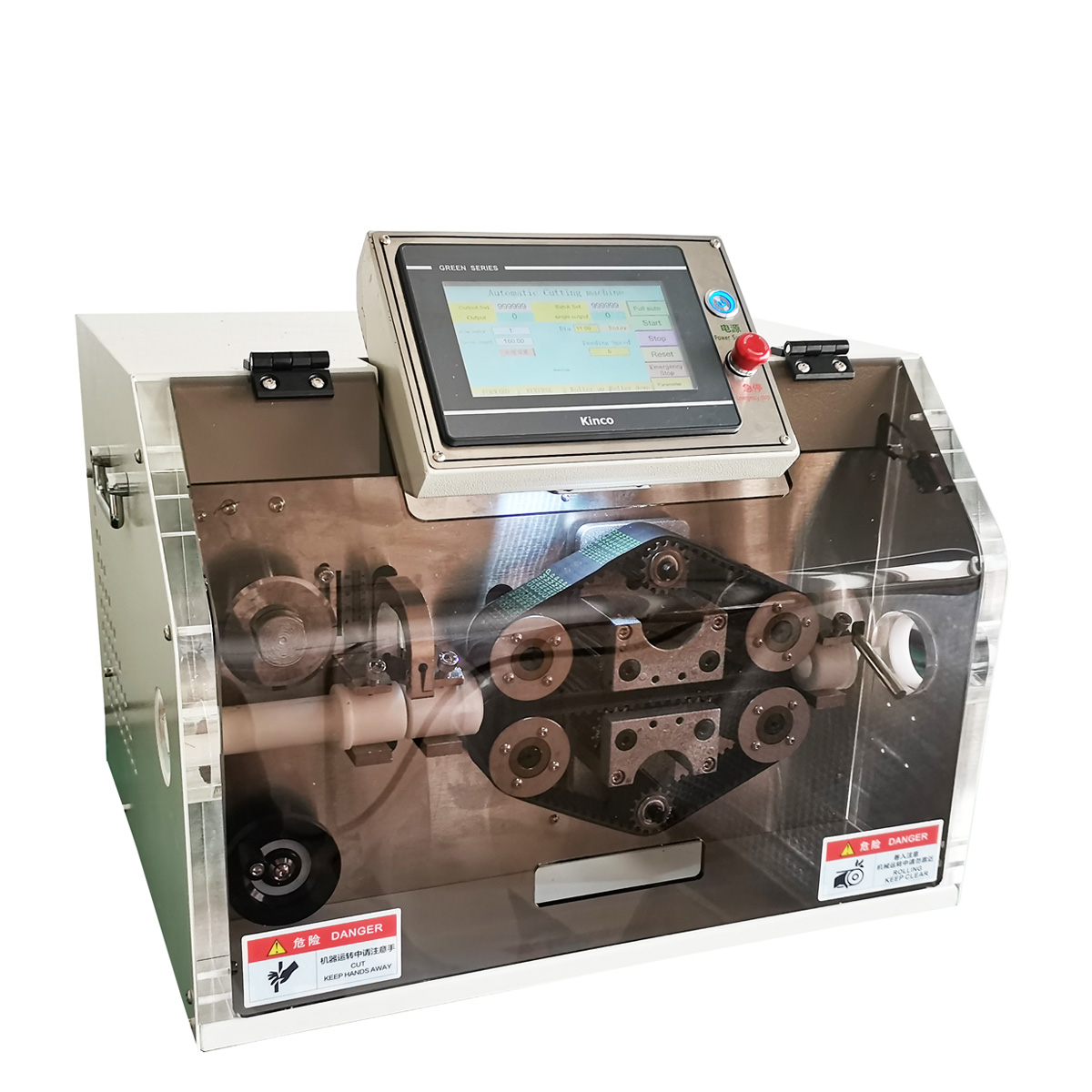

Automatic Corrugated Tube Cutting Machine with splitting function

Automatic Corrugated Tube Cutting Machine with splitting function

SA-BW32-P
Description: SA-BW32-P,Automatic Corrugated Tube Cutting Machine with splitting function,The splitting pipe is convenient to install the electric wire ,you can turn off the splitting function if you not need , It’s popular with customer because of perfect cutting effect and stable quality,It is widely used for corrugated hose , Soft plastic hose，PA PP PE Flexible Corrugated Pipe.
INQUIRY EMAIL

SA-BW32-P, Automatic Corrugated Tube Cutting Machine with splitting function,The splitting pipe is convenient to install the electric wire, you can turn off the splitting function if you not need , It’s popular with customer because of perfect cutting effect and stable quality,It is widely used for corrugated hose , Soft plastic hose，PA PP PE Flexible Corrugated Pipe.

Features:

1.Specially designed for the corrugated pipe processing of the automotive wire harness industry, high-precision PLC control, easy to understand.

2.Can be used for round plastic round tube, bellows cutting, high processing efficiency, stable and reliable.

3.Feeding with stepper motor, it has the characteristics of stable feeding and accurate length. The circuit uses integrated circuits for stable control and simple maintenance.

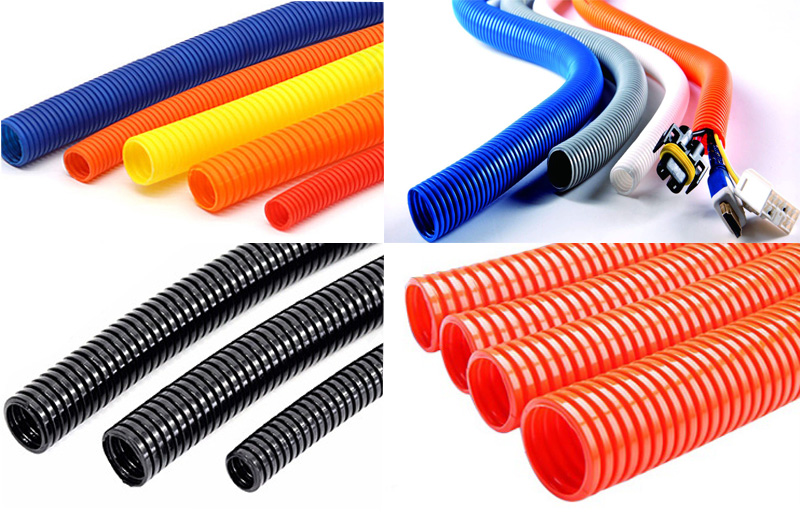

4.It's widely used in Highways,Bridges,Railways, Light Rail,Car, Transportation,Electrical,Monitoring equipment,Underground cable protection,Connect machine controls,All area of protection for insulated electrical cables and wires ect.

Model	SA-BW32-P	SA-BW60-P
Power	220V 50-60HZ	220V 50-60HZ
Rated Power	700W	700W
Cutting diameter	ø5-30mm	ø5-55mm
Cutting tolerance	±0.5% cutting off length	±0.5% cutting off length
Cutting speed	10-60 pcs/min (depending on the length)	10-60 pcs/min (depending on the length)
Dimension	85 x 70 x 68cm (L x W x H)	85 x 70 x 68cm (L x W x H)
Weight	96KG	96KG
