Electric wire stripping machine

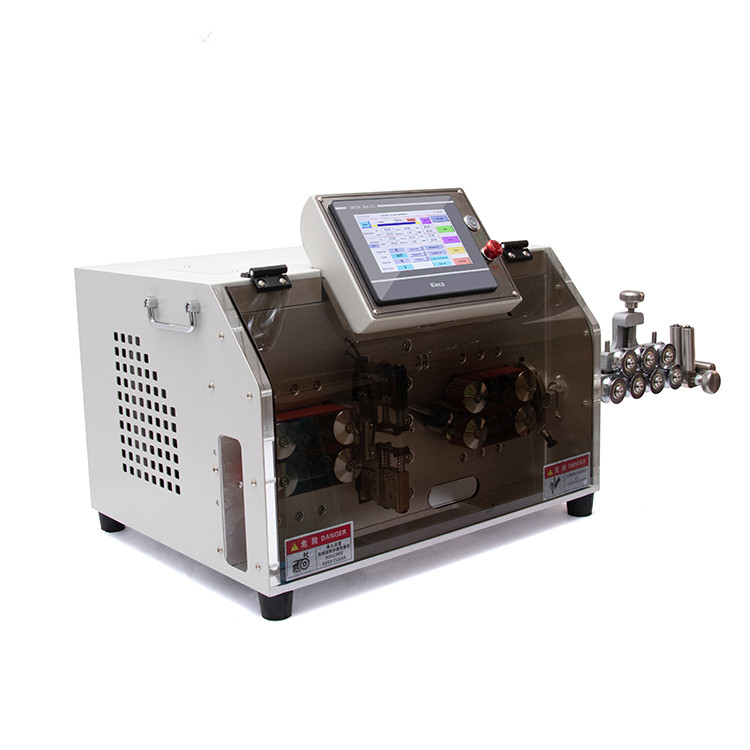

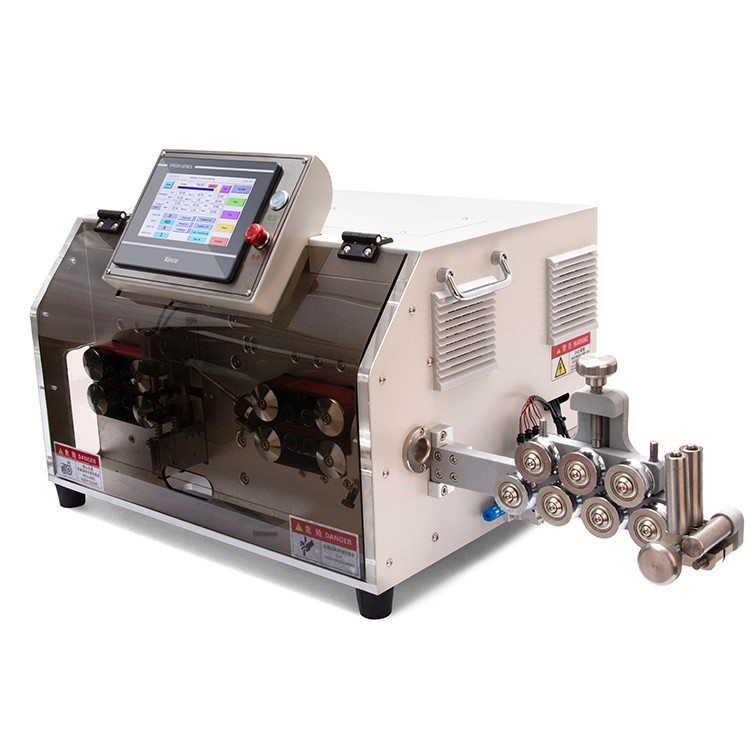

Automatic multi core middle stripping and cutting machine

Automatic multi core middle stripping and cutting machine

Model : SA-H03-M
Description: Processing wire range: 4-30mm², SA-H03-M,Automatic middle stripping and cutting machine,designed for multi-cores cable and single wire outer jacket middle stripping and cutting ,This machine best solve the problem of sheathed wire middle stripping very well , and You also can turn off the middle stripping function if you not need ,It’s Greatly Improved stripping speed and save labor cost.
INQUIRY EMAIL

Full automatic Large single cable stripping cutting machine.

4-30mm², SA-H03-M,Automatic middle stripping and cutting machine,designed for multi-cores cable and single wire outer jacket middle stripping and cutting ,This machine best solve the problem of sheathed wire middle stripping very well ,
and You also can turn off the middle stripping function if you not need ,Widely used in wire harness. It’s Greatly Improved stripping speed and save labor cost.

Introduction：

1.It’s fully automated CNC equipment that introduces advanced technologies from Japan and Taiwan ,Computer intelligent control.

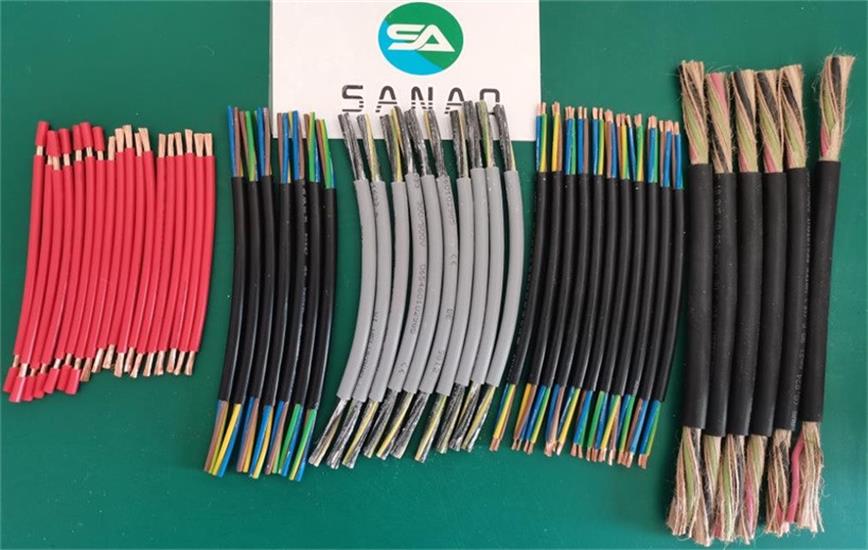

2.Suitable for cutting and stripping PVC cables, Teflon cables, Silicone cables, glass fiber cables etc

3.Easy to operate program with English display , stable quality with 1 year warranty and low maintenance,

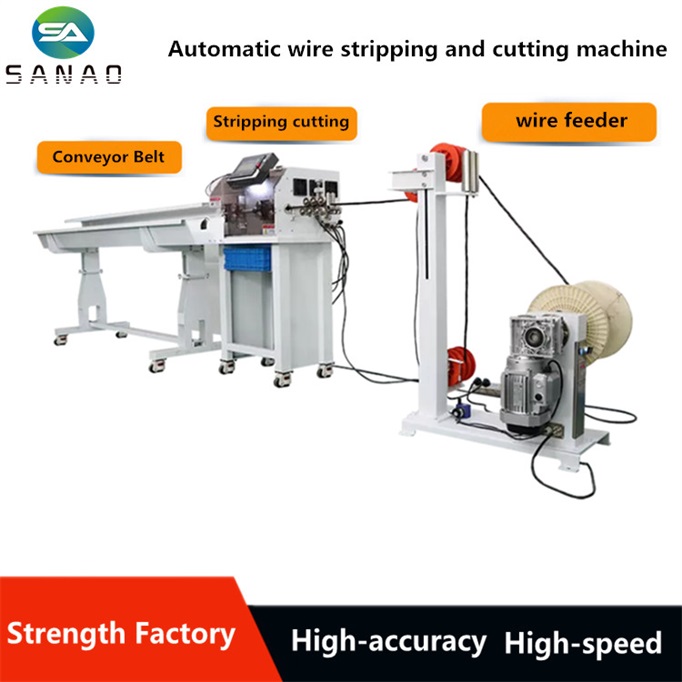

4.Optional external device connection possibility: Wire feeding machine,wire take-out device and Safety protection.

5.Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy,It’s can Greatly Improved stripping speed and save labour cost.

Model	SA-H03-M	SA-H07-M
Conductor Cross-Section	4-30mm²	10-70mm²
Cutting Length	1-99999mm	1-99999mm
Cutting Length Tolerances	≤(0.002*L) mm	≤(0.002*L) mm
Jacket Stripping Length	Head 1-200mm; Tail 1-120mm	Head 1-800mm; Tail 1-260mm
Inner Core Stripping Length	/	/
Conduit Diameter	Φ16mm	Φ25mm
Production Rate	Single wire :2300pcs/h	single wire : 2800pcs/h
Production Rate	Sheath wire :800pcs/h (base on wire and cutting length)	Sheath wire 800pcs/h (base on wire and cutting length)
Display Screen	7 inch touch screen	7 inch touch screen
Drive Method	16 wheels drive	32 wheels drive
Wire Feed Method	Belt feeding wire, no indentation on cable	Belt feeding wire, no indentation on cable
