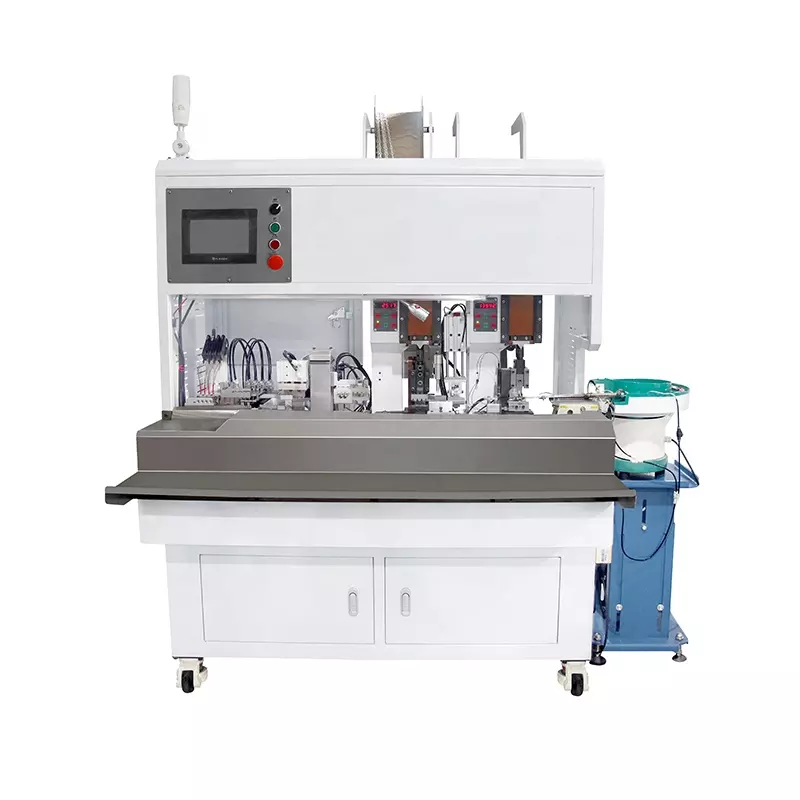

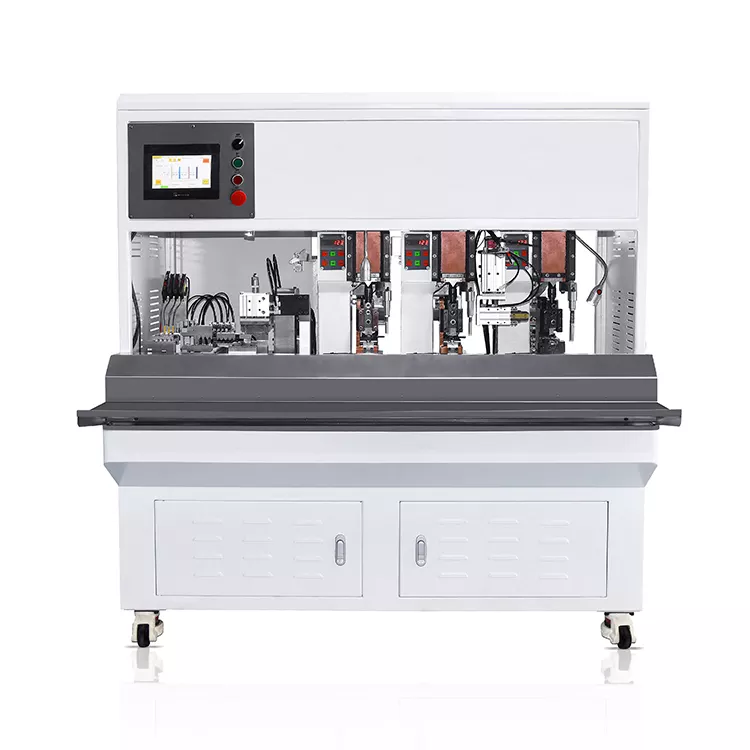

SA-HT400 Design for 3-4 core sheathed power cable stripping crimping machine ,Machine can cutting Multi core into different length, The length drop is 0-200mm,stripping and crimping different terminal , you only need put the wire into machine fixture , Machine will cutting stripping and crimping different terminal automatically , This machine is usually used in the power cable process,which can greatly improve working efficiency and and save labor
Advantage :
1. Mitsubishi servo : 3 servo motors for the whole machine , so that the positions of wire feeding, peeling and crimping are very accurate

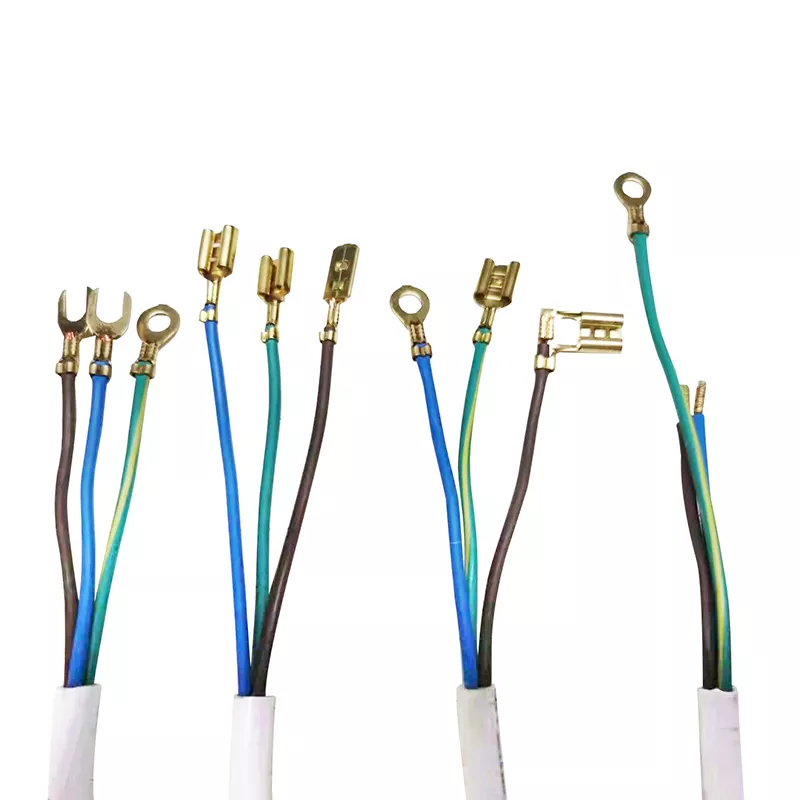

2. Applicable terminals: insulation ring Terminal ,87/250 terminal , flag terminal or pre-insulation Terminal ,horizontal terminal can be modified
3. English Touch screen operation, Cutting length and stripping length can directly setting on machine,Very easy to operate
4. Different cutting length : Machine can do different cutting length of Multi core ,The length drop is 0-200mm
|
Model |
SA-HT400 |
|
Capability |
4-core cable: 550-600pcs/h |
|
3-core cable: 800-900pcs/h |
|
|
Applicable wire range |
3-core or 4-core sheathed cable |
|
Cutting length difference |
0-200mm |
|
Cutting tolerance |
within ±0.1（0.1+0.005*L）mm, L=cutting length |
|
Stripping length |
0-15 |
|
Crimping force |
3T |
|
Crimping mode |
frequency converter drive, AC motor |
|
Power supply and air pressure |
3 phase 220V, 50/60Hz,0.5Mpa, 150(ANR)/min |
|
Dimensions |
L1500mm x W970mm x H1700mm |
