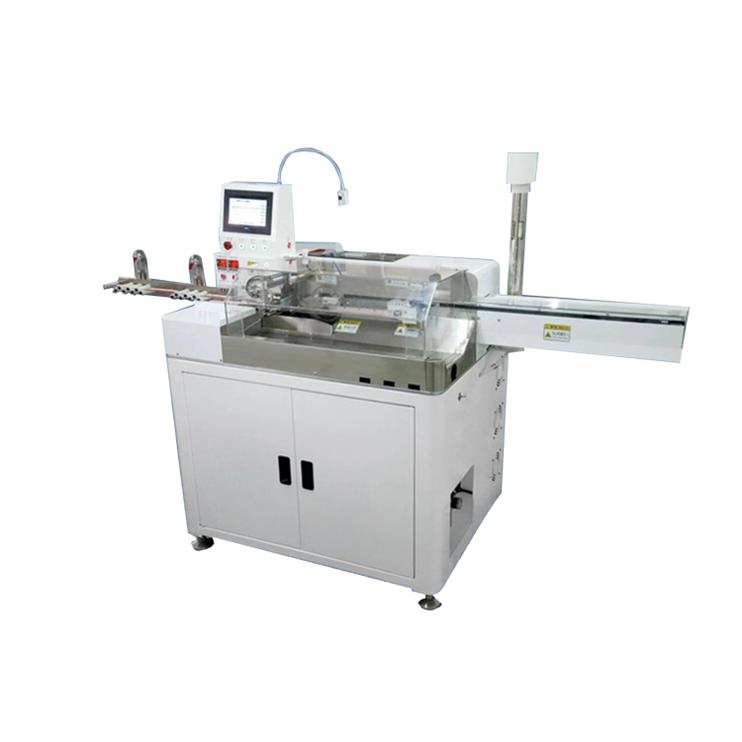

Automatic Wire Stripping Twisting and Tinning machine

  • Model:SA-TF8050

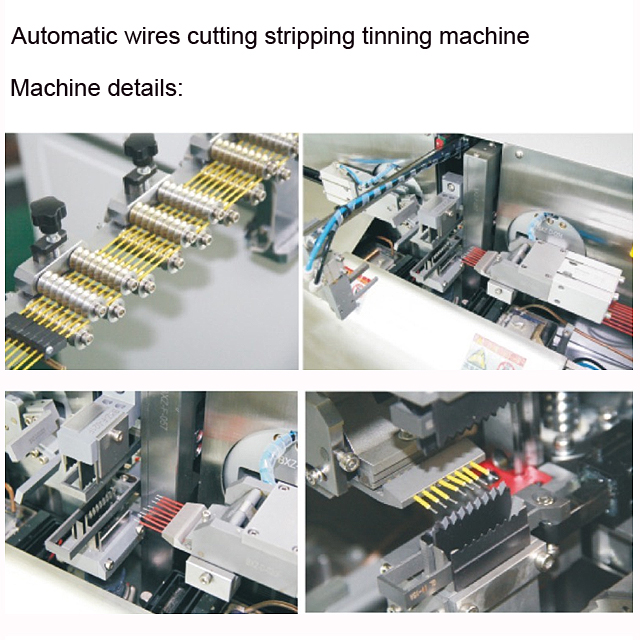

  • Description: The fully automatic wire stripping twisting and Tin Soldering machine ,our machine have stable quality, because use Japan servo motors ,Taiwang pneumatic cylinders and PLC contorl , It's able to process maximun 10 ingle wires at one time with very high speed
  • INQUIRY   EMAIL

The fully automatic wire stripping twisting and Tin Soldering machine ,our machine have stable quality, because use Japan servo motors ,Taiwang pneumatic cylinders and PLC contorl , It's able to process maximun 10 ingle wires at one time with very high speed , we can also customize the machine to process ribbon cables and multi -core flat cables , The soder wire can be fed to solder pots automatically , and soldering smoke eater can take out the tin smoke in time to ensure the working environment is good for health

Advantages:
1. Factory direct sales, excellent quality, computer touch screen English operation menu is easy to learn and use.
2. Using imported high-precision parts, stable performance.
3. The operation is simple, the length of the wire, the cutting speed, the time of immersion tin, and the number of times of tin dipping are completely touched by the touch screen, which realizes that some wires that are difficult to tin are dipped in tin.
4. Lead-free tin furnace meets high environmental protection standards; has an automatic tin scraping device, which makes the cut wire bright without tin residue; the tin scraping time can be set to make the tin loss reach the bottom; the tin is dipped at a 90 degree angle, and the tin mouth is even.

Model

SA-TF8050

Function

Full automatic wire strip twist and tin machine

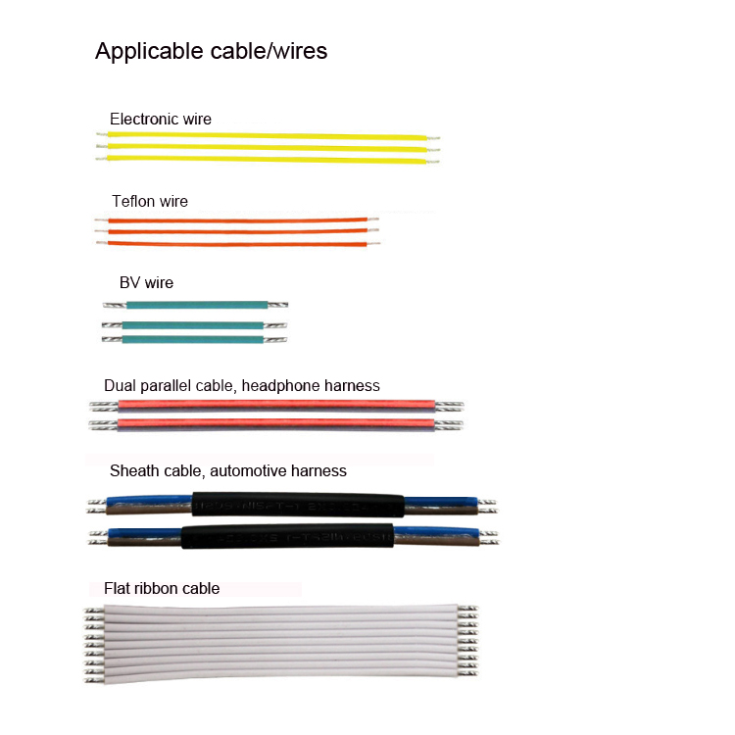

Wire range

AWG26#-AWG34#  can process 10 wire at one time, 12000PCS/H

AWG20#-AWG26#  can process 8 wire at one time,  9600PCS/H

AWG14#-AWG20#  can process 5 wire at one time    6000PCS/H

AWG8#-AWG14#  can process 3 wire at one time     3600PCS/H

Cutting length

10-1000mm(other sizes can be customized)

Cutting accuracy

Cutting accuracy ± 0.01MM , Stripping accuracy ± 0.01MM

Stripping length

0.1mm-15mm (other sizes can be customized)

Twisting length

0.1-15mm (other sizes can be customized)

Compressed air

0.5Mpa-0.7Mpa

Tool material

imported tungsten steel / high speed steel

Power supply

AC220V ≤ 50-60HZ (single-phase)

Dimensions

1120(L)*720(W)*1200(H)mm

Weight

350KG




Our Company

SUZHOU SANAO ELECTRONICS CO., LTD is a professional wire processing machine manufacturer, based on sales innovation and service. As a professional company, we have a large number of professional and technical personnel, strong after-sales services and first-class precision machining technology. Our products are widely used in electronic industry, auto industry, cabinet industry, power industry and aerospace industry.Our company provides you with products and services of good quality, high efficiency and integrity.Our commitment: with the best price and the most dedicated service and tireless efforts to make customers improve productivity and meet customers' needs.

Our mission: for the interests of customers, we strive to innovate and create the world's most innovative products.Our philosophy: honest, customers-centric, market-oriented, technology-based, quality assurance.Our service: 24-hour hotline services.You are welcome to call us. The company has passed ISO9001 quality management system certification , and has been recognized as municipal enterprise engineering technology center , municipal science and technology enterprise , and national high-tech enterprise .

FAQ

Q1: Are you a trading company or a manufactory?

A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !

Q2: What’s your guarantee or the warranty of the quality if we buy your machines?

A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q3: When can I get my machine after I paid?

A3: The delivet time is based on the exact machine you confirmed.

Q4: How can I install my machine when it arrives?

A4: All machine will be install and debug well before delivery . English Manual and operate video will be together send with machine . you can directly use when you got our machine . 24 hours online if you have any questions

Q5: How about the spare parts?

A5: After we deal down all the things , we will offer you a spare parts list for your reference.
