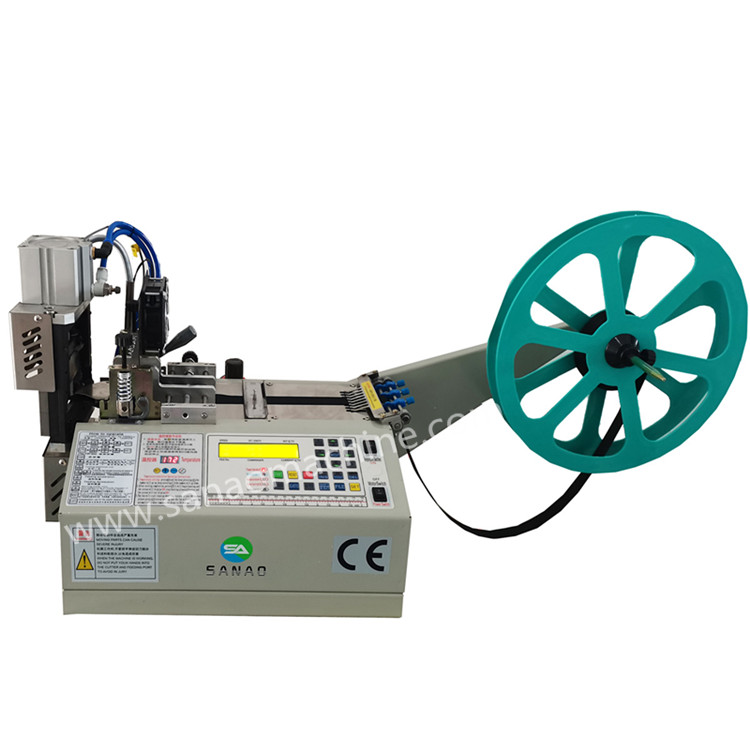

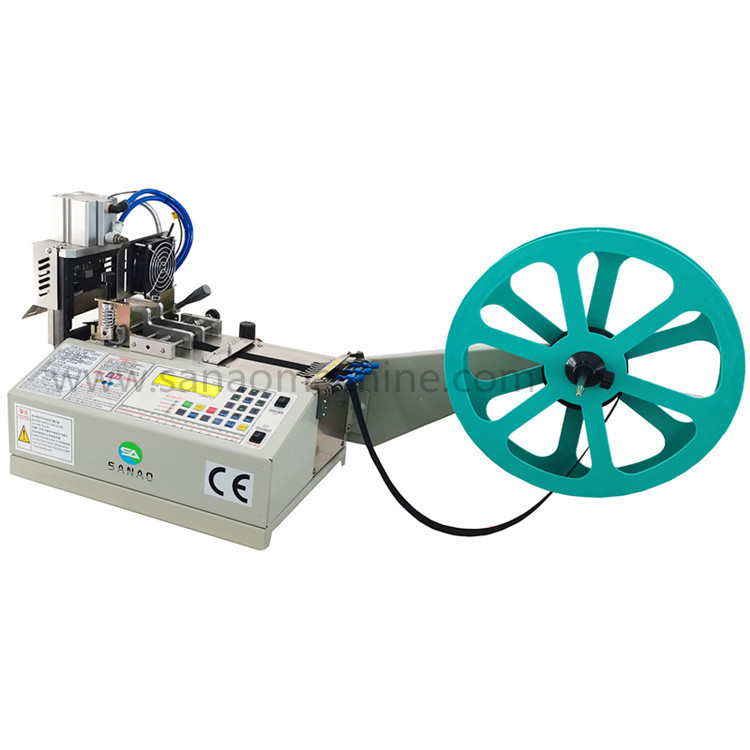

Automatic Angle Tape Cutting Machine

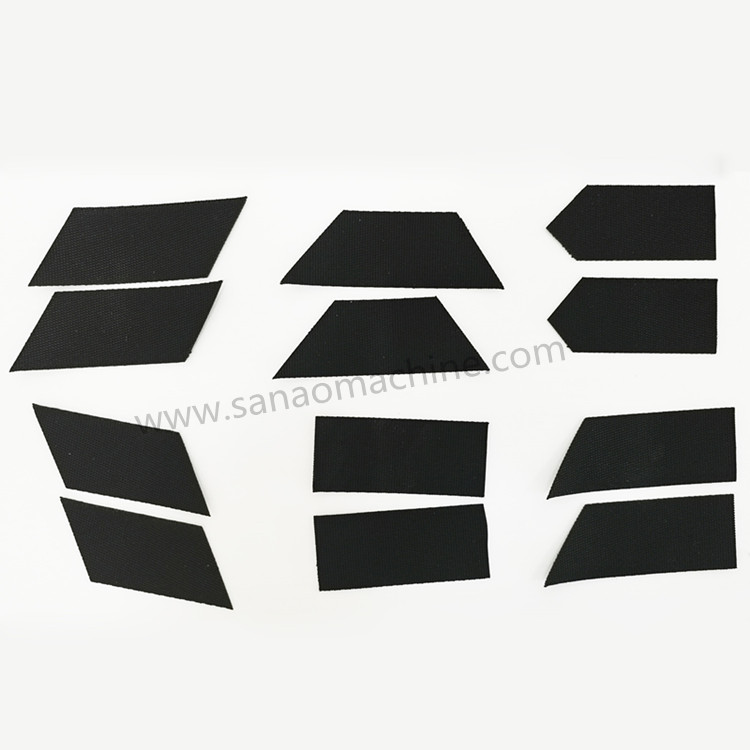

  • Description: The webbing tape cutting machine can cut 5 shapes , the width of the cutting is 1-45 mm,you can directly choose cutting shape and cutting angle on machine , The angle setting is very accurate, for example, you need to cut 41, Directly setting 41, very easy to operate.
  • INQUIRY   EMAIL


The webbing tape cutting machine can cut 5 shapes , the width of the cutting is 1-50 mm,you can directly choose cutting shape and cutting angle on machine , The angle setting is very accurate, for example, you need to cut 41°C, Directly setting 41°C, very easy to operate.

This digital tape cutting machine can set any cutting length to max 99999m according to your needs, it is very precise and the error is just 0.1mm; and the automatic nylon blet machine can cut several belts at the same time, it will greatly improve work efficiency and save labor costs and time.

Features:

1: Length, quantity, speed arbitrary adjustment.
2: No material automatic shutdown.
3: Automatic power save data.
4:English touch display. very easy to operate
5: The domestic brand stepper motor feeding, stable performance, precise length.
6: Before and after manual key feeding.
7: Precision calibration function.
8: Arbitrary angle adjustment of 45 degree-135 degree.
9: With a pause not cutting, send a set length cut.
10: Length compensation function.
11: Cutting point dynamic function.
12: The installation of independent research and development of intelligent temperature controller, with digital display function always grasp the quality of materials.

Model

SA-120CX

Cutting length

1-99999mm

Max. cutting width

Angle cutting Max.45MM . Straighter cutting 50MM .

Cutting speed

100-120 pcs/min

Power Supply

110/220VAC,50/60Hz

cutting type

cold  and cold cutting  Cutting Machine

Application

labels, webbings, ribbons, elastic bands, narrow woven fabrics, belts, straps and much more
