Servo motor hexagon crimping machine for tubular cable lugs

Model	SA-30T	SA-50T
Crimping force	30T	50T
Stroke	30mm	30mm
Crimping range	2.5-95mm2	2.5-300mm2
Capacity	600-1200pcs/h	600-1200pcs/h
Operate mode	Touch screen,mould auto adjust	Touch screen,mould auto adjust
Start mode	Manual/Pedal	Manual/Pedal
Power rate	2300W	5500W
Power	220V	380V
Machine Dimension	750*720*1400mm	750*720*1400mm
Machine weight	340kgs	400kgs

1.Introducing the 30T Servo Motor Power Cable Lug Terminal Crimping Machine - your ultimate solution for efficient and streamlined crimping operations. This state-of-the-art machine boasts of the latest in technological advancements, offering you unparalleled precision and accuracy.Powered by servo motor, the machine outputs force through a high-precision ball screw, making it perfect for large square tubular cable lugs crimping. The machine's stroke is 30mm, and it can accommodate cable lugs with a maximum size of 95mm2.

2.Unlike traditional crimping machines, the 30T Servo Motor Power Cable Lug Terminal Crimping Machine distinguishes itself by its easy-to-operate and user-friendly interface. Simply set the crimping height for different sizes, and the machine does the rest. There's no need to change the crimping mold, making the process more efficient and streamlined

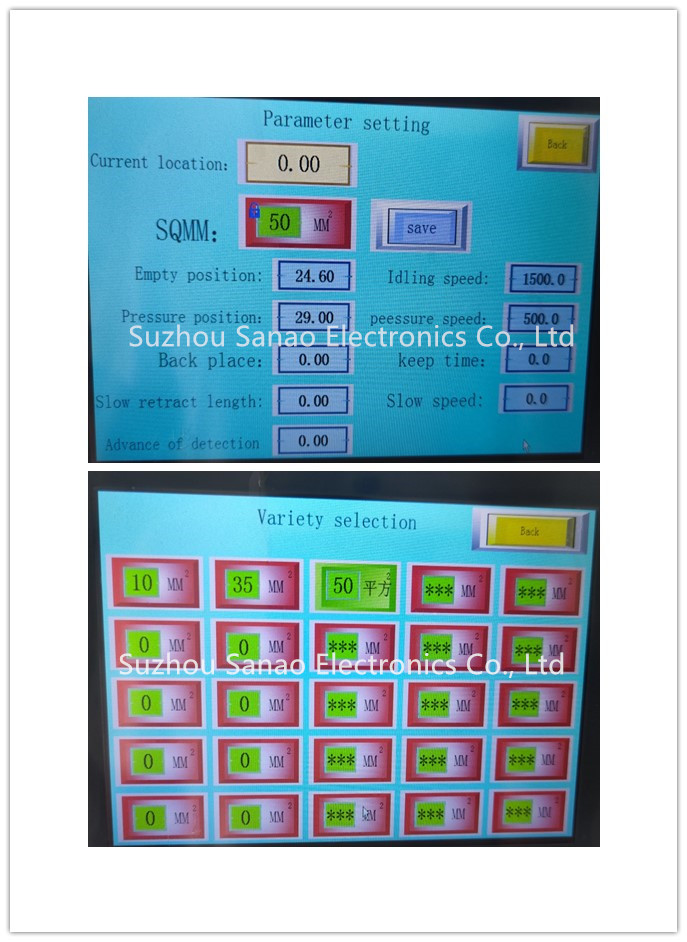

3.Color touch screen operation interface , parameter setting is intuitive and easy to understand , crimping position can be directly setting on display . Machine can save program for different products, Next time ,directly choose the program directly to produce.

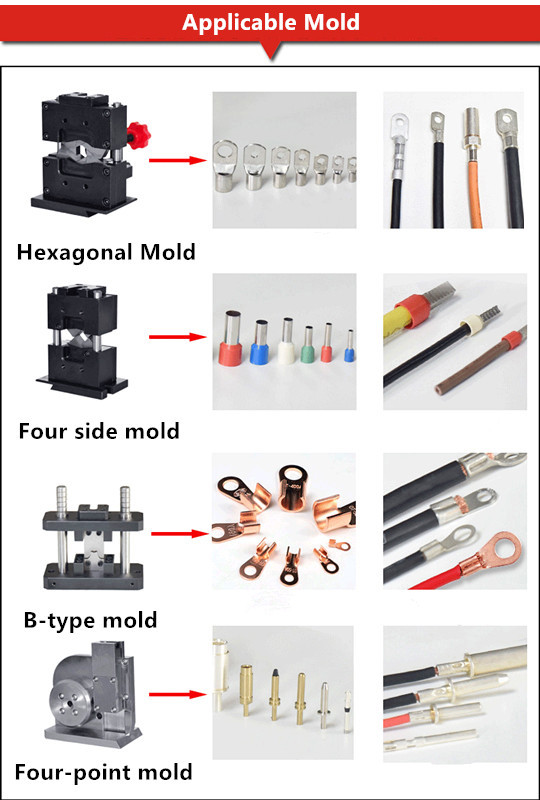

4.Furthermore, the machine offers support for hexagonal, quadrilateral, and M-shape crimping mold, catering to a wide range of crimping needs. The color touch screen operation interface offers an experiential advantage, showcasing an easy to use programming feature. Here, you can input parameters such as processing time, crimping force, and a lot more.

The 30T Servo Motor Power Cable Lug Terminal Crimping Machine is built with durability and longevity in mind. It is made from high-quality materials, ensuring that it withstands the test of time, and is sure to meet all your crimping requirements.

In conclusion, if you're looking for a cutting-edge, easy-to-use, efficient, and reliable crimping machine that gives you unparalleled precision and accuracy, look no further than the 30T Servo Motor Power Cable Lug Terminal Crimping Machine!
