How to operate automatic tube cutting machine with spliting function


Aututomatic Corrugated Tube Cutting Machine

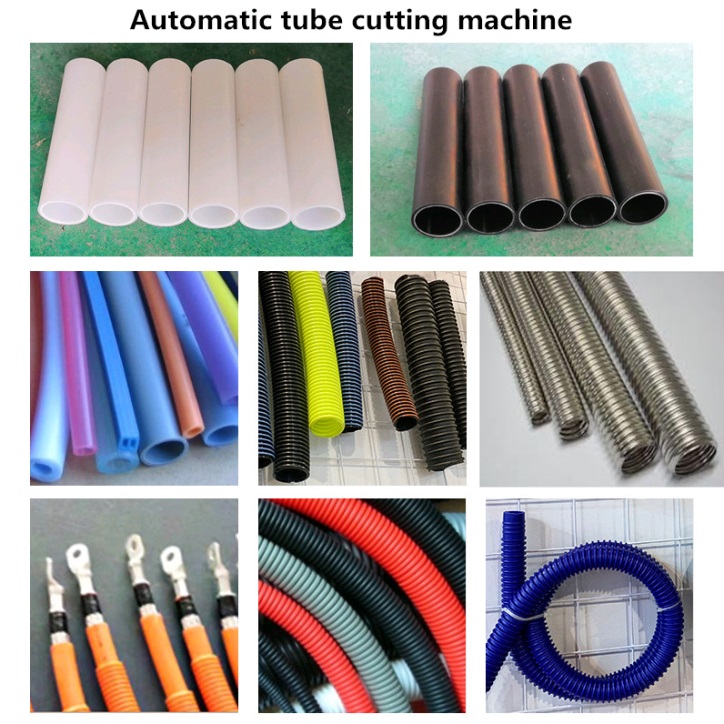

High precision corrugated tube cutting machine, It’s popular with customer because of perfect cutting effect and stable quality,It is widely used for cutting shield hose, steel hose, metal hose, corrugated hose , plastic hosePA PP PE Flexible Corrugated Pipe.

Features:

1.Specially designed for the corrugated pipe processing of the automotive wire harness industry, high-precision PLC control, easy to understand.

2.Can be used for round plastic round tube, bellows cutting, high processing efficiency, stable and reliable.

3.Feeding with stepper motor, it has the characteristics of stable feeding and accurate length. The circuit uses integrated circuits for stable control and simple maintenance.

4.It's widely used in Highways,Bridges,Railways, Lightrail,Car, Transportation,Electrical,Monitoring equipment,Under ground cable protection,Connect machine controls,All area of protection for insulated electrical cables and wires,ect.

Model

SA-BW60

SA-BW32

Power

220V 50-60HZ

220V 50-60HZ

Rated Power

500W

500W

Cutting diameter

ø5-60mm

ø5-32mm

Cutting tolerance

±0.5% cutting off length

±0.5% cutting off length

Cutting speed

10-60 pcs/min (depending on the length)

10-60 pcs/min (depending on the length)

Dimension

85 x 70 x 68cm (L x W x H)

85 x 70 x 68cm (L x W x H)

Weight

96KG

96KG
