How to operate multicore cutting and stripping machine


Product Description

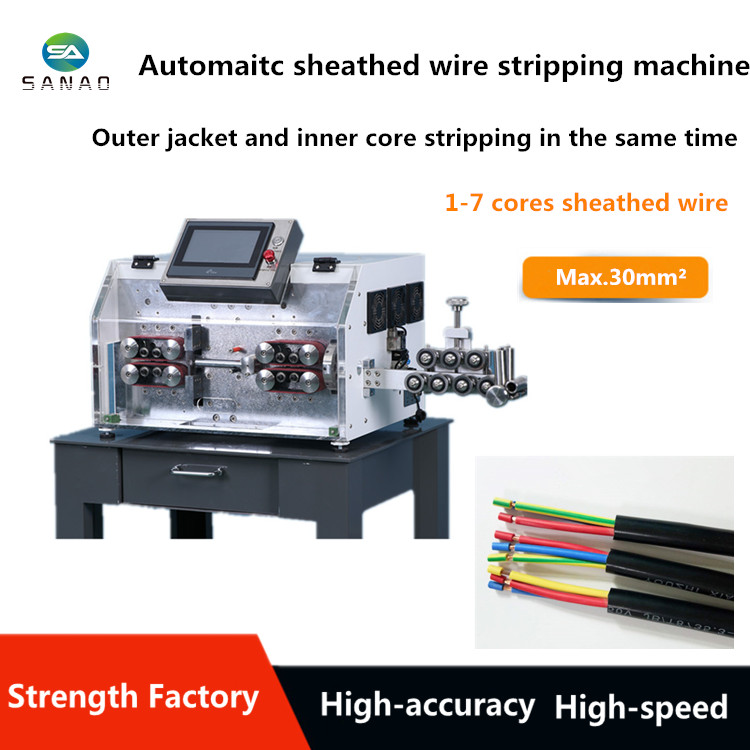

The SA-AH03 is designed for multi-cores cable full-automatic cutting and stripping both jacket and inner cores. It supports max 7 cores sheathed cable processing.Our machine Collection and integration,the microcomputer automatic  computer for the strip line machine is a kind of introduced in Japan, Taiwan, and other advanced automation technology of all of the numerical control equipment.

Advantage:

* Drive mode: 16-wheel drive (silent hybrid stepper motor, servo tool holder)
* Belt feeding wires, no embossing and scratches
* Fully automatic cutting and peeling wires and cables
* Being able to stripping outer skin and inner core skin of multi-core jacket cables simultaneously
* Head stripping: the sheathed wire completely falls off 10-120mm, the core wire completely falls off 1-120mm
* Tail stripping: the sheathed wire completely falls off 10-240mm, the core wire completely falls off 1-240MM


Model
SA-AH03
SA-AHT3
Wire range
6-30mm²
0.1-10mm

Stripping Length
Outer:Head 20-120mm; Tail 20-240mm inner:Head 1-120mm; Tail 1-240mm
Jacket 20-150mm; Inner wire head 3-10mm, tail 3-30mm
Max.conduit dia
16mm
10mm
Length accuracy
±(0.002*L)mm
±(0.002*L)mm
function
stripping sheathed and inner core cable
stripping sheathed and inner core cable
