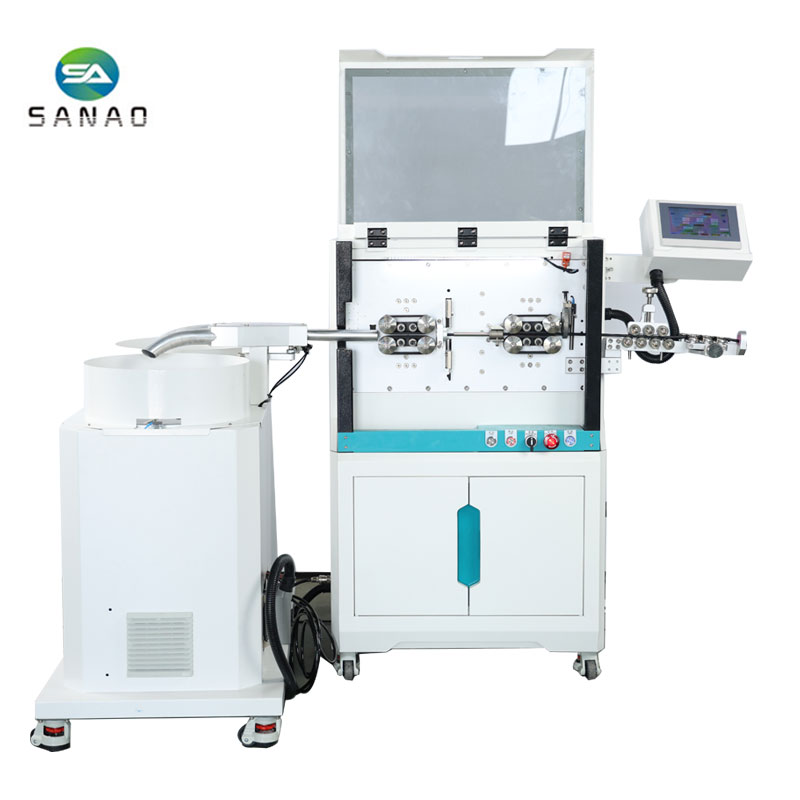

Automatic wire stripping and cutting machine with coil Function

SA-FH03-DC
Description: SA-FH03-DC is an automatic wire stripping machine with coil function for longt wire ,For example, cutting length up to 6m, 10m, 20m, etc.The machine is used in conjunction with a coil winder to automatically coil the processed wire into a roll, suitable for cutting, stripping and collecting long wires.It’s Can strip outer jacket and inner core at the same time, or turn off the inner core stripping
INQUIRY EMAIL

Model	SA-FH03-DC
Conductor Cross-Section	0.75-30mm² （Or outer diameter less 14MM sheathed cable )
Cutting Length	1-99999mm
Cutting Length Tolerances	≤(0.002*L) mm
Jacket Stripping Length	Head 10-120mm; Tail 10-240mm
Inner Core Stripping Length	Head 1-50mm; Tail 1-50mm
Conduit Diameter	Φ16mm
Production Rate	Single wire :2300pcs/h
Production Rate	Sheath wire :800pcs/h (base on wire and cutting length)
Display Screen	7 inch touch screen
Drive Method	16 wheels drive
Wire Feed Method	Belt feeding wire, no indentation on cable
