Wire stripping bending machine

  • BV Hard wire stripping bending machine
  • BV Hard wire stripping bending machine
  • BV Hard wire stripping bending machine
BV Hard wire stripping bending machine BV Hard wire stripping bending machine BV Hard wire stripping bending machine

BV Hard wire stripping bending machine

  • Model :SA-ZW3500
  • Description: SA-ZA3500 Processing wire range: Max.35mm2, Full automatic wire stripping, cutting and bending for different angle ,Clockwise and counterclockwise, adjustable bending degree, 30 degrees, 45 degree, 60 degrees, 90 degrees. positive and negative two bending in one line.
  • INQUIRY   EMAIL


SA-ZA3500 Processing wire range: Max.35mm2, Full automatic wire stripping, cutting and bending for different angle ,Clockwise and counterclockwise, adjustable bending degree, 30 degrees, 45 degree, 60 degrees, 90 degrees. positive and negative two bending in one line.

Introduction:

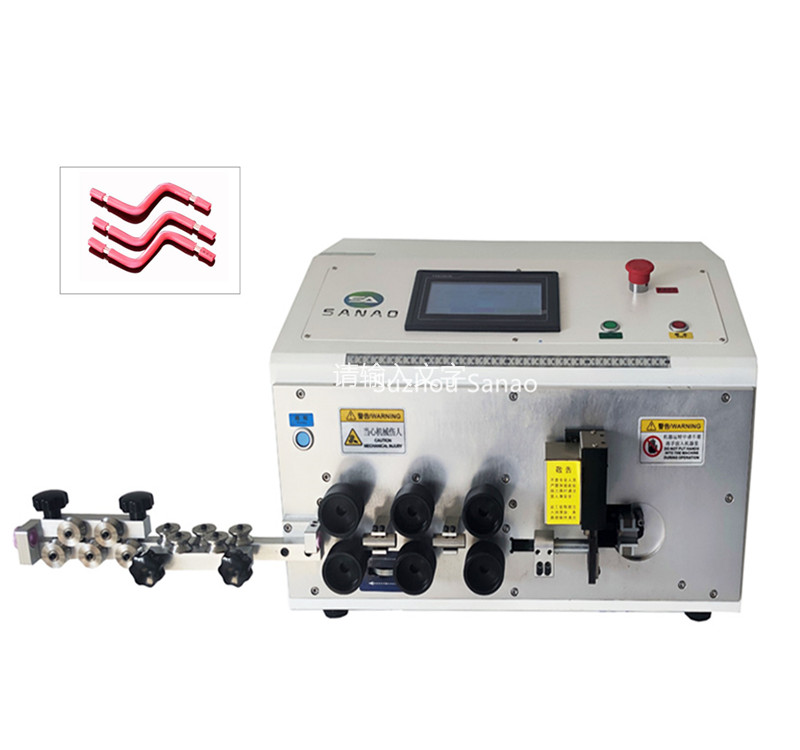

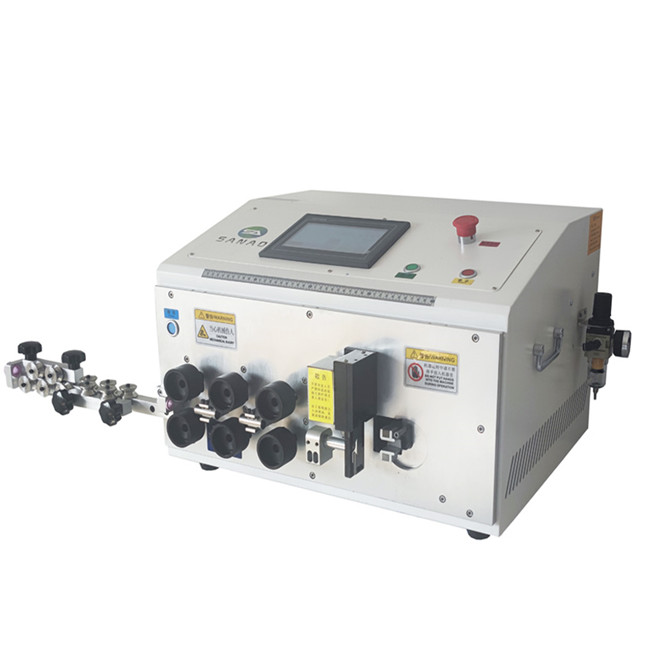

1. Compared to the current machines on the market with single head peeling and button boards, our biggest difference of this device is that Our bending machine has a 7-inch touch screen operation, PLC control, silver linear slide rail, and precision pneumatic pressure regulating wheel. It is more intelligent and has more complete functions, and can be stripping at both ends. The angle and bending length can be Free adjusted on display, Very easy to operate .

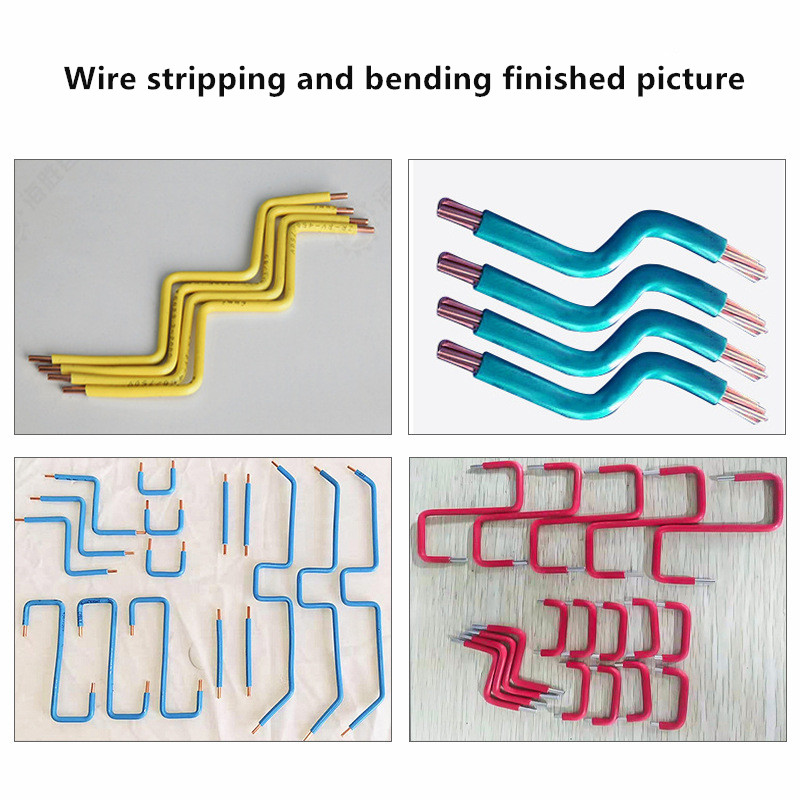

2. The consistency of bending is good, which improves work efficiency.Suitable for producing jumpers for electric control cabinets, bent wires for meter boxes, positive and negative jumpers for connector, etc

3.Color touch screen operation interface , parameter setting is intuitive and easy to understand , parameters such as cutting length , stripping length , twisting force , and crimping position can be directly setting one display . Machine can save program for different products, Next time ,directly choose the program directly to produce.

Model

SA-ZW2500

SA-ZW3500

Conductor cross-section

2- 25mm²

4 - 35 mm²

Cutting length

0.1mm-99999.9mm

0.1 - 99,999.9 mm

Head Stripping length

0 - 50 mm

0- 50 mm

Stripping length (side II)

0 - 25 mm

0 - 20 mm

Bending angle

0 - 180°(changeable within the range)

0 - 180°(changeable within the range)

Maximum bending steps

20 (can be customized for more steps)

20 (can be customized for more steps)

Blade material

Imported tungsten steel

Imported tungsten steel

Productivity

1000 - 2000 pcs./h

1000 - 2000 pcs./h

Power supply

110, 220 V (50 - 60 Hz)

110, 220 V (50 - 60 Hz)

Dimension

600mm*550mm*450mm

600mm*550mm*450mm
