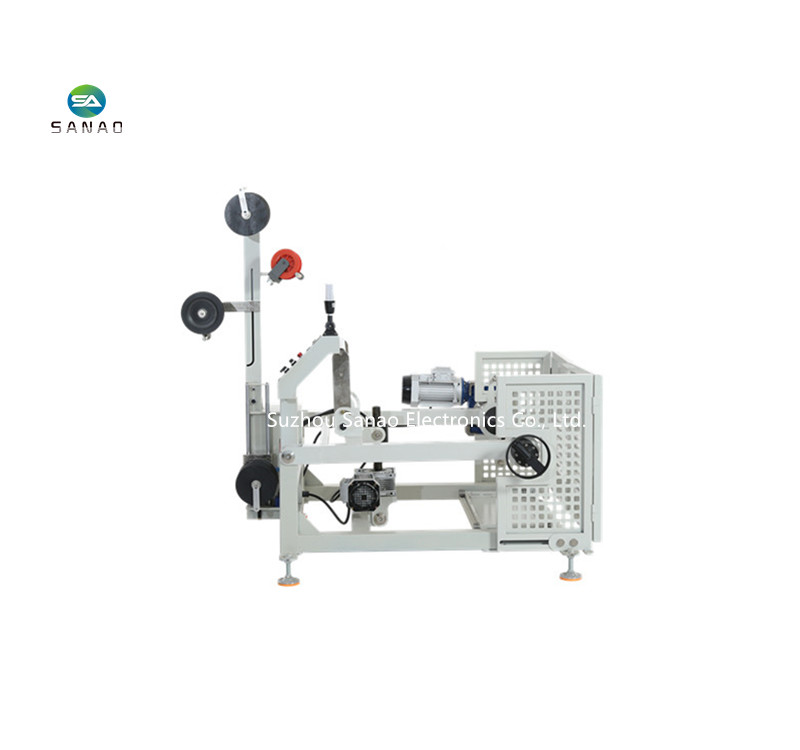

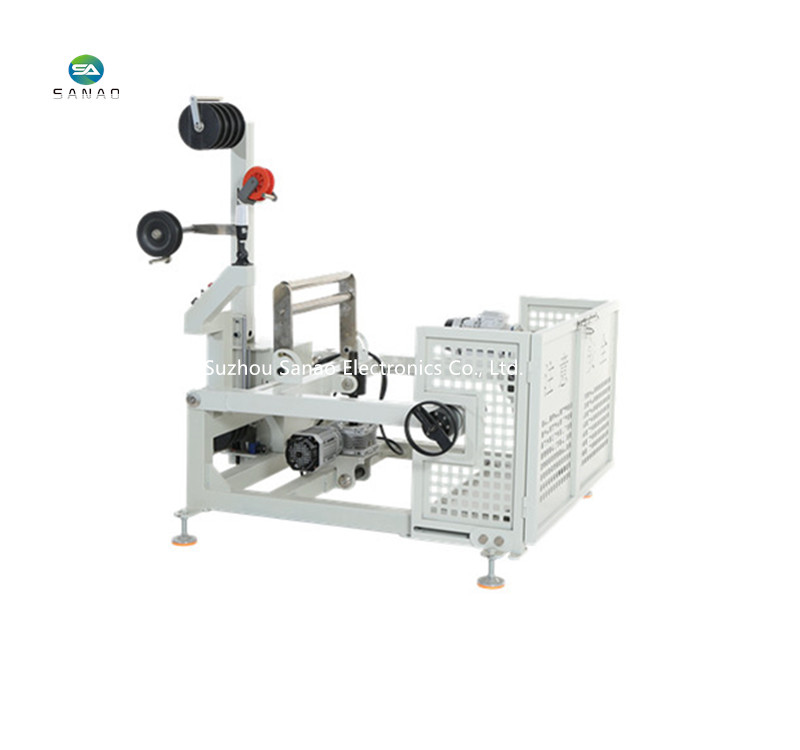

The Pre-feeder is a highly dynamic pre-feeding machine, which has been developed to feed cable and wire gently to automatic machines or other wire harness process machinery. Due to the horizontal structure and pulley block design , this prefeeder works very stable and has large wire accumulation capacity
Feature
1.The frequency converter controls the pre-feeding speed. It is suitable for various wires and cables.
5.can cooperate with any kind of automatic machine to feed the wire. Can Automatically cooperate with wire stripping machine speed
3.Applicable to various types of electronic wires, cables, sheathed wires, steel wires, etc.
4. Max Load weight: 1000KG
|
Model |
SA-AF300 |
SA-AF800 |
SA-AF815 |
SA-AF820 |
|
Available Wire Diameter |
10-120mm2 |
10-120mm2 |
10-185mm2 |
10-185mm2 |
|

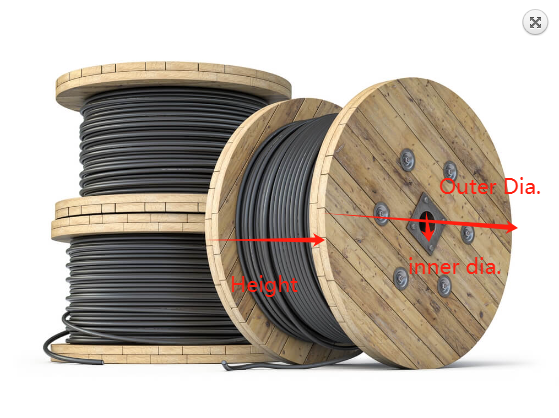

Available Spool Diameter |
400-800MM |
500-1000MM |
800-1500MM |
800-1200MM |
|
Spool width |
350-550MM |
400-800MM |
450-900MM |
450-900MM |
|
Spool inner diameter |
40MM |
53-85MM |
53-85MM |
53-85MM |
|
Max Load Weight |
300kg |
1000kg |
1000kg |
2000kg |
|
Power Supply |
2370W |
3000W |
3000W |
5000W |
|
Power Supply |
380V |
380V |
380V |
380V |
|
Available Wire |
Wire, cable etc. |
Wire, cable etc. |
Wire, cable etc. |
Wire, cable etc. |
|
Drive Type |
Inverter & motor & reducer |
Inverter & motor & reducer |
Inverter & motor & reducer |
Inverter & motor & reducer |
|
Dimensions |
1700x1300x1200mm |
1650x1800x1600mm |
2100x1900x1500mm |
1650x1800x1600mm |
