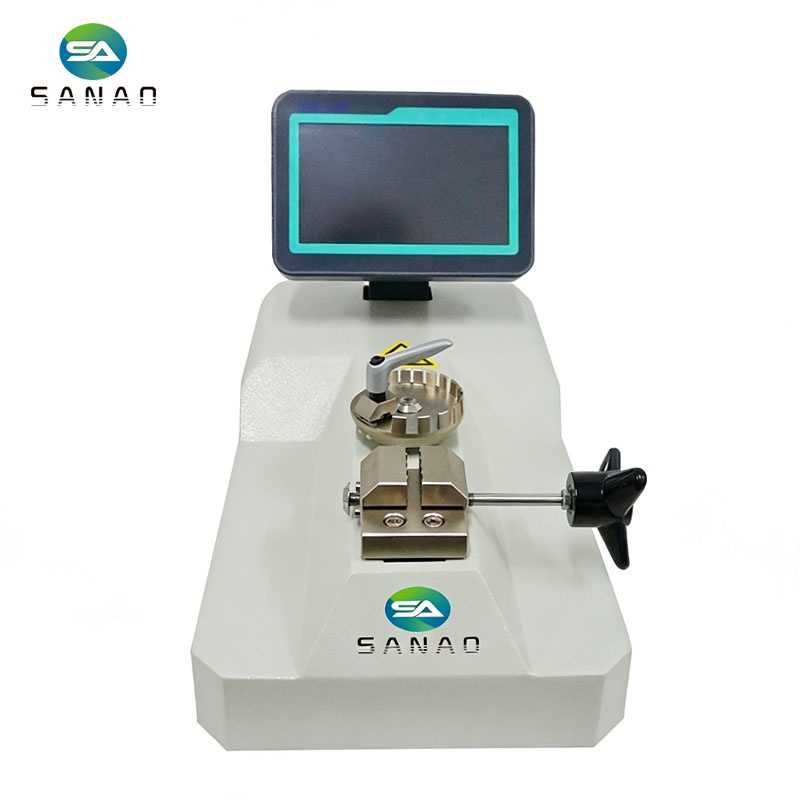

Cable Terminal Tensile Testing Machine Wire Pull Force Tester

  • SA-1000EN
  • Description: SA-1000EN is a digital tension test equipment, used for crimping terminal tension, welding terminal tension and waterproof bolt tension test, can be connected to the PC end of the operating system to make the test data, report, record.
  • INQUIRY   EMAIL

Model :SA-1000EN

NO.1 12 kinds of terminal measurement detents plus special collets meet the requirements of various types of measurement clamping.

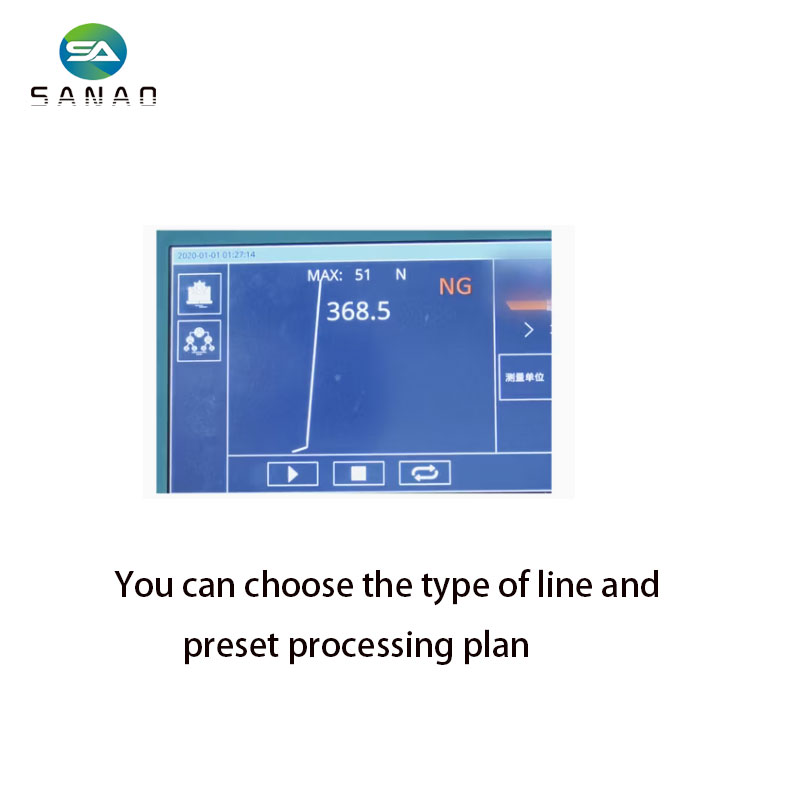

NO.2 Real time display of tension curve, simple and intuitive.

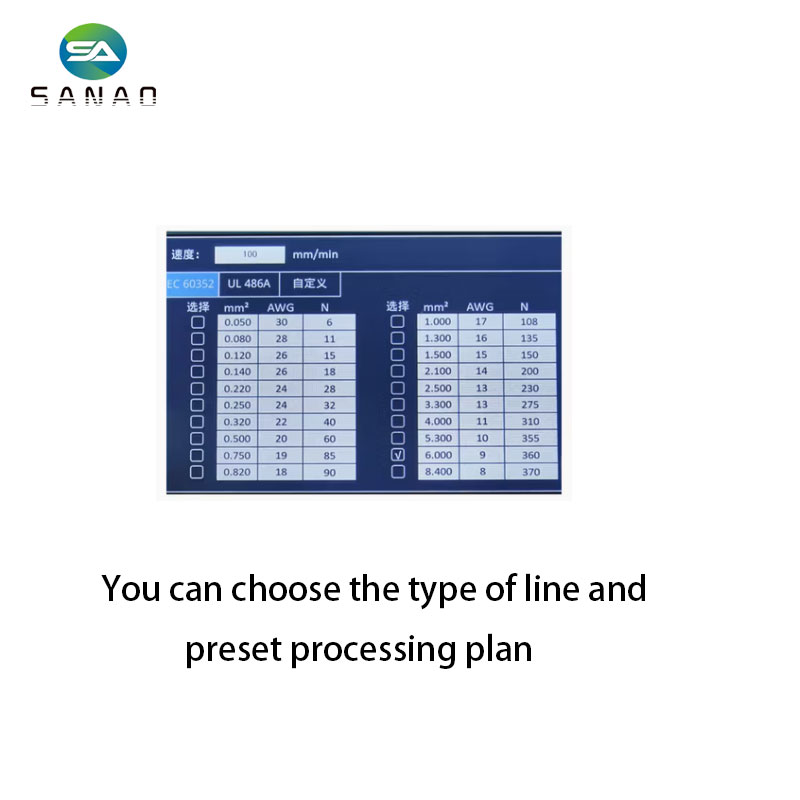

NO.3 Built-in international standard IEC60352, UL486A standard wire diameter force value library.

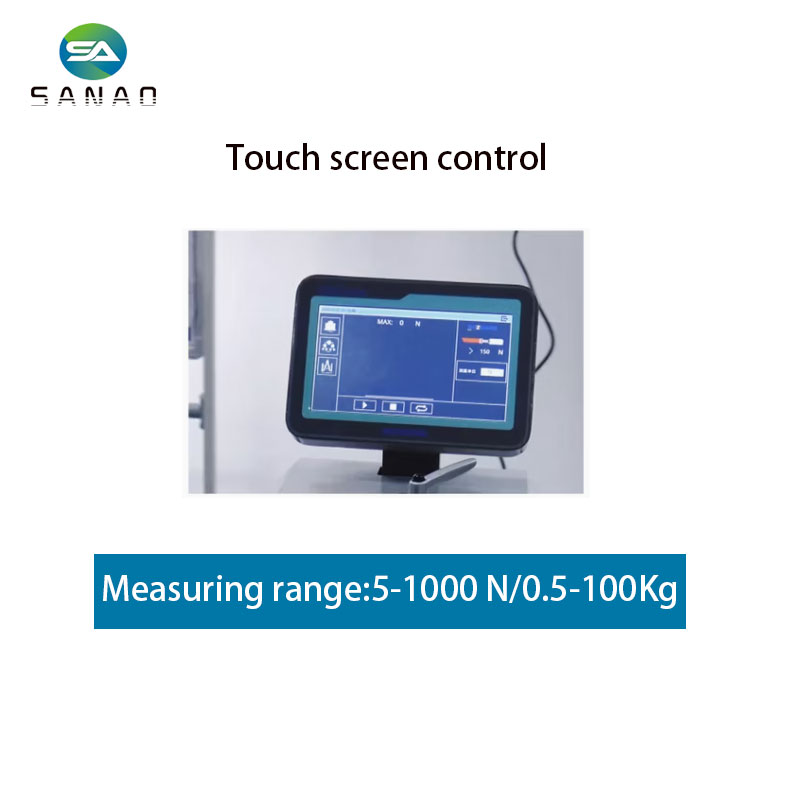

NO.4 Equipped with 7 inch industrial touch screen, make the operation faster.

 Model    SA-1000EN
 Measuring range     5-1000 N / 0.5-100Kg
    Units     N / KG / lb
    Accuracy     ±1%
    Interface     Data transmission: RS232
    Measuring speed     MAX 500 mm/min
    Power     AC110- 240V 50/60Hz
    Stroke     60mm
    Weight     10kg
    Dimension     450*235*300mm
