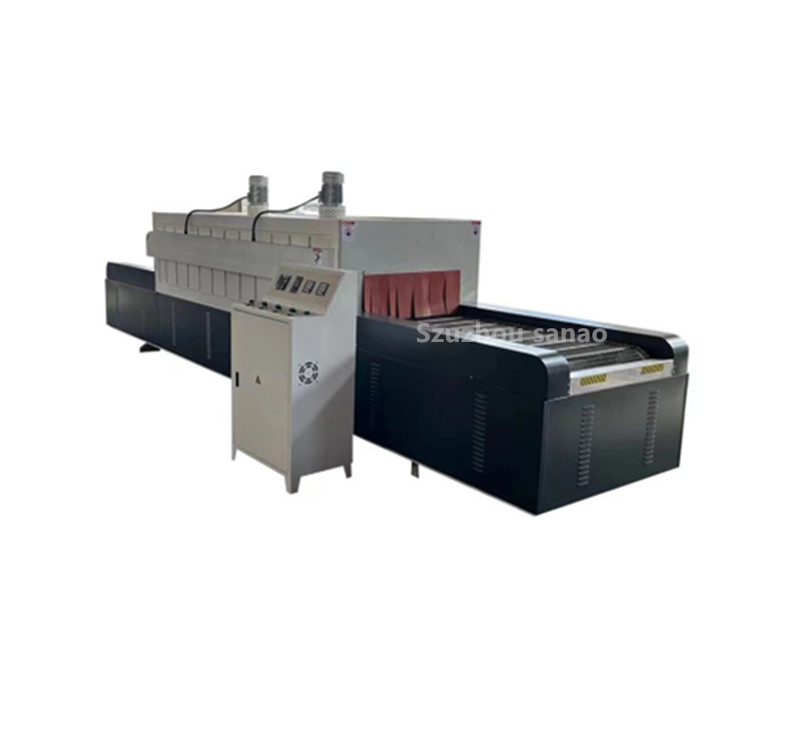

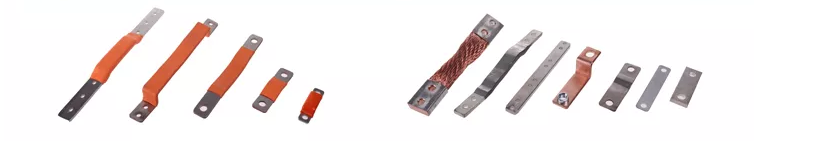

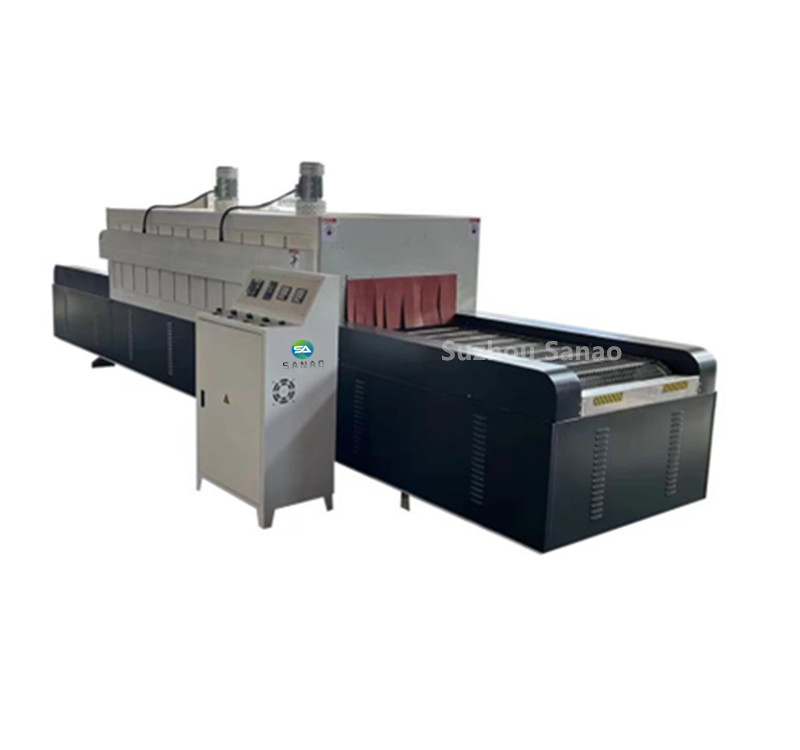

The busbar heat shrinkable sleeve baking equipment is made of stainless steel. The high temperature area has a large space and a long distance. It is suitable for batch production, and can also meet the requirements for baking the heat shrinkable sleeves of special large size buses. The work pieces processed by this equipment have the same appearance, beautiful and generous, without bulge and scorch.
The original use of open flame and a large number of manpower are eliminated. It only takes 2~3 people to use this equipment to completely produce 7~8 tons of copper bars per day.
In the electrical part, the digital display intelligent PID temperature controller is used to set the temperature freely, automatically control, and achieve high sensitivity temperature difference control through the contact less relay SSR (SCR). Automatic control and insulation when the set temperature is reached. Multiple layers of protection are combined to ensure the safety and reliability of use.
Use customized high temperature resistant long shaft motor and powerful multi wing blades to evenly distribute indoor temperature, quiet and low noise, and save energy
Model
SA-BH3000
Name
Automatic busbar tubing heating machine
Working room size (W x H x L)
800x300x3000mm
Overall dimensions (W x H x L)
1400x1450x6000mm
Length of feeding area
1500mm
Length of discharging area
1500mm
Length of Heating area
3000mm
Temperature range
RT+300 ℃
Temperature accuracy
≤± 1 ℃
Temperature uniformity
≤± 5 ℃
Heating power
36kw
Inner box material
stainless steel 1.2mm thick
Outer box material
cold plate thickness 1.5mm Thermal
insulation material
ceramic fiber thermal insulation cotton
Conveyor mesh belt
stainless steel 304, conveyor chain 38mm, plus stainless steel mesh belt, material: 304 stainless steel
Conveying speed
0-10m/min adjustable (variable frequency speed regulation)
Conveying drive
0.37kw horizontal reduction motor
Inlet and outlet baffles
200mm high temperature resistant soft curtain
Insulation layer
thickness ≥ 120mm
