Automatic Tape wrapping machine

  • Automatic Film tape taping wrapping machine
  • Automatic Film tape taping wrapping machine
Automatic Film tape taping wrapping machine Automatic Film tape taping wrapping machine

Automatic Film tape taping wrapping machine

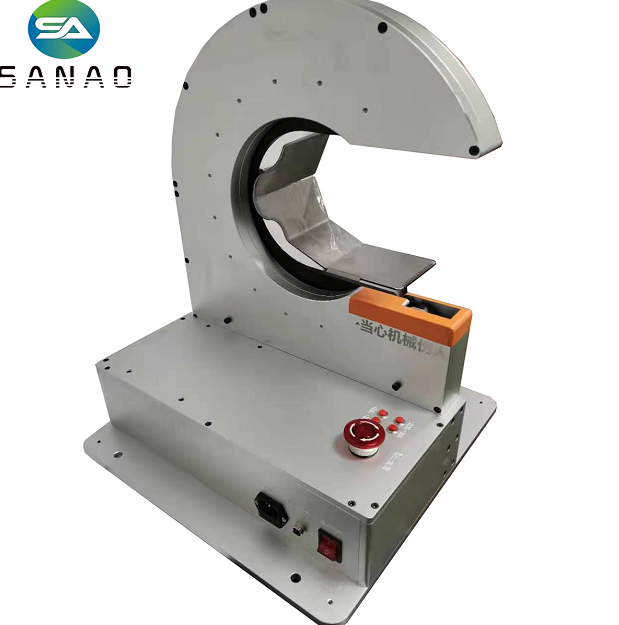

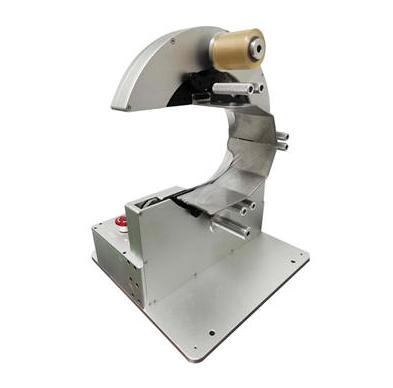

  • Model :SA-SF20
  • Description: Full automatic tape winding machine is used for professional wire harness wrap winding,The tape including Duct Tape, PVC tape and cloth tape ,It is used for marking, fixing and protection ,Widely used in automotive, aerospace,industries.For the wire and complex  forming, provides automated placement and winding.It not only can guarantee the high quality of the wiring harness, but also good value.
  • INQUIRY   EMAIL

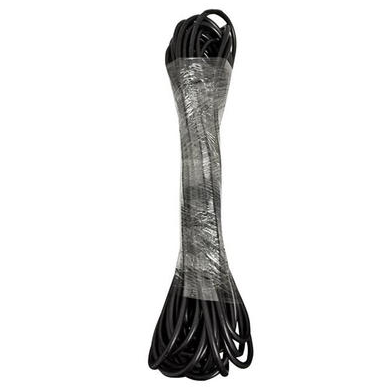

Full automatic tape winding machine is used for professional wire harness wrap winding,The tape including Duct Tape, PVC tape

and cloth tape ,It is used for marking, fixing and protection ,Widely used in automotive, aerospace,electronics industries.For the

wire and complex forming, provides automated placement and winding.It not only can guarantee the high quality of the wiring harness,

but also good value.

1.tape materials without release paper, such as Duct Tape, PVC tape and cloth tape, etc.

2.Flat, no wrinkles, the winding of the cloth tape is overlapped with the previous circle by 1/2

3.Switch between different winding modes: point winding at the same position, and spiral winding at different positions

4.Semi-automatic winding Available to custom lap and speed settings and has the output display Blades can be quickly replaced

Model

SA-SF10

SA-SF20

Available Wire Dia

8-35mm

8-150mm

Tape Width

10-25mm

10-45mm

Tape Roll OD

Max. 90mm

Max. 90mm

Wrapping Speed

Manual control

Manual control

Power Supply

110/220VAC,50/60Hz

110/220VAC,50/60Hz

Dimensions

33*18*15cm

33*18*15cm

Weight

4kg

10kg
