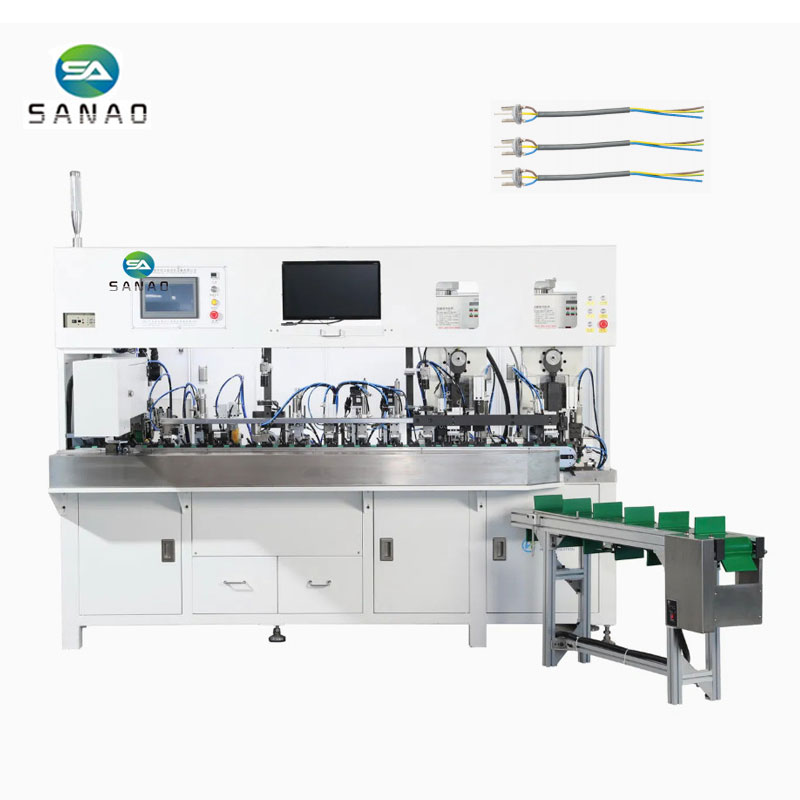

Fully Automatic Crimping Machine for Euro Plug Inserts

SA-PC3800
Description: SA-PC3800 This is a automatic Power cable Cutting and Outer jacket stripping inner core stripping and 2 Pin 3 Pin Plug Insert Crimping Machine for Euro Standard Plug Crimping Machine. Plug type: The machine can be equipped with a national standard three plug, French plug, UK plug, Brazilian three plug, American three plug, Australian three plug and other three plug or two plug Socket Inserts.
INQUIRY EMAIL

SA-PC3800

· High precision and productivity solutions for wire cable crimping.

· This type of mahine set drawing length, cutting, stripping, riveting three types of terminals in one machine.

· Save four stations than the traditional way of work, save manpower, stable quality, safe and simple operation, high efficiency.

Model	SA-PC3800
Power supply voltage	AC380V/50Hz
Air source pressure	0.5-0.8MPa
Output	1300-1400PCS/hour Wire length within 2 meters
Yield	99%
Tail end requirements	Stripping size 15-400mm CNC adjustable
Head end requirements	Stripping size 24-30mm (Copper wire is set by CNC according to crimping requirements, and the terminal can be made into mold blades according to the types of plugs in various countries)
Floor size	Including power pay-off rack (approximately) L2500MM * W7000MM * H2000MM
Management can be saved	2-3 people
Pedal control	N/A
