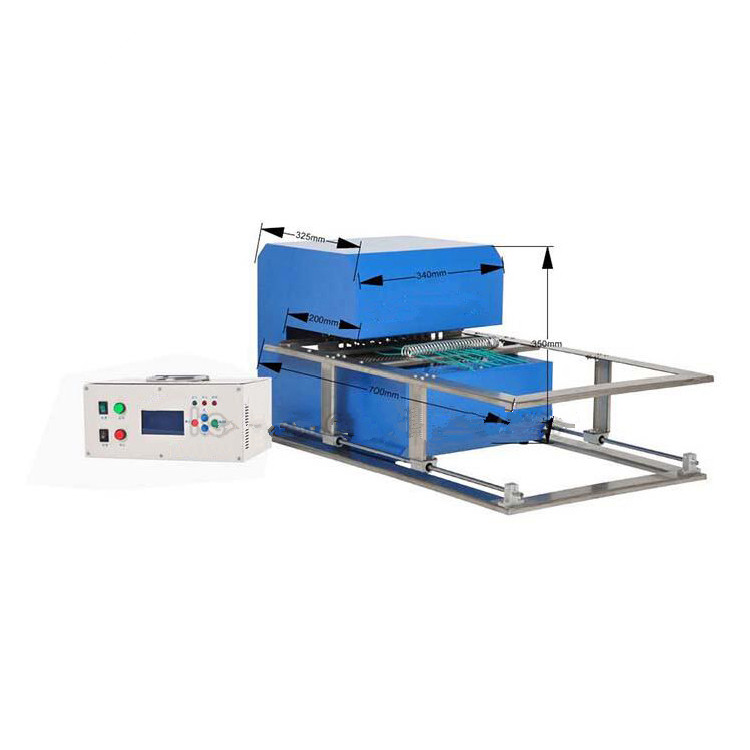

SA-300E-2,double side heat shrinkable tube heating machine,suitable for heating shrinkage of heat shrinkable tubes in wire harness processing enterprises, adjusting temperature according to the requirements of the production process,the working state is displayed by liquid crystal display,4 sets of heating procedures are set up randomly, and one side or double side heating is optional. The width of heating zone is adjustable.Contraction time is short,can heat shrinkable tubes for any length, can work continuously for 24 hourswithout interruption,Power is adjustable,there is anomni-directional reflective thermal material in it, so that the heat shrink pipe is heated evenly.
Characteristics:
Equipment composition
Heating system + control system + wiring harness support system
The working state is displayed by liquid crystal display
The working temperature, output power and heating program are shown by digital display.
Set up 4 sets of heating program, random call
The heating time, heating output power and stopping time of the heat shrinkable tube can be set freely according to the users' requirements, and can be called randomly.
One side or double side heating is optional
According to the heating requirements of the heat shrinkable tube, it is free to choose one side or two side heating.
The width of heating zone is adjustable
The width of the heating zone can be adjusted by the user according to the size of the heat shrinkable tube, save energy as much as possible and ensure the wire do not be hurt.
Heat insulation design of heating zone
The double shell design of heating area makes the inside and outside temperature separate, that is to save energy and protect the working environment
Model |
Item |
parameter |
size |
Overall machine size(L×W×H) |
400×340×350mm |
Control power(L×W×H) |
200×150×200mm |
|
Heating area(L×W) |
300×200mm |
|
Heating width |
200mm |
|
Maximum wire beam heating length |
160mm |
|
Maximum wire beam heating diameter |
25mm |
|
wiring harness support |
Material |
Stainless steel |
Maximum heating quantity |
1-16 roots (according to wire diameter) |
|
Transport mode |
Manual parallel movement |
|
Heatingpipe |
Heating pipe name |
Infrared radiant tube |
Heating pipe power |
1800W |
|
Power Supply |
Power demand |
220V |
Our Company
SUZHOU SANAO ELECTRONICS CO., LTD is a professional wire processing machine manufacturer, based on sales innovation and service. As a professional company, we have a large number of professional and technical personnel, strong after-sales services and first-class precision machining technology. Our products are widely used in electronic industry, auto industry, cabinet industry, power industry and aerospace industry.Our company provides you with products and services of good quality, high efficiency and integrity.Our commitment: with the best price and the most dedicated service and tireless efforts to make customers improve productivity and meet customers' needs.
Our mission: for the interests of customers, we strive to innovate and create the world's most innovative products.Our philosophy: honest, customers-centric, market-oriented, technology-based, quality assurance.Our service: 24-hour hotline services.You are welcome to call us. The company has passed ISO9001 quality management system certification , and has been recognized as municipal enterprise engineering technology center , municipal science and technology enterprise , and national high-tech enterprise .
FAQQ1: Are you a trading company or a manufactory?
A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !
Q2: What’s your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q3: When can I get my machine after I paid?
A3: The delivet time is based on the exact machine you confirmed.
Q4: How can I install my machine when it arrives?
A4: All machine will be install and debug well before delivery . English Manual and operate video will be together send with machine . you can directly use when you got our machine . 24 hours online if you have any questions
Q5: How about the spare parts?
A5: After we deal down all the things , we will offer you a spare parts list for your reference.
