Pneumatic terminal crimp machine

  •  Pneumatic ferrules crimpper tool
  •  Pneumatic ferrules crimpper tool
 Pneumatic ferrules crimpper tool  Pneumatic ferrules crimpper tool

Pneumatic ferrules crimpper tool

  • Model : AM6-4

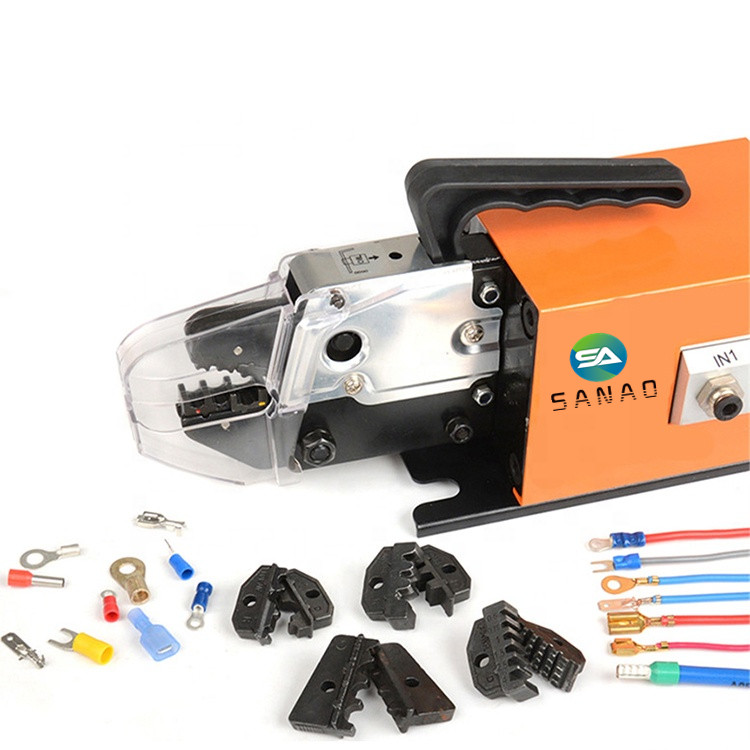

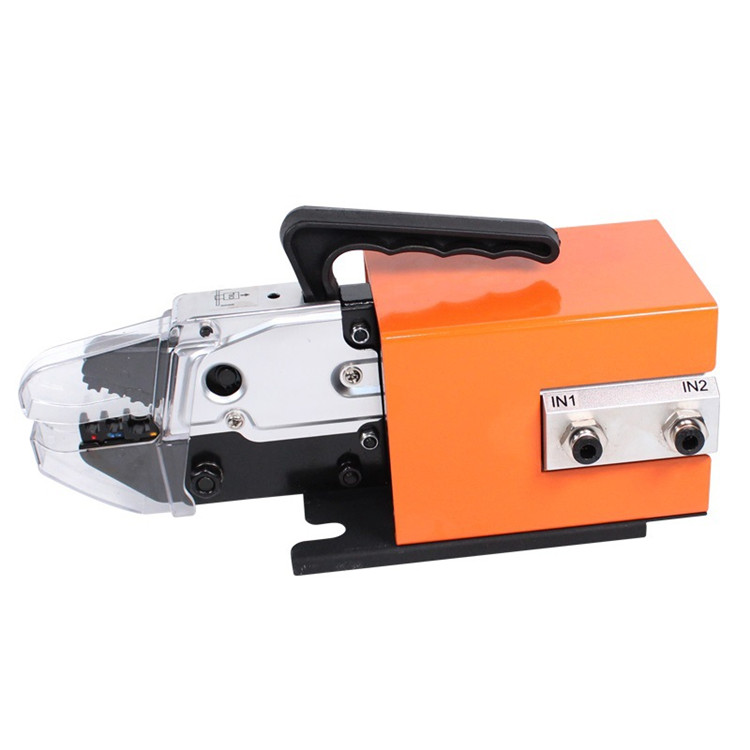

  • Description: This pre-insulated terminal crimping machine is suitable for crimping a variety of loose tubular terminals onto cables
  • INQUIRY   EMAIL

This pre-insulated terminal crimping machine is suitable for crimping a variety of loose tubular terminals onto cables
* Suitable for crimping a variety of loose tubular terminals onto cables
* Wire crimping can be finished at one time
*The terminals are crimped on all four sides, no need to replace the crimping die
* Vibrating plate feeding, saving time and effort, replacing terminals is convenient and quick
* Fully sealed crimping, safe and reliable

Model

AM10

AM6-4

AM6-6

AM70

AM120-4

AM240

90L

300L

Crimp range

6-35 mm2

0.08-6 mm²

0.08-6 mm²

Max.70 mm2

4-120 mm²

6-240 mm²

6-95mm2

6-300mm2

Air pressure range

0.4-1 Mpa

0.1-1 Mpa

0.4-1 Mpa

0.4~1 Mpa

/

0.7~0.95 Mpa

0.5~0.8Mpa

0.5~0.8Mpa

Output force

13.5 KN

13.5 KN

13.5 KN

2 T

13.5 KN

3 T

6 T

9 T

Weight

4 KG

5 KG

5 KG

18 KG

6 KG

27 KG

9.3 KG

10.5 KG

Dimension

260*120*140 mm

260*120*140 mm

260*120*140 mm

260*120*140 mm

L350 mm

540*190*225 mm

330*150*160mm

400*200*210mm

Applicable terminals

Non-insulated/pre-insulated terminal;tubular terminal

Tubuler terminal, four-sided crimp

Tubuler terminal, hexagonal crimp

Non-insulated /      U shape terminal

Tubuler terminal

Non-insulated /      U shape terminal

 SC or TO terminal

 SC or TO terminal




Our Company

SUZHOU SANAO ELECTRONICS CO., LTD is a professional wire processing machine manufacturer, based on sales innovation and service. As a professional company, we have a large number of professional and technical personnel, strong after-sales services and first-class precision machining technology. Our products are widely used in electronic industry, auto industry, cabinet industry, power industry and aerospace industry.Our company provides you with products and services of good quality, high efficiency and integrity.Our commitment: with the best price and the most dedicated service and tireless efforts to make customers improve productivity and meet customers' needs.

Our mission: for the interests of customers, we strive to innovate and create the world's most innovative products.Our philosophy: honest, customers-centric, market-oriented, technology-based, quality assurance.Our service: 24-hour hotline services.You are welcome to call us. The company has passed ISO9001 quality management system certification , and has been recognized as municipal enterprise engineering technology center , municipal science and technology enterprise , and national high-tech enterprise .

FAQ

Q1: Are you a trading company or a manufactory?

A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !

Q2: What’s your guarantee or the warranty of the quality if we buy your machines?

A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q3: When can I get my machine after I paid?

A3: The delivet time is based on the exact machine you confirmed.

Q4: How can I install my machine when it arrives?

A4: All machine will be install and debug well before delivery . English Manual and operate video will be together send with machine . you can directly use when you got our machine . 24 hours online if you have any questions

Q5: How about the spare parts?

A5: After we deal down all the things , we will offer you a spare parts list for your reference.
