SA-S-2T

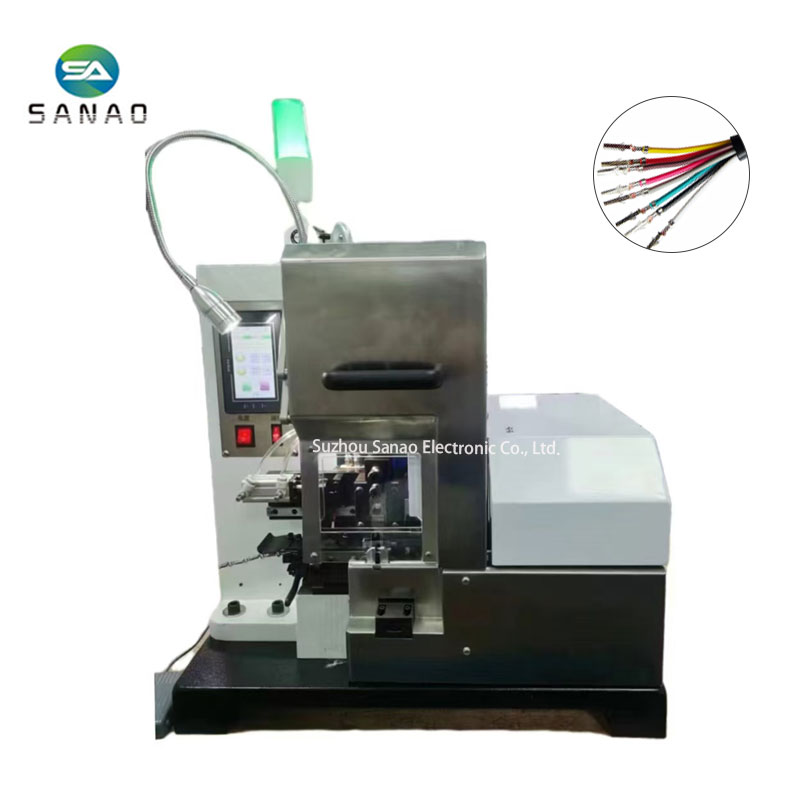

This machine is a Servo multi-functional electric stripping crimping machine. It is used for the crimping of horizontal terminal stripping machines. The terminal machine adopts servo crimping, and the applicator has strong versatility. It can simply achieve wire clamping, stripping, material cutting and terminal crimping.
Modular structure: Convenient for adjustment and maintenance, it is divided into crimping part, peeling part and wire clamping part.
The entire machine adopts PIC control, and all actions can be controlled independently, making debugging more convenient.
It can be applied to Europe Applicators such as JAM Applicators, TE Applicators, Amp Applicators, and Yazaki Applicators.
Model
SA-S-2T
Technical Parameters
Single-phase 200-240V, 50/60Hz
Air Source
0.5-0.6mpa（Please use dry and clean air）
Applicable wire Diameter
AWG32#～AWG20# (Depend on the cable type)
Applicable wire
AV, AVS, AVSS, CAVUS, KV, KIV, UL, IV Teflon, fiber wire, etc
Stripping length
1.0mm～6.0mm
Tangent error
0.05mm～0.1mm
Position error
0.05mm～0.1mm
Crimping

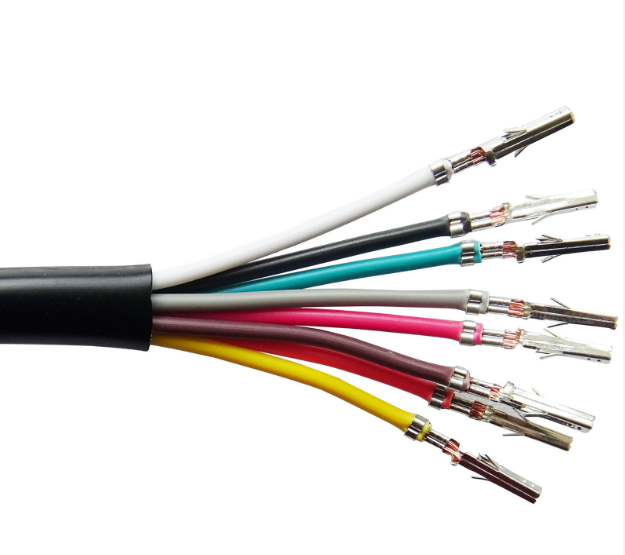

Open joint terminal, horizontal type
Crimping capacity
2T
stroke
30mm
Body size
W730*L350*H700mm
Total weight
100KG
