Automatic Testing machine

  • Terminal Pulling-out Force Tester machine

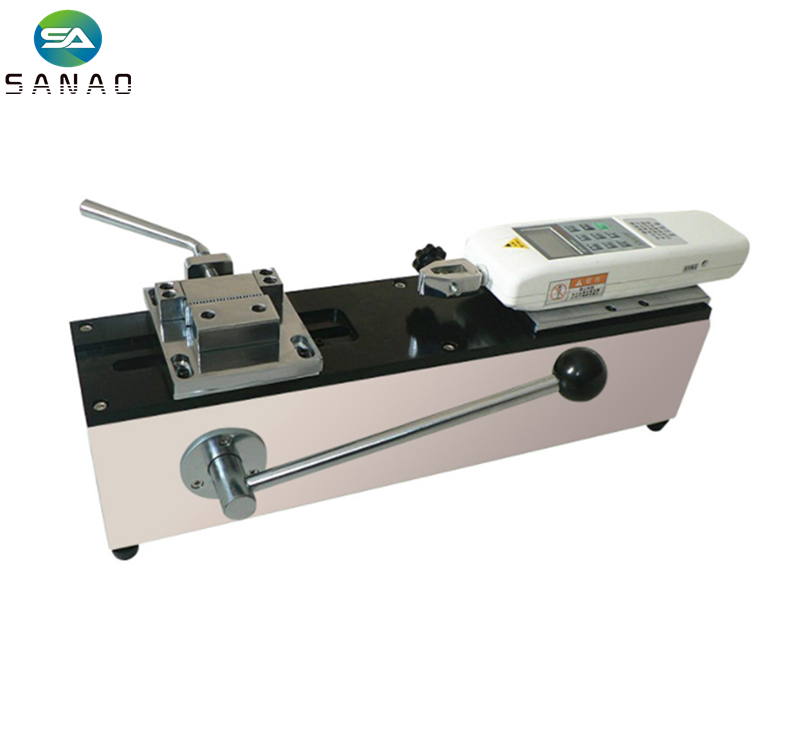

Terminal Pulling-out Force Tester machine

Terminal Pulling-out Force Tester machine

  • Model :SA-Ll01
  • Description: Wire Terminal Tester accurately measures the pull-off force off crimped-on wire terminals. The pull tester is an easy to use all-in-one, single-range solution for a wide range terminal testing applications,It is designed to detect the pull-out force of various wire harness terminals
  • INQUIRY   EMAIL


Wire Terminal Tester accurately measures the pull-off force off crimped-on wire terminals. The pull tester is an easy to use all-in-one, single-range solution for a wide range terminal testing applications,It is designed to detect the pull-out force of various wire harness terminals
Feature
1.Processing wire and cable tensile testing for wire harness manufacturing industry
2.Special fast jig for wire harness, automatic test, force sensor adopts original NTS sensor imported from Japan
3.The loading device is driven by motor, and the load measurement adopts imported load sensor with high precision and stability
4.The control part adopts full digital microprocessor control, force value LCD display and expandable PC interface for convenient data processing
5.The wire tensile testing machine is compact, easy-to-use, accurate in control, high in measurement accuracy, and convenient for specimen mounting. It is the ideal equipment for wire harness manufacturers to ensure product quality


Model

SA-LI01

SA-LI02

SA-LI03

Type

Digital Display (Hand operate)

pointer Display (Hand operate)

Digital Display (Automatic)

Measure Mode

500N(1000N Optional )

500N

1000N

Stroke

50mm

43 mm

Tolerance

±0.5%

+0.2% (full scale)

Power Supply

220/110V,50/60Hz

220/110V,50/60Hz

Weight

10.6Kg

15kg

Dimension

45m*26*16cm

42*25*25cm



Our Company

SUZHOU SANAO ELECTRONICS CO., LTD is a professional wire processing machine manufacturer, based on sales innovation and service. As a professional company, we have a large number of professional and technical personnel, strong after-sales services and first-class precision machining technology. Our products are widely used in electronic industry, auto industry, cabinet industry, power industry and aerospace industry.Our company provides you with products and services of good quality, high efficiency and integrity.Our commitment: with the best price and the most dedicated service and tireless efforts to make customers improve productivity and meet customers' needs.

Our mission: for the interests of customers, we strive to innovate and create the world's most innovative products.Our philosophy: honest, customers-centric, market-oriented, technology-based, quality assurance.Our service: 24-hour hotline services.You are welcome to call us. The company has passed ISO9001 quality management system certification , and has been recognized as municipal enterprise engineering technology center , municipal science and technology enterprise , and national high-tech enterprise .

FAQ

Q1: Are you a trading company or a manufactory?

A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !

Q2: What’s your guarantee or the warranty of the quality if we buy your machines?

A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q3: When can I get my machine after I paid?

A3: The delivet time is based on the exact machine you confirmed.

Q4: How can I install my machine when it arrives?

A4: All machine will be install and debug well before delivery . English Manual and operate video will be together send with machine . you can directly use when you got our machine . 24 hours online if you have any questions

Q5: How about the spare parts?

A5: After we deal down all the things , we will offer you a spare parts list for your reference.
