Ultrasonic wire splicing machine

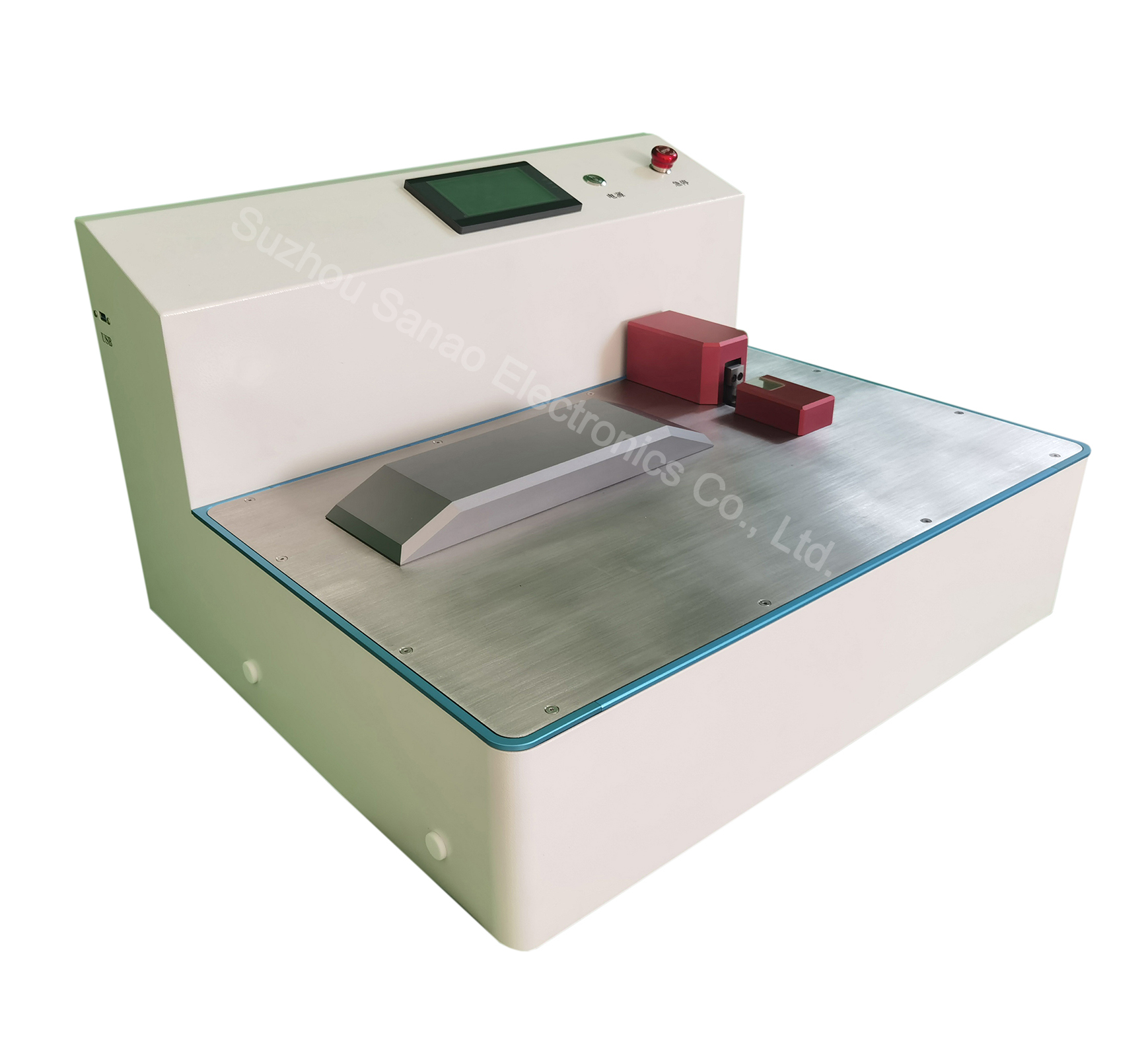

Numerical Control Ultrasonic Wire Splicer machine

Numerical Control Ultrasonic Wire Splicer machine

Model : SA-HMS-X01
Description: Model : SA-HMS-X01, 3000KW ,Suitable for 0.35mm²—20mm² Wire Touch screen control, It's can directly select the welding program, then direct welding, easy operation,At the same time, it has the function of preventing empty welding, which can effectively prevent the damage of the welding head. During welding, the welding power can be monitored in real time, which can effectively guarantee the yield.
INQUIRY EMAIL

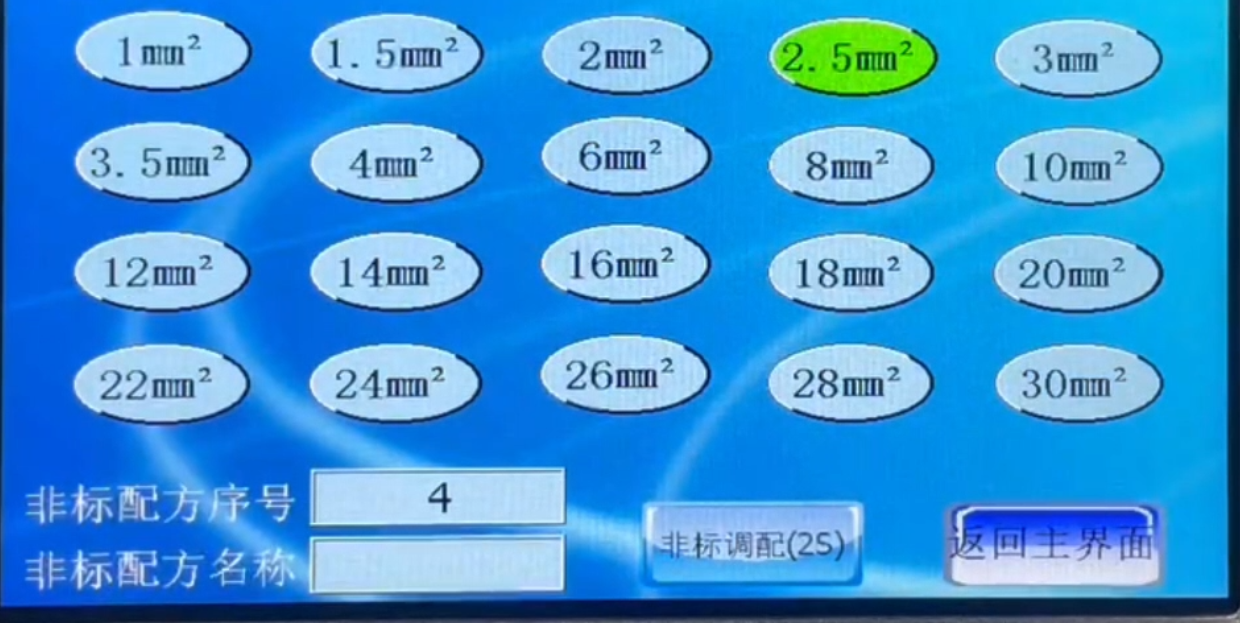

SA-HMS-X01 Touch screen control, It's can directly select the welding program, then direct welding, easy operation,At the same time, it has the function of preventing empty welding, which can effectively prevent the damage of the welding head. During welding, the welding power can be monitored in real time, which can effectively guarantee the yield.

Advantages:

1. High quality imported ultrasonic transducer, strong power, good stability

2. Fast welding speed, high energy efficiency, can be completed within 10s of a welding

3. Easy operation, no need to add auxiliary materials

4. Support multiple welding modes

5. Prevent air welding and effectively prevent welding head damage

6. Hd LED display, intuitive data, real-time monitoring, effectively ensure the welding yield

Model	SA-HMS-X01
Frequency of operation	20KHz
Frame size	L573×W220×H190mm
Chassis Dimensions	L345×W477×H155mm
Power supply	AC 220V/50Hz
Square of welding	0.35mm²—20mm²
Power of equipment	3000W
Wire diameter	≤Φ0.3mm
