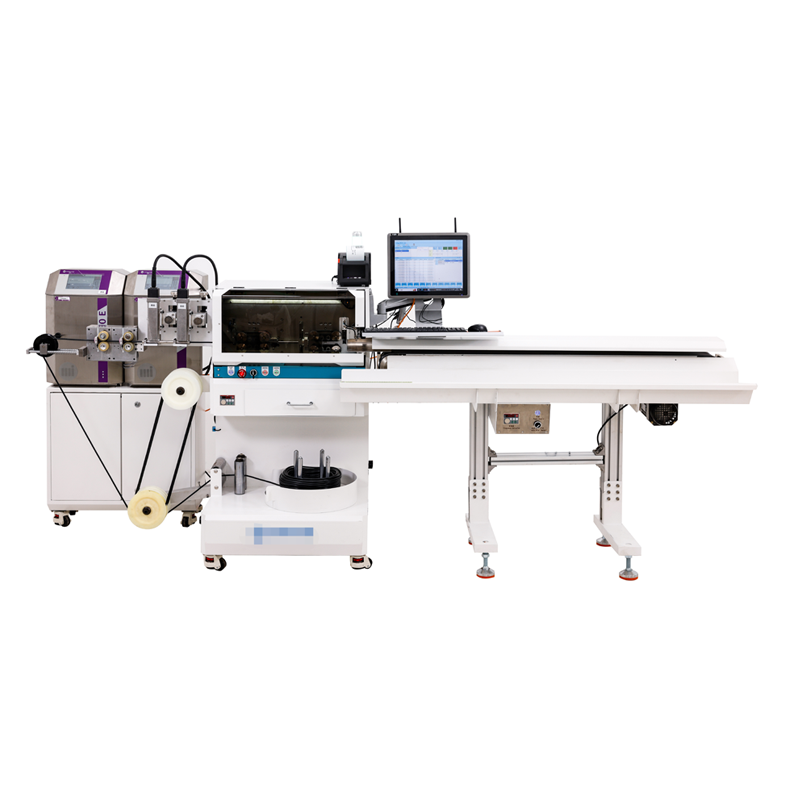

SA-FVH03-P is an automatic wire stripping with Inkjet Printing Machine, This machine integrates the functions of wire cutting, stripping, and inkjet printing, etc. This machine adopts Windows operating system and supports importing processing data through Excel table, which is especially suitable for occasions with many arieties.

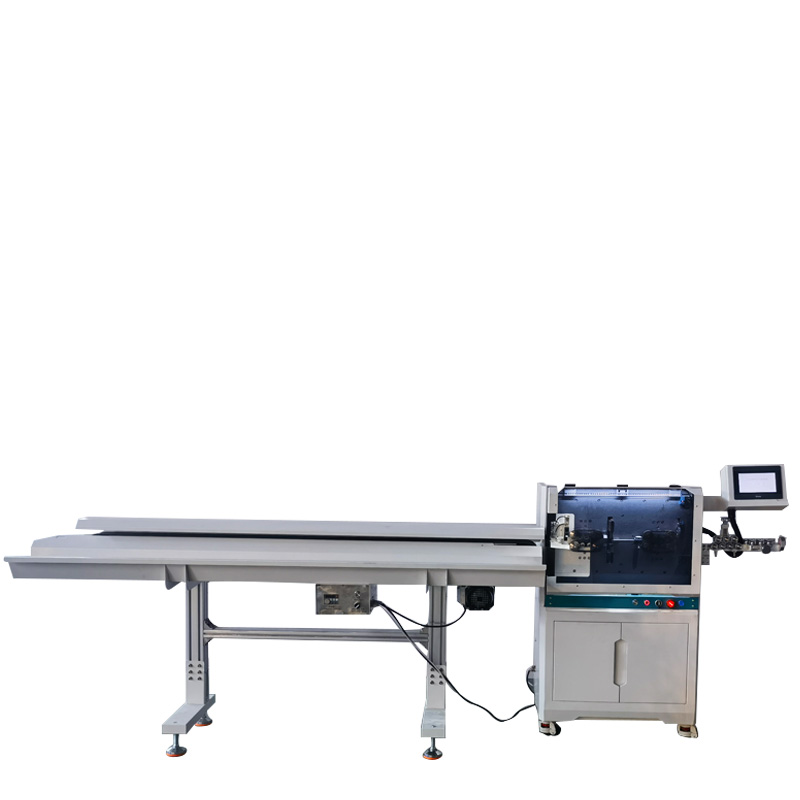

The machine adopts 16 wheels belt feeding, feeding high precision, cutting error is small, the outer skin without embossing marks and scratches, greatly improve product quality, the use of servo knife frame and imported high-speed steel blade, so that the peeling is more accurate, more durable.
-Computer industrial control system: Adopts Windows operating interface with powerful software. It supports batch import of production data from Excel tables, allowing direct input of coding content and positions in the Excel table. It can batch produce wires with different lengths and coding contents at one time.

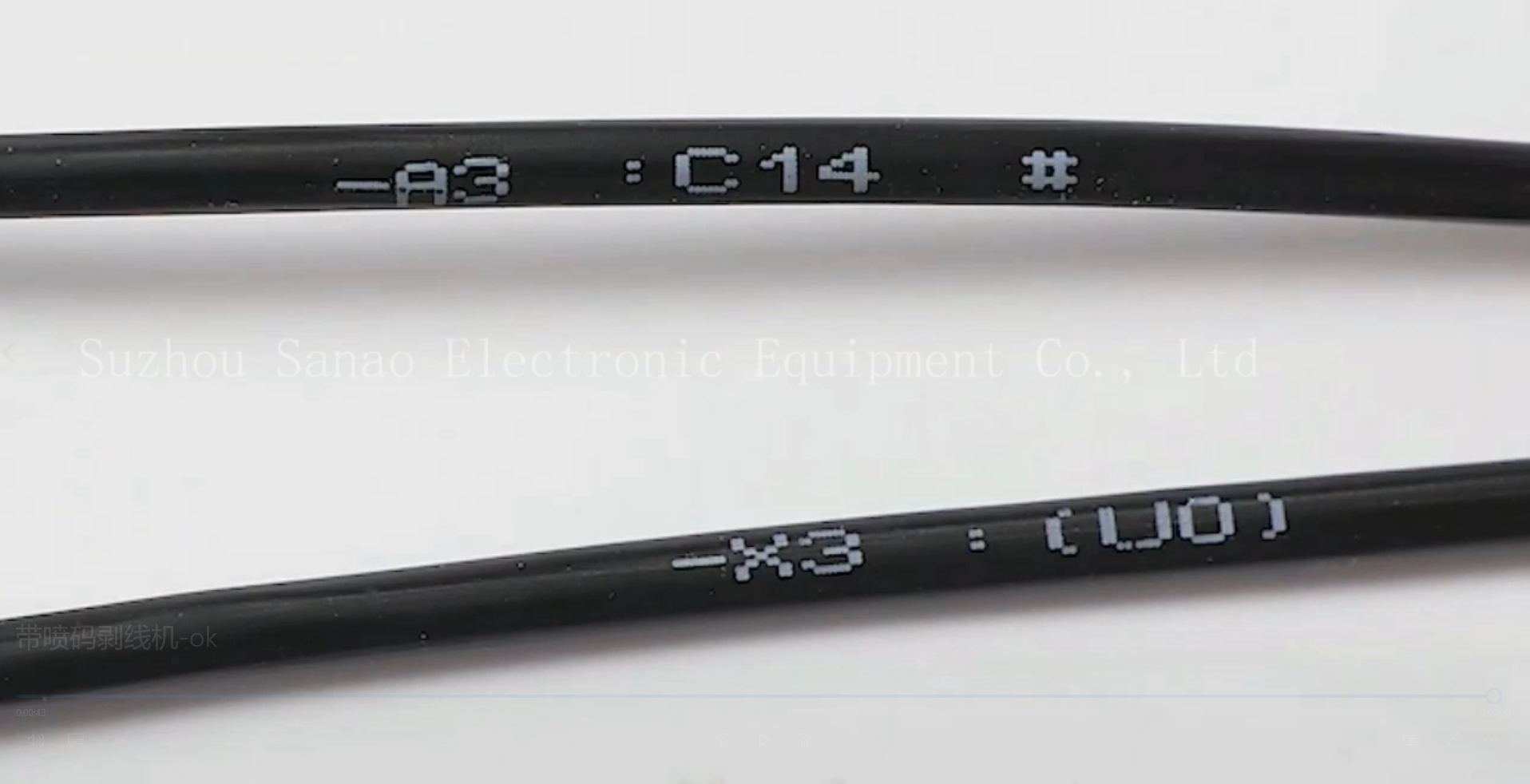

- Imported printing machine: Equipped with Markem-lmaje 9450 the continuous ink printers, featuring stable and reliable quality. It is available in white ink and black ink models. Each printing machine can only use one color of ink. If both white and black coding are required, Need match two printing machines need to be equipped. The printing machine is directly controlled by the computer industrial control system, and coding content can be defined directly in the software without inputting through the printing machine's own screen.
- Optional accessories: Optional barcode scanners are supported. The scanner can retrieve processing parameters by scanning codes, while the receipt printer can automatically print current wire processing information, as well as QR codes or barcodes. The printing format and content can be customized with templates according to customer needs.
Support non-standard customization, the machine's software system can also be applied to our other models of wire stripping machine, Such as 120mm2 , 300mm2 and 400mm2 machine .
Sheath wire :800pcs/h (base on wire and cutting length)
Model
SA-FVH03-P
Conductor Cross-Section
0.35-30mm² （Or outer diameter less 14MM sheathed cable )
Cutting Length
1-99999mm
Cutting Length Tolerances
≤(0.002*L) mm
Jacket Stripping Length
Head 10-120mm; Tail 10-240mm
Inner Core Stripping Length
Head 1-50mm; Tail 1-50mm
Conduit Diameter
Φ16mm
Production Rate
Single wire :2300pcs/h
Display Screen
7 inch touch screen
Drive Method
16 wheels drive
Wire Feed Method
Belt feeding wire, no indentation on cable
