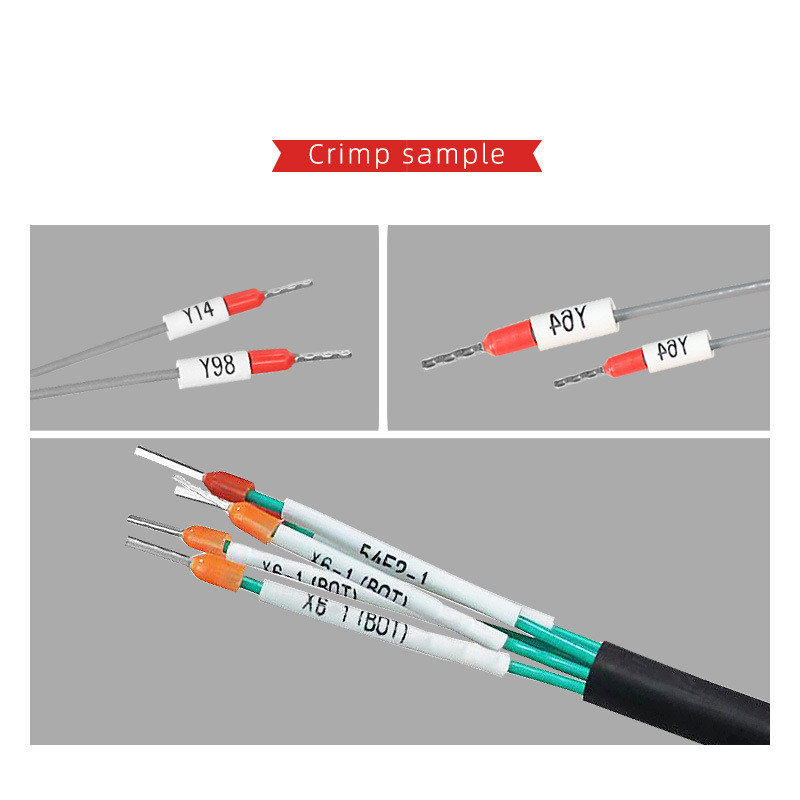

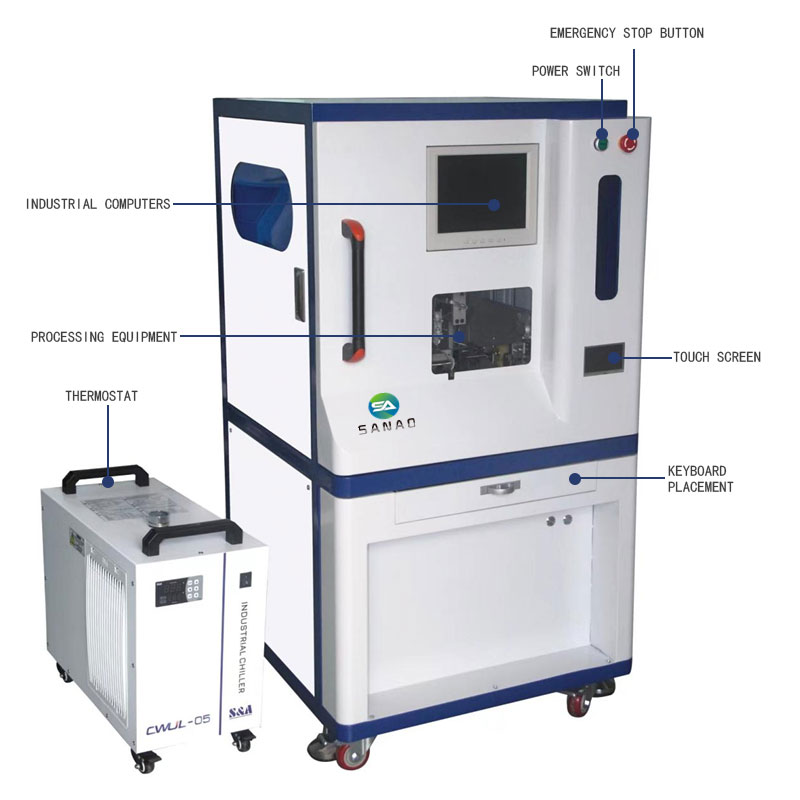

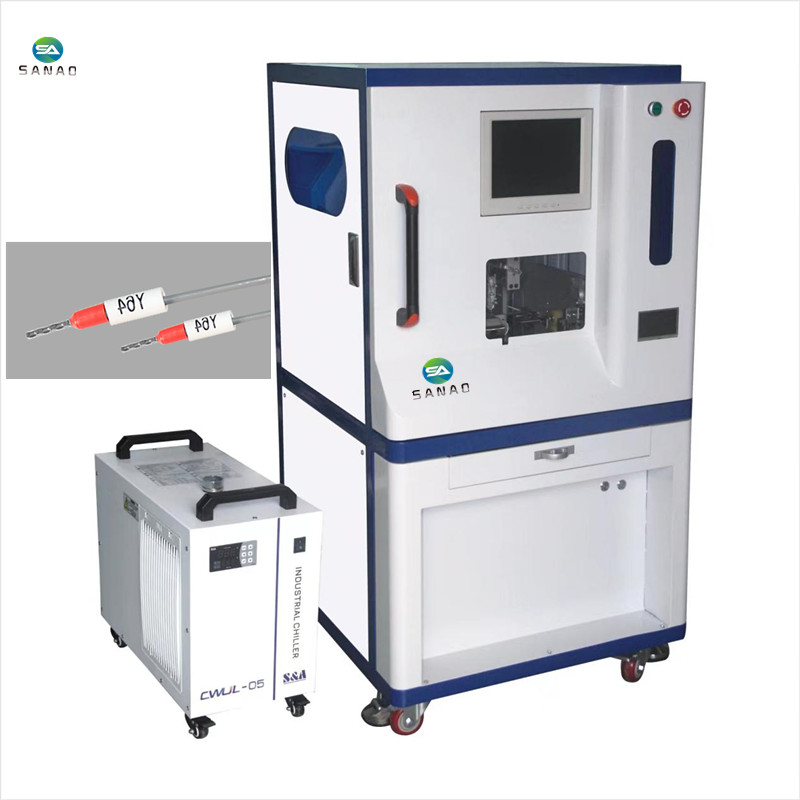

SA-YJ1804 The printing content of the number tube can be set through the computer industrial control system, and the printing content of each line is different. The terminal is automatically fed through the vibrating disc, the wire end does not need to be pre-stripped, and the operator only needs to extend the wire end into the working position.
The machine can automatically complete a series of actions such as stripping wires, twisting copper wires.printing and cutting number tubes, and crimping terminals. The twisting function can effectively prevent the copper wire from turning over when inserting the terminal, and the integrated stripping and crimping reduces the process and can effectively save labor. This machine uses laser printing, which does not require consumables for production and has low production costs. One machine can be used for terminals of different sizes. To replace the terminals, simply replace the corresponding terminal fixture. It can be used for multiple purposes with simple operation
Advantages: 1. One machine can crimp terminals of different sizes, just change the corresponding jigs.
2. Color touch screen operation interface, parameter setting is intuitive and easy to understand, parameters such as thread cutting depth, stripping length, twisting force can be directly set in the program.
3. This machine has a program memory function, which can save the stripping and crimping parameters of different products in the program in advance, and can call out the corresponding parameters with one key when switching wires or terminals.
Contact: ken chen
Phone: +86 18068080170
Tel: 0512-55250699
Email: [email protected]
Add: No.2008 Shuixiu Road, Kunshan, Suzhou, Jiangsu, China
Contact Us
Model
SA-YJ1804
Name
insulated wire stripping terminal crimping and wear tube number printing
Function
Wire stripping,terminal crimping,wear tube,printing
Suitable wire
0.3-4mm2
Stripping length
8-16mm
Crimping length
Maximum 12mm
Air source
0.5-0.8MPa
Voltage
AC220V 50HZ
Weight
100KG
Control mode
Touch screen and PLC
Drive mode
Motor and ball screw
Warranty
1 Year
Dimensions and weight
W360mm x L520mm x H425mm, weight about 62KG.
