Hot and cold cutting machine

  • hook and loop circle shape tape cutting machine
  • hook and loop circle shape tape cutting machine
  • hook and loop circle shape tape cutting machine
hook and loop circle shape tape cutting machinehook and loop circle shape tape cutting machinehook and loop circle shape tape cutting machine

hook and loop circle shape tape cutting machine

  • SA-W120

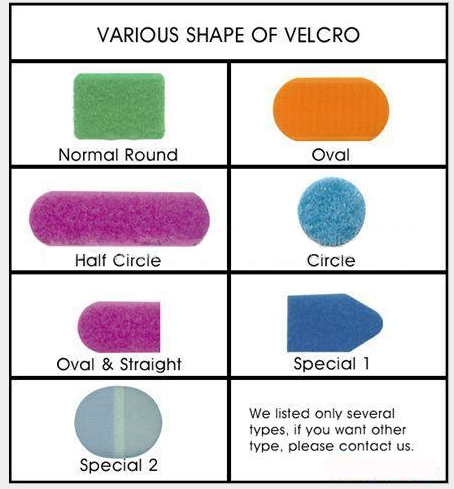

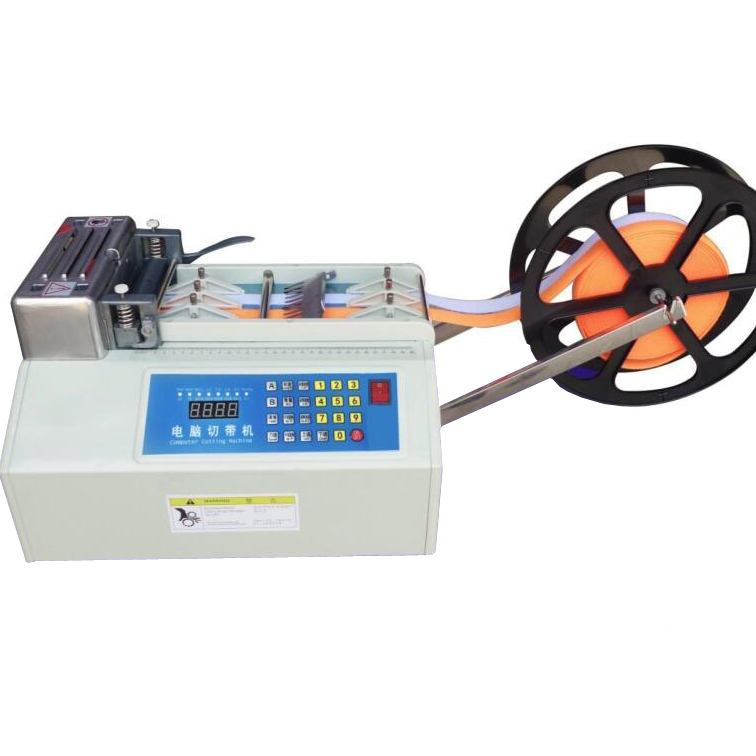

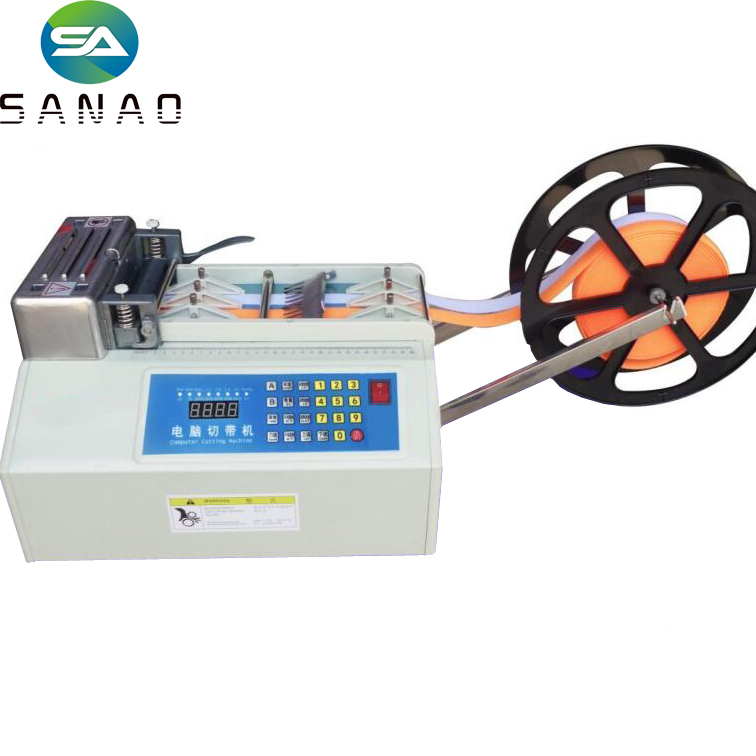

  • Description: SA-W120 This New cutting Machine is capable of Cutting Velcro ( Hook & Loop Tape ) up to 115 wide and to 10m in length . It's designed to cut the Hook Loop Tape with a Flat Edge , Round Edge , Oblique Edge / Angle etc, The blades is custom made via cutting shape . It's can cutting multi strip at one time .
  • INQUIRY   EMAIL

SA-W120 This New cutting Machine is capable of Cutting Velcro ( Hook & Loop Tape ) up to 115 wide and to 10m in length . It's designed to cut the Hook Loop Tape with a Flat Edge , Round Edge , Oblique Edge / Angle etc, The blades is custom made via cutting shape . It's can cutting multi strip at one time .

Features:
1.Easy operation,it can cut automatically once set up the cutting length and quantity.
2.Self protection function,it will stop automatically if the materials run out during the operation.
3.High speed,120 pcs per minute(50mm length for example)
4.High accuracy,the cutting length is accurate according to a stepping motor.

5.it can work for two Velcro tapes and cut different shapes at the same time.

Model

SA-W120

SA-W120H

Available width

1-115mm

1-115mm

Cutting length

1-9999mm

1-9999mm

Power

200W

200W

cutting Knife

Cold cutting

Cold and hot cutting

Cutting speed

120pcs/min

120pcs/min

Cutting precision

0.1mm

0.1mm

Electrical connection

AC 220/110V/50/60HZ

AC 220/110V/50/60HZ
