label sensor cutting machine

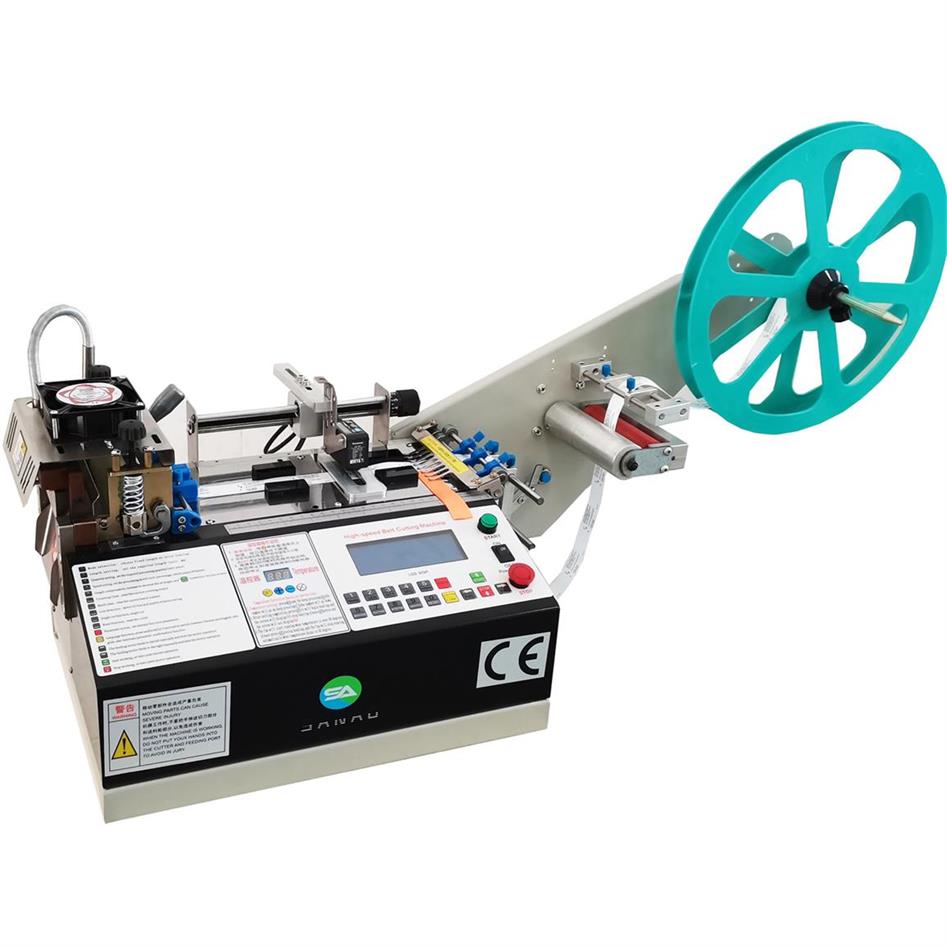

High speed hot and cold label cutting machine 300pcs /min

SA-910
Description: SA-910 Cutting Label range: Blades width is 100MM , Max. Cutting width is 95MM , This label cutting machine uses the sensor to recognize the pattern on the mark for precise cutting. Cutting is cold cutting and hot cutting. Design for cutting washable labels, PVC trademarks, etc.,The equipment is fast and precise,which can greatly improve the production efficiency.
INQUIRY EMAIL

SA-910 Cutting Label range: Blades width is 100MM , Max. Cutting width is 95MM , This label cutting machine uses the sensor to recognize the pattern on the mark for precise cutting. Cutting is cold cutting and hot cutting. Design for cutting washable labels, PVC trademarks, etc., and the heat cutting has a certain edge-sealing effect on loose edge material. The equipment is fast and precise,which can greatly improve the production efficiency.

Advantage :

1.Suitable for cutting all kinds of printed labels, woven labels, pvc trademarks, self-adhesive trademarks, being able to process hot cutting after heating;
2. Independently developed control system with reasonably clever structural design, speeds up to 300 times/min;
3.Cutting speed and cutting length can directly setting on machine ,easy to operate .
4. High speed and accurate feeding motor, the accuracy can reach 0. 3mm at a cutting length of 2.5m;
5.The control system has four working modes, including debug mode, positioning mode, fixed length mode and discharge mode. These working modes can meet different cutting requirements of various materials;
6. Large LCD display in English, simple and convenient.

Model	SA-910
Cutting type	Cold and hot cutting
Cutting length	1-99cm
Cutting width	1-100mm
Knife temperature	350-400°C
Cutting speed	300 pcs/min
Power/output	110V/220V/ 0.4 kw
Dimension	450350350mm
