Shrinkable tube heating machine

  • Shrink sleeve with the glue heating machine
  • Shrink sleeve with the glue heating machine
  • Shrink sleeve with the glue heating machine
Shrink sleeve with the glue heating machineShrink sleeve with the glue heating machineShrink sleeve with the glue heating machine

Shrink sleeve with the glue heating machine

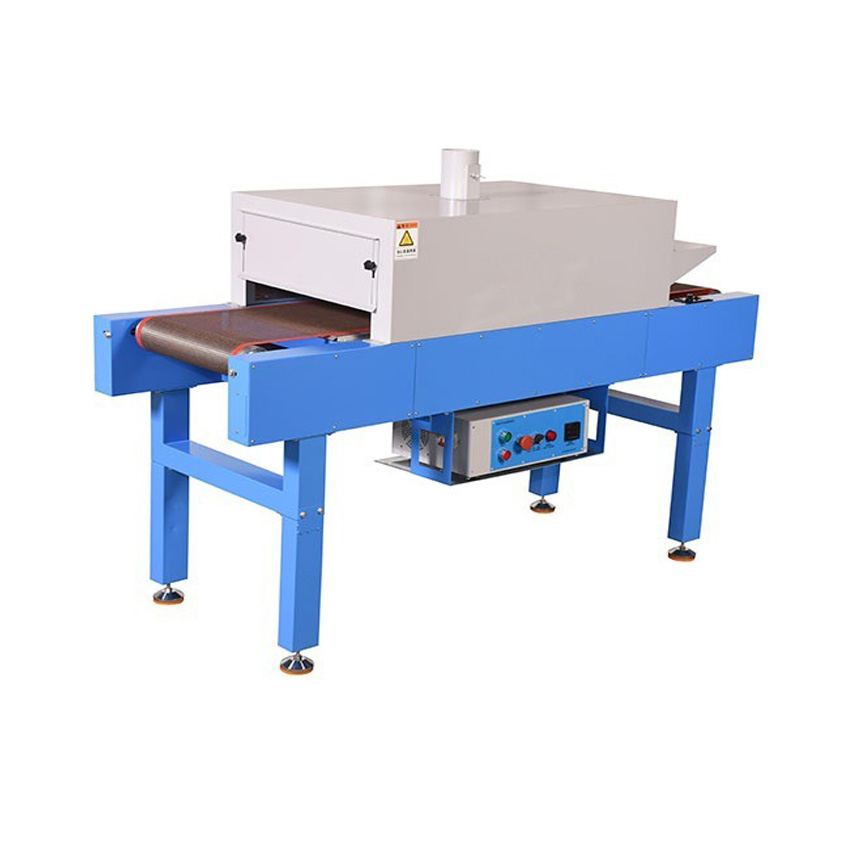

  • Model:SA-650A-2M
  • Description: SA-650A-2M, Double side heat shrinkable tube heater ,suitable for processing a variety of wire harness, short wire , large diameter wire and extra-long wire harness.
  • INQUIRY   EMAIL


Double side heat shrinkable tube heater with intelligent temperature adjustment (intelligent digital temperature control,use a liquid crystal screen to display the working state, independent control system) is suitable for heating shrinkage oflarge diameter heat shrinkable tubes and heating shrinkage of copper heat-shrinkable tube in control cabinet in wire harness processing enterprises, adjusting temperature according to the requirements of the production process,contraction time is short,can heat shrinkable tubes for any length, can work continuously for 24 hourswithout interruption, there is anomni-directional reflective thermal material in it, so that the heat shrink pipe is heated evenly.

Intelligent control system
LCD
Deviced friendly man-machine interface, menu operation of liquid crystal Chinese characters,simple and convenient manipulation,Real-time display of work status.
Open machine presupposition function
The machine can set the output temperature, the working time, etc.
Intelligent power regulation
According to the seted up temperature, the heating system intelligently recognizes the output power, and the output is stable.
Temperature control system
The power output is controlled by digital stepless mediation, the temperature is controlled, the output is stable, and the precision of temperature control is 2.
Parameter memory function
The power, the temperature, the working hours and other parameters of the hot air fan have memory function.

Product Name

Double Side Heat shrinkable tube heater

Model

SA-650A-2M

Size

Overall machine size

1800*1000*1280mm(Containing the air duct and motor)

Conveyor

1890*950*730mm

Heating area

1000*650mm

Belt width

650mm

Maximum transmission width

650mm

Maximum transmission height

100mmAdjustable

Conveyor belt

Material quality

Teflon

Speed

1~5m/min

Transmission of motor power

90WStepless speed regulation

Heating pipe

Heating pipe name

Infrared heating tube

Heating pipe power

500W8 branches

Power Supply

Power demand

220V

Power

4100W

Our Company

SUZHOU SANAO ELECTRONICS CO., LTD is a professional wire processing machine manufacturer, based on sales innovation and service. As a professional company, we have a large number of professional and technical personnel, strong after-sales services and first-class precision machining technology. Our products are widely used in electronic industry, auto industry, cabinet industry, power industry and aerospace industry.Our company provides you with products and services of good quality, high efficiency and integrity.Our commitment: with the best price and the most dedicated service and tireless efforts to make customers improve productivity and meet customers' needs.

Our mission: for the interests of customers, we strive to innovate and create the world's most innovative products.Our philosophy: honest, customers-centric, market-oriented, technology-based, quality assurance.Our service: 24-hour hotline services.You are welcome to call us. The company has passed ISO9001 quality management system certification , and has been recognized as municipal enterprise engineering technology center , municipal science and technology enterprise , and national high-tech enterprise .

FAQ

Q1: Are you a trading company or a manufactory?

A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !

Q2: What’s your guarantee or the warranty of the quality if we buy your machines?

A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q3: When can I get my machine after I paid?

A3: The delivet time is based on the exact machine you confirmed.

Q4: How can I install my machine when it arrives?

A4: All machine will be install and debug well before delivery . English Manual and operate video will be together send with machine . you can directly use when you got our machine . 24 hours online if you have any questions

Q5: How about the spare parts?

A5: After we deal down all the things , we will offer you a spare parts list for your reference.
