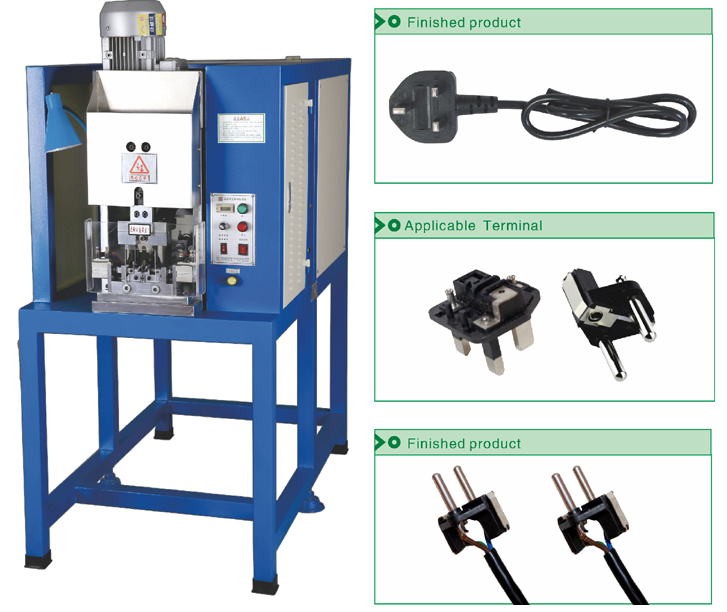

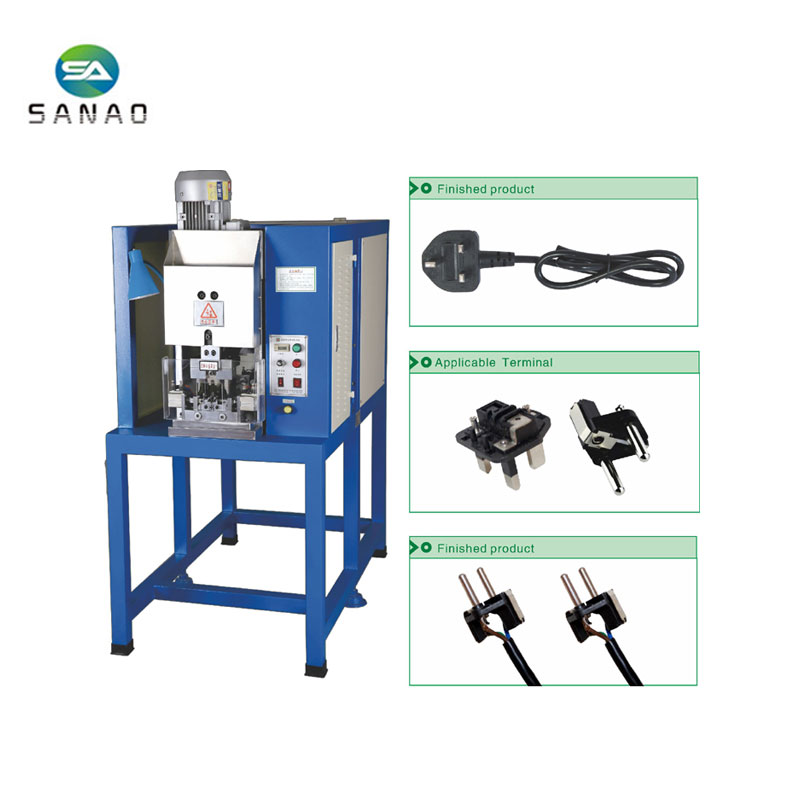

SA-PC3500
Automatic vibrating plate feeding, and riveting is completed at one time.
The whole machine is controlled by PLC, frequency converter and variable frequency motor.
The riveting place is provided with a protective cover and a wire entry device, which is safe and fast to operate.
Applicable wire:
RVV / 3C (under 1.5mm2)
H03VV-F, H05VV-F (under 1.55 mm2)
Model
SA-PC3500
Punching Force
3T
Pressure Of Air Source
0.5-0.8Mpa
Dimension
1250mm*730mm*1550mm
Pressure Connection Speed
600-1000pcs/hour
Voltage
AC220V/50Hz
Weight
250KGS
