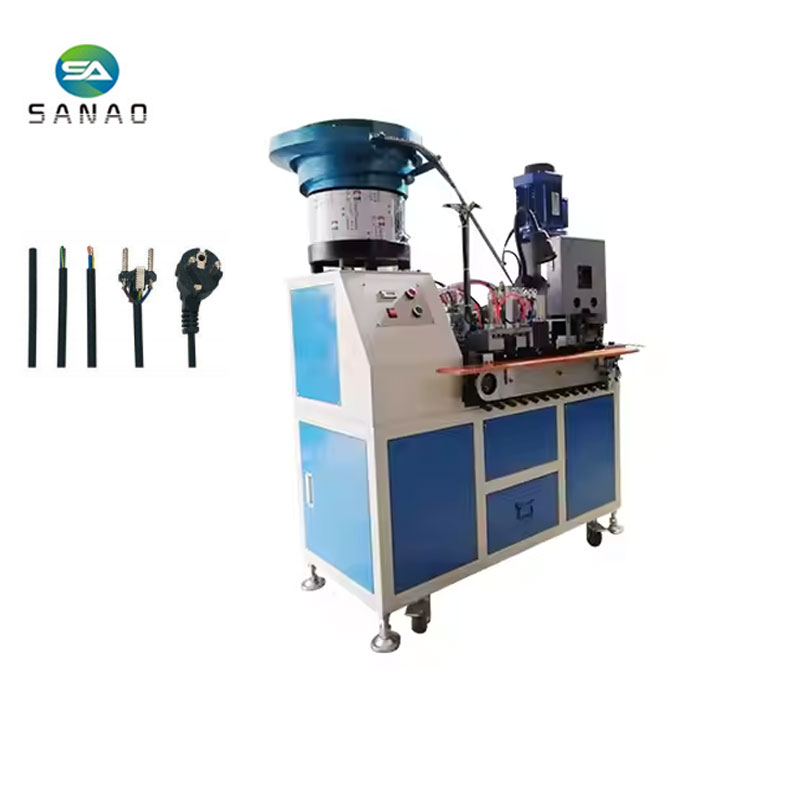

SA-PC3600
Automatic vibrating plate feeding, and riveting is completed at one time.
The whole machine is controlled by PLC, frequency converter and variable frequency motor.
The riveting place is provided with a protective cover and a wire entry device, which is safe and fast to operate.

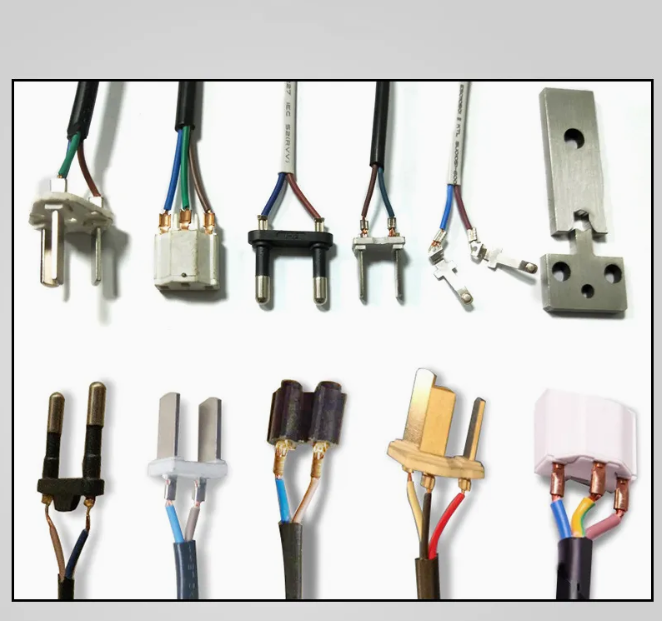

Applicable wire:
RVV / 3C (under 1.5mm2)
H03VV-F, H05VV-F (under 1.55 mm2)
Model
SA-PC3600
Function
Outer jacket stripping inner core stripping and plug crimping machine
Capacity
2300-2600pcs/h
Riveting force
3T
Yield
≥99.8%
Operating air pressure
0.5-0.8MPa
Voltage
AC220V/50HZ
Power
1.5kw/h
Machine weight
350kg
Machine size
1130mm*830mm*1650mm
