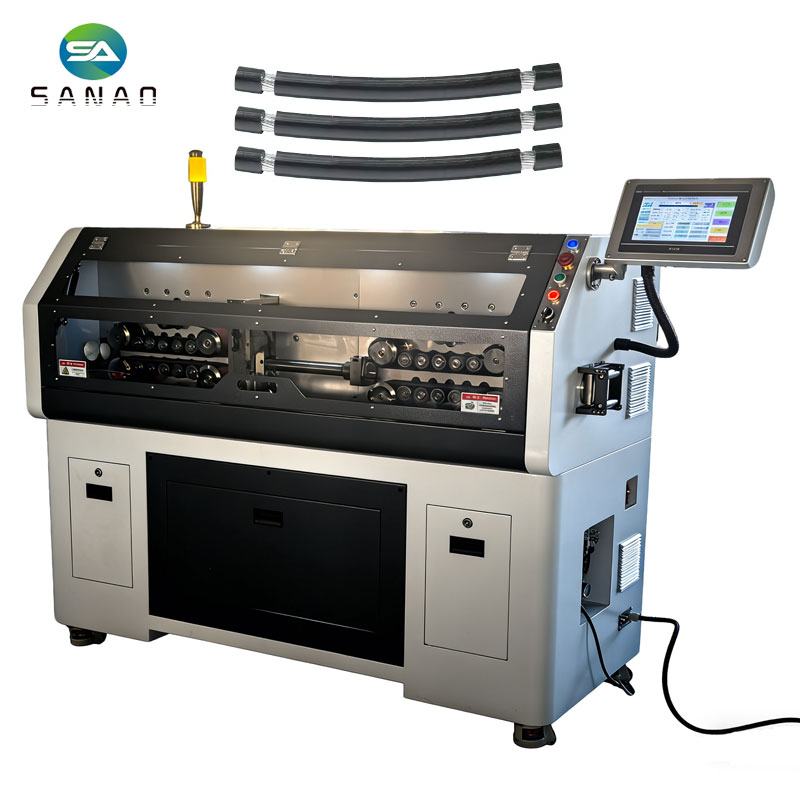

Max.400mm2 Large Cable Cutting and Stripping Machine

SA-HS400
Description: SA-HS400 is automatic cutting and stripping machine for large cable.Battery /Ev charging/New Energy/Electric vehicle cable.The maximum line can be cut and stripped to 400 square meters.Get your quote now!
INQUIRY EMAIL

Product Introduction

SA-HS400 is automatic cutting and stripping machine for cable , compared with the traditional wire stripping machine, this machine adopts the double knife co-operation, 2 separate blade for cutting and stripping with enhanced servo motor ,32 wheels are driven at the same time, using servo motor to ensure more efficient and faster operation! Increase the power by 2 times on the basis of the original cable stripping machine.

The production capacity is 2-3 times that of ordinary wire stripping machines! Save a lot of labor! The fully automatic computer wire stripping machine developed by our company uses a high-speed microprocessor and is combined with advanced motion control technology.

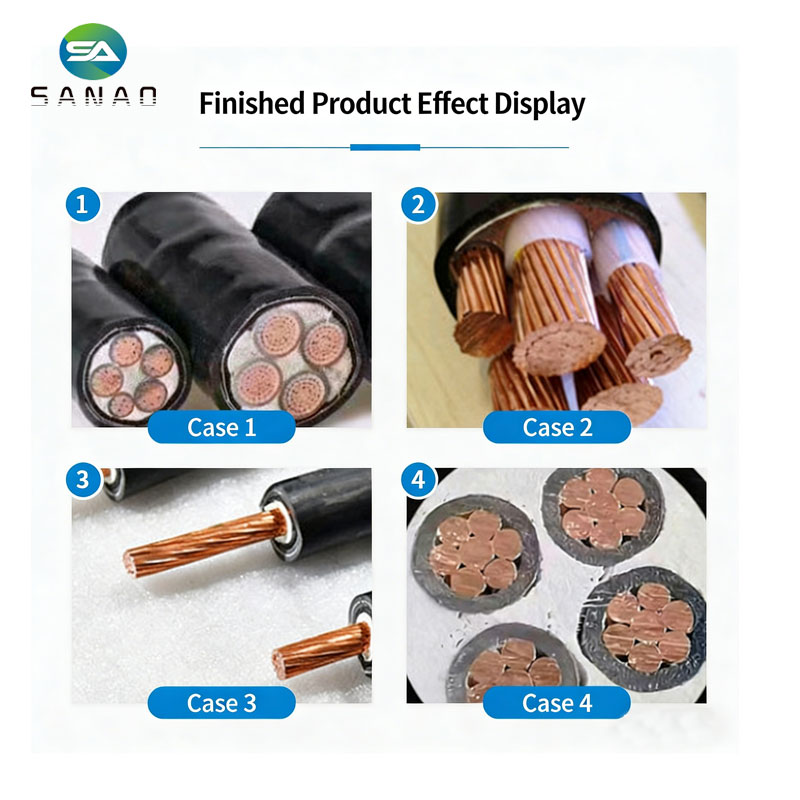

The product is suitable for the processing of large power cables, power cables,sheathed wires, soft and hard wires. The processed wire harness has the same length, beautiful appearance and the best strippingeffect. This machine is mainly aimed at the power industry, electric control cabinets, battery box wires, new energy vehicle wire harnesses, charging pile wire harnesses, charging gun wire harnesses, BV hard wires, BVR soft wires, etc. The entire coil of wires can be as long as required. The stripping head is cut and stripped well, which greatly improves the efficiency.

The maximum line can be cut and stripped to 400 square meters.10-inch colour English touch screen, easy to understand the operation, 99 kinds of procedures, further simplify the production process, different processing products, only one time to set up, the next time directly click on the corresponding procedures to improve production speed.
The conduit jumps, compared with the traditional machine, the outer skin of the stripping length is longer, the standard stripping length of the tail 300mm, 1000mm head stripping length, if there is a special long stripping requirements or in the stripping requirements, we can add additional long stripping function.

Advantage
1.automatically cable cutting and stripping different wires size,stripping single wire and outer jacket of sheathed cable .
2.Drive mode: 32-wheel drive ,silent hybrid stepper motor, servo tool holder.
5.Belt feeding wires, no embossing and scratches
6.Head stripping: Head 30-1000mm; Tail 10-300mm

Model	SA-HS400
Conductor cross-section	10 - 400 mm²
Cutting length	1 - 99999.9 mm
Cutting length tolerance	< 0.002 * L (L = cutting length)
Stripping length (Head )	10-1000mm
Stripping length (Tail)	10-300mm
Maximum guide tube diameter	50 mm
Productivity	500 - 1000 pcs./h
Blade	2 separate blade set for cutting and stripping with enhanced servo motor
Display mode	10-inch touch screen with English language
Driving mode	32-roller driving, separate servo motor for each roller set
Feeding mode	Belts feed - guarantee for no scratch mark on cable insulation/jacket
Power supply	220 V (50 - 60 Hz)
Power	15 kW
Compressed air connection	0.5 - 0.7 MPa
Weight	850 kg
Dimension	1700 * 900 * 1450 mm
