Servo Full automatic Terminal Wire Crimping Machine

Product Introduction

SA-SVF100

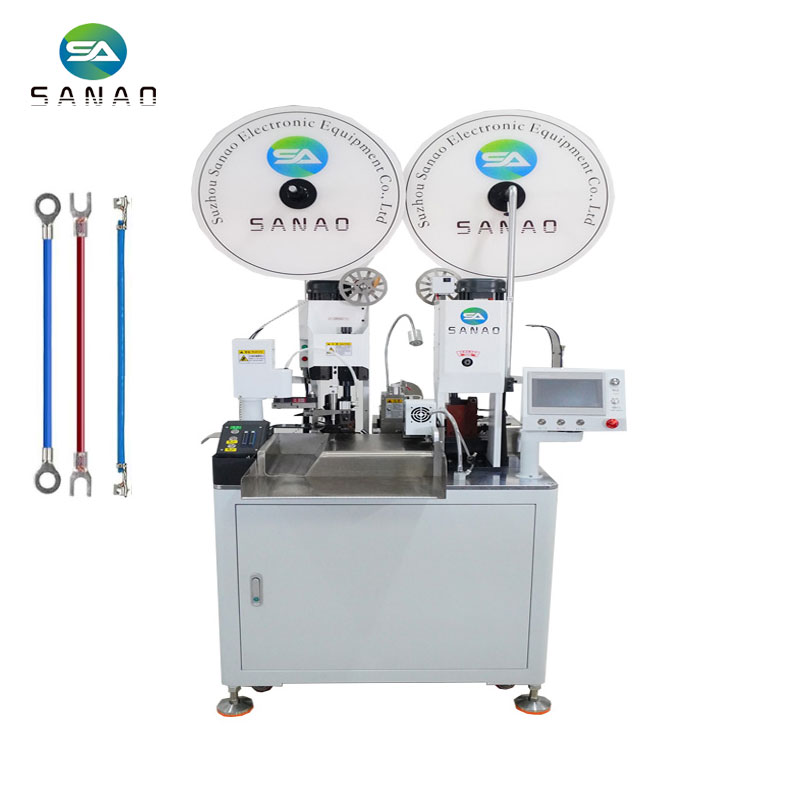

This is a fully automatic Servo double end crimping machine, standard machine for AWG30#~14# wire , standard machine with a stroke of 30mm OTP high precision applicator , compared with ordinary Applicator, high precision applicator feed and crimp more stable, Different terminals only need to replace the applicator, This is easy to operate and multi-purpose machine.

The machine uses 5 sets of servo motors, 2 sets of stepper motors, 4 sets of TBI screws, 7 sets of HIWIN guide rails and Swedish SKF bearings, which is a high quality servo terminal crimping machine.The workmanship of the whole machine is precise, and the moving parts such as wire feeding, cutting, and translation are all driven by high-precision servo motors, with strong power and precise dimensions .

The stroke of the machine can be custom made to 40MM, suitable for European style applicator, JST applicator, our company can also provide customers with high quality European style applicators and so on. Please contact us for more information.

Pressure detection is an optional item, real-time monitoring of each crimping process pressure curve changes, if the pressure is not normal, it will automatically alarm and stop, strict control of production line production quality. When processing long wires, you can choose a conveyor belt, and put the processed wires straight and neatly into the receiving tray.

Color touch screen operation interface, parameter setting is intuitive and easy to understand. The machine has a program saving function, which is convenient to use directly next time without setting the machine again, simplifying the operation process.
