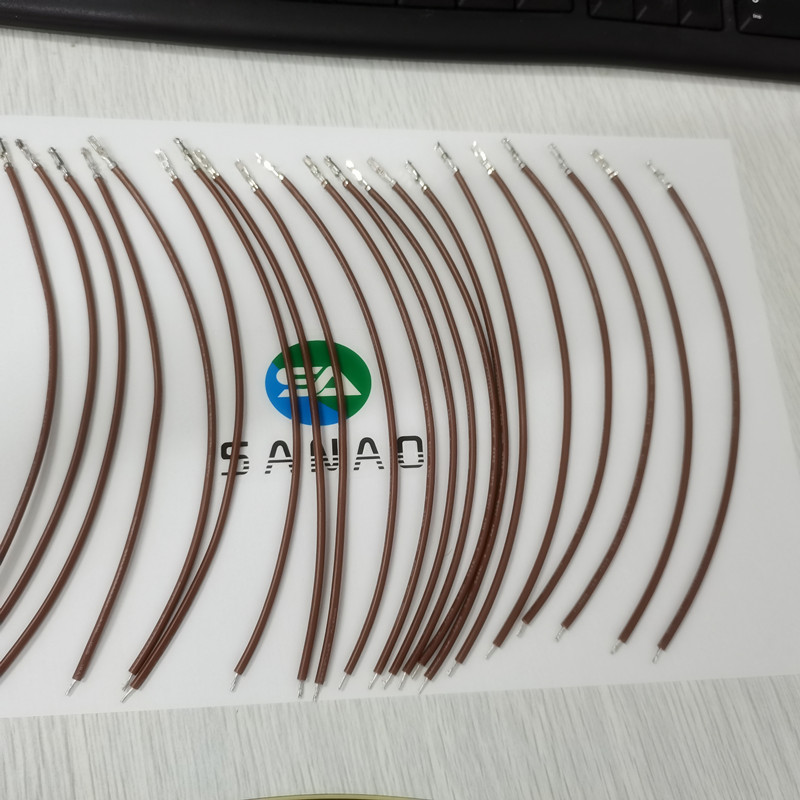

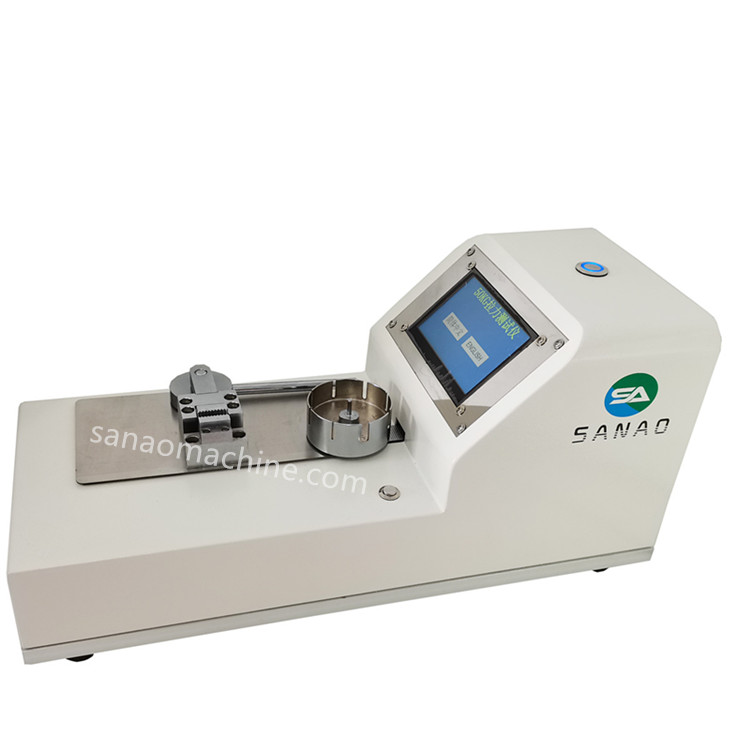

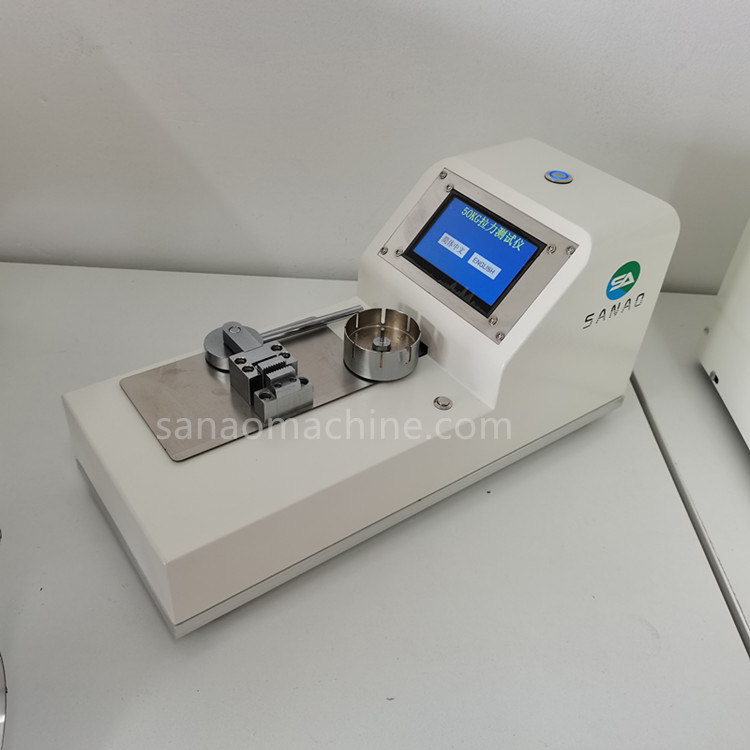

Wire Terminal Tester accurately measures the pull-off force off crimped-on wire terminals. The pull tester is an easy to use all-in-one, single-range solution for a wide range terminal testing applications,It is designed to detect the pull-out force of various wire harness terminals
Feature
1.Processing wire and cable tensile testing for wire harness manufacturing industry
1.Using 0-50KG tension sensor.
2.The LCD screen shows the peak value.
3.Quick terminal chuck, cam type wire clamping mechanism.
4.After the test is completed, it will automatically return to zero and return to position automatically.
|
Model |
TM-50 |
TM-100 |
TM-300 |
|
Function |
Terminal wire tensile tester |
Terminal wire tensile tester |
Terminal wire tensile tester |
|
Dimensions |
L430 * W180 * H210 (mm) |
L430 * W180 * H210 (mm) |
L430 * W180 * H210 (mm) |
|
Weight |
10kg |
10kg |
10kg |
|
Power supply |
AC220V 50/60HZ |
AC220V 50/60HZ |
AC220V 50/60HZ |
|
Power |
0.1KW |
0.1KW |
0.1KW |
|
Testing range |
Standard is 500N |
1000N |
3000N |
|
Testing accuracy |
± 0.04KG |
± 0.04KG |
± 0.04KG |
|
Warranty |
1 Year |
1 Year |
1 Year |
