  • Automatic angle cutting machine for nylon tape
  • Automatic angle cutting machine for nylon tape
  • Automatic angle cutting machine for nylon tape
Automatic angle cutting machine for nylon tapeAutomatic angle cutting machine for nylon tapeAutomatic angle cutting machine for nylon tape

Automatic angle cutting machine for nylon tape

  • Model : SA-120LRH

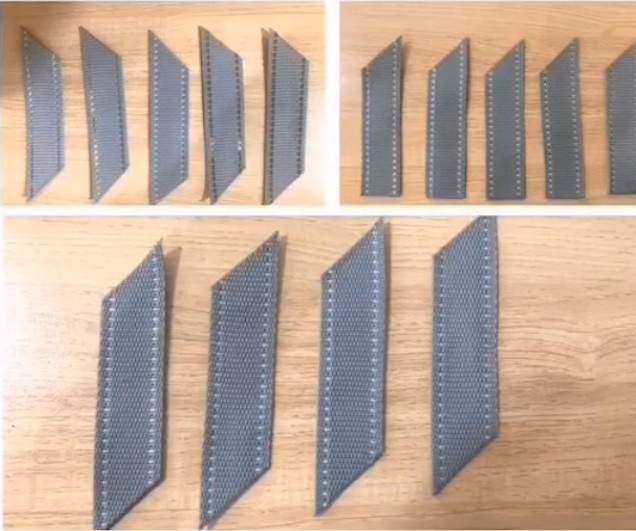

  • Description: Automatic angle cutting machine for nylon tape that can cut 5 shapes , the width of the cutting is 1-100mm,The webbing tape cutting machine can cut 5 shapes to better suit all kinds of specific needs. the width of the angle cutting is 1-70mm, the cutting angle of the blade can be adjusted freely.
  • INQUIRY   EMAIL


The webbing tape cutting machine can cut 5 shapes , the width of the cutting is 1-100mm,The webbing tape cutting machine can cut 5 shapes to better suit all kinds of specific needs. the width of the angle cutting is 1-70mm, the cutting angle of the blade can be adjusted freely.

Features:

1: Length, quantity, speed arbitrary adjustment.
2: No material automatic shutdown.
3: Automatic power save data.
4:English touch display. very easy to operate
5: The domestic brand stepper motor feeding, stable performance, precise length.
6: Before and after manual key feeding.
7: Precision calibration function.
8: Arbitrary angle adjustment of 0-45°
9: With a pause not cutting, send a set length cut.
10: Length compensation function.
11: Cutting point dynamic function.
12: The installation of independent research and development of intelligent temperature controller, with digital display function always grasp the quality of materials.

Model

SA-160LRH

SA-120LRH

Available width

Max.110mm width for 90° cutting 100mm for 45 ° cutting

Max.100mm width for 90° cutting 70mm for 45 ° cutting

Cutting length

99999.9m
99999.9m

Cutting angle

0-45° ( can adjustable )

0-45° ( can adjustable )

Power

450W

450W

cutting Knife

Cold and hot cutting

Cold and hot cutting

Cutting speed

120pcs/min

120pcs/min

Cutting precision

0.1mm

0.1mm

Electrical connection

AC 220/110V/50/60HZ

AC 220/110V/50/60HZ
