  • SA-FST100

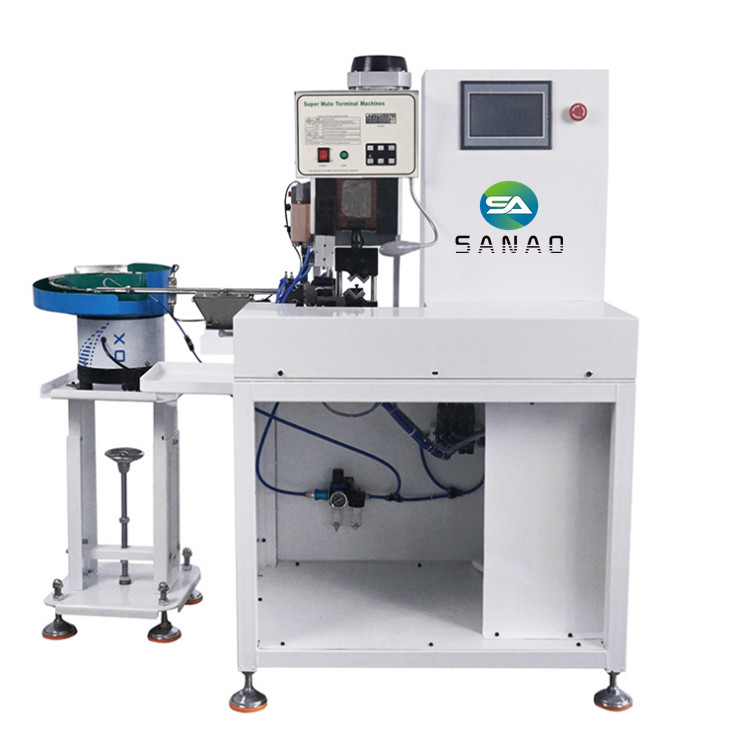

  • Description: SA-FST100 ,TE Connectors bulk terminal stripping twisting and crimping machine with vibration feeding,It is suitable for crimping loose / Single terminals with vibration plate feeding. The operating speed is comparable to that of the chain terminals, saving labor and cost, and having more cost-effective advantages.
  • INQUIRY   EMAIL


SA-FST100 ,Terminal crimping machine with automatic feeding,It is suitable for crimping loose / Single terminals with vibration plate feeding. The operating speed is comparable to that of the chain terminals, saving labor and cost, and having more cost-effective advantages.
1. Based on mute terminal crimping machine, it uses stuck-type mould, and it is easy and convenient to disassemble;

2. Microcomputer chip control, personalized program design, safe and reliable operation;

3. It replaces the expensive batch terminal, and uses more cost-effective bulk terminal;

4. Centrifugal vibration feeding, frequency control of motor speed, accurate positioning of cylinder, and standard riveting;

5. The operating speed is comparable to the batch terminal, it saves labor and cost, and it’s more cost-effective;

6. It can be used as mute terminal crimping machine separately if necessary, and it’s applicable tovertical and horizontal mould.

Model

SA-FST100

Crimping force

2.0T

Dimensions

Conventional 500*860*1360 (mm); Special slide rail type: 500*1050*1360 (mm)

Power supply

AC 220V/50Hz

Weight

about 140KG-170KG

Power consumption

Motor: 250W;  LED light: 220V 1W; Vibration plate: 120W

Crimping capacity

20Kn

Stroke of slider

35mm (40mm)

Crimping frequency

120 times/min

Closing height

26mm; Closing height adjustment 10mm
