Semi automatic crimping machine

Servo Semi-automatic Copper Cable Lug Crimping Machine SA-YJ2

Servo Semi-automatic Copper Cable Lug Crimping Machine SA-YJ2

Conductor Cross-Section：0.3-4mm²
Stripping Length：6-10mm
Cutting Length：1-9999mm
Voltage：110V/220V, 50Hz/60Hz

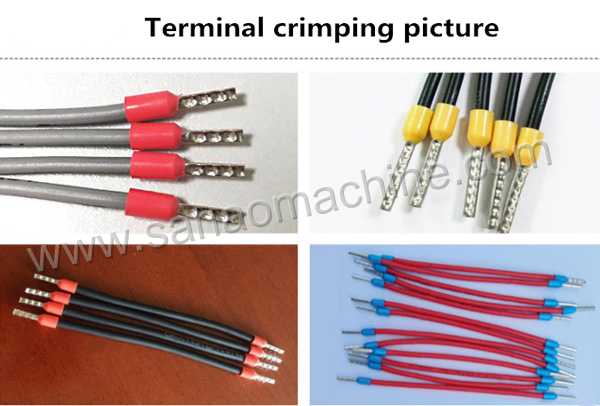

Description: Conductor Cross-Section：0.5-4mm²，The crimp machine is designer for crimping of tubular terminals, battery cable lug , charge terminal ,Non-insulated Terminal, Support hexagonal, quadrilateral and M-shape crimping, Mainly applicable to the new energy configuration line, charging pile and charging gun wiring harness processing, no need to replace the mold, according to the terminal set hexagon size
INQUIRY EMAIL

Conductor Cross-Section：0.5-4mm²，The crimp machine is designer for crimping of tubular terminals, battery cable lug , charge terminal ,Non-insulated Terminal, Support hexagonal, quadrilateral and M-shape crimping, Mainly applicable to the new energy configuration line, charging pile and charging gun wiring harness processing, no need to replace the mold, according to the terminal set hexagon size, easy to adjust, safe operation hexagonal size, easy to adjust, easy operation

Model	SA-YJ2	SA-YJ1
Conductor Cross-Section	0.3-2.5mm²	0.3-2.5mm²
Stripping Length	0.5mm2 - 2.5 mm2（Terminal conduit length should be less than 12mm)	6-10mm
Stripping Length	4.0 mm2（Terminal conduit length should be less than 10mm）	6-10mm
Detect device	detect lack of terminals	detect lack of terminals
Gas source	0.5-0.8Mpa (please use clean and dry air)
