  • Servo Motor Driven tubular Terminal Crimping Machine
  • Servo Motor Driven tubular Terminal Crimping Machine
Servo Motor Driven tubular Terminal Crimping MachineServo Motor Driven tubular Terminal Crimping Machine

Servo Motor Driven tubular Terminal Crimping Machine

  • ​SA-100KN
  • Description: This hexagon edge wire crimping machine is suitable for crimping of non-standardized terminals and compression type terminals with no need to change die set.
  • INQUIRY   EMAIL

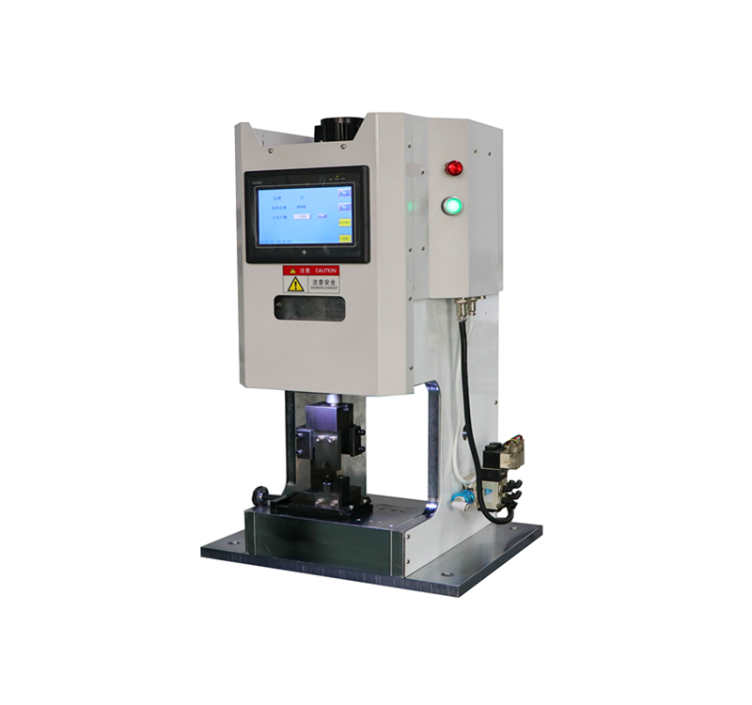

Servo Semi-automatic Cable Lug crimping machine

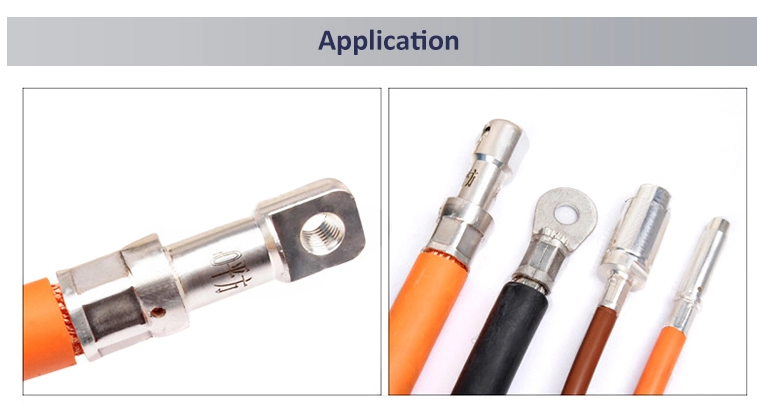

Conductor Cross-Section:1-75 mm²,This Servo crimp machine is designer for crimping of small square tubular terminals, special for battery cable lug , EV charge terminal ,Non-insulated Terminal, Support hexagonal, quadrilateral and M-shape crimping, it’s popular with customer because of Not need changing crimping mold if you need crimping different size terminal .

Features:

1.This machine is mainly for the crimping of small square tubular terminals;

2.The industrial grade control chip cooperates with the high precision servo drive to make the machine run stably;

3.PLC control system, instantaneously change the crimping range of different terminals, touch screen operation mode;

4.2.5-35 mm2 closed tubular terminal crimping without changing the crimping die, instantly changing the size of the cutting edge;

5.Suitable for crimping operations of non-standardized terminals or crimped terminals; 6.No need to change the mold, high accuracy;

7.The pressure joint can be fully opened, suitable for crimping of medium or indirect continuous or large square terminals.

8.The position of the actual square of the wire can be adjusted;

9. Compact structure, space saving and low noise.

Model

SA-100KN

SA-300KN

Conductor Cross-Section

1-75 mm²

5-120mm²

Crimp Force

100KN

300KN

Stroke

40mm

35mm

Crimp Width

Max 12.5mm (can custom)

Power Supply

110/220VAC,50/60Hz

Power

2000W

2300W

Weight

180kg

300kg

Dimensions

45*40*80cm

43*50*86cm



Our Company

SUZHOU SANAO ELECTRONICS CO., LTD is a professional wire processing machine manufacturer, based on sales innovation and service. As a professional company, we have a large number of professional and technical personnel, strong after-sales services and first-class precision machining technology. Our products are widely used in electronic industry, auto industry, cabinet industry, power industry and aerospace industry.Our company provides you with products and services of good quality, high efficiency and integrity.Our commitment: with the best price and the most dedicated service and tireless efforts to make customers improve productivity and meet customers' needs.

Our mission: for the interests of customers, we strive to innovate and create the world's most innovative products.Our philosophy: honest, customers-centric, market-oriented, technology-based, quality assurance.Our service: 24-hour hotline services.You are welcome to call us. The company has passed ISO9001 quality management system certification , and has been recognized as municipal enterprise engineering technology center , municipal science and technology enterprise , and national high-tech enterprise .

FAQ

Q1: Are you a trading company or a manufactory?

A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !

Q2: What’s your guarantee or the warranty of the quality if we buy your machines?

A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q3: When can I get my machine after I paid?

A3: The delivet time is based on the exact machine you confirmed.

Q4: How can I install my machine when it arrives?

A4: All machine will be install and debug well before delivery . English Manual and operate video will be together send with machine . you can directly use when you got our machine . 24 hours online if you have any questions

Q5: How about the spare parts?

A5: After we deal down all the things , we will offer you a spare parts list for your reference.
