Automatic tube cut machine

  • Automatic Coaxial Cable Cutting machine
  • Automatic Coaxial Cable Cutting machine
  • Automatic Coaxial Cable Cutting machine
Automatic Coaxial Cable Cutting machineAutomatic Coaxial Cable Cutting machineAutomatic Coaxial Cable Cutting machine

Automatic Coaxial Cable Cutting machine

  • Model:SA-100ST
  • Description: A versatile and reliable cutting machine for cutting to length of heat shrink tubes, fiberglass tubes,tubes, silicone tubes,yellow wax tubes, PVC tubes, PE tubes, plastic tubes, rubber hoses
  • INQUIRY   EMAIL

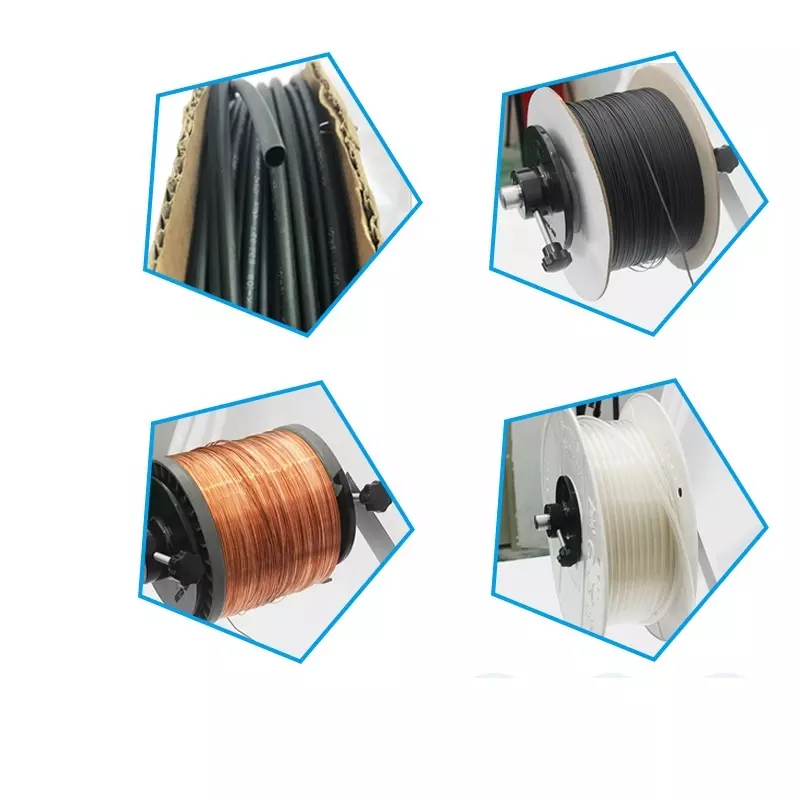

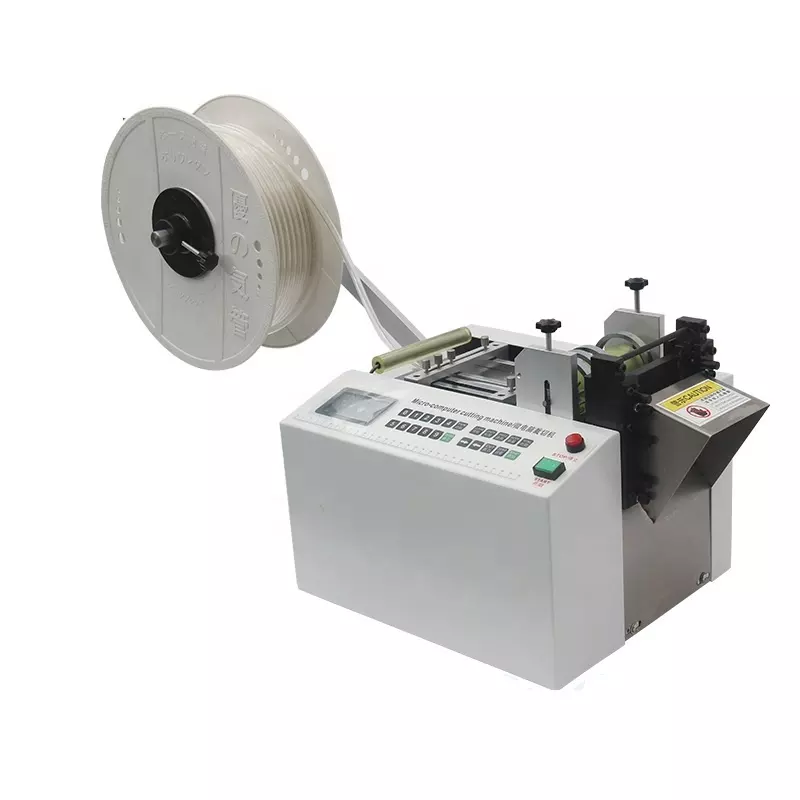

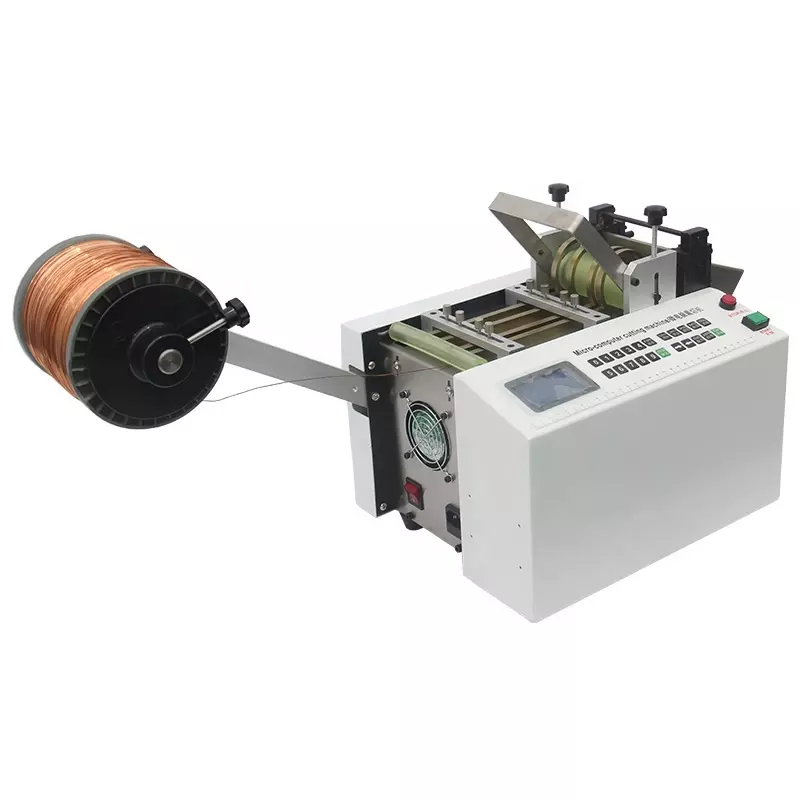

This is an automatic cutting machine for processing heat-shrink tubing and other materials, such as fiberglass tubes, Teflon tubes, silicone tubes,

yellow wax tubes, PVC tubes, PE tubes, plastic tubes, rubber hoses, wire ropes, cables and non-adhesive strip materials like belt loop, string,

plastic zipper, elastic band, small webbing, insulation paper, copper foil, copper sheet, nickel tape, cotton tape, etc.

1.High-speed feeding, microcomputer program control, accuracy up to 0.1mm;

2.High efficiency and high accuracy: up to 150 times per minute;

3.Cutting type: Cold cutting with a durable cold knife;

4.Fully automatic cutting of various tubular and banded materials;

5.Suitable for cutting heat shrink tubes, fiberglass tubes, teflon tubes, silicone tubes, yellow wax tubes, PVC tubes, PE tubes, plastic tubes, rubber hoses, wire ropes, cables and non-adhesive strip materials like belt loop, string, plastic zipper, elastic band, small webbing, insulation paper, copper foil, copper sheet, nickel tape, cotton tape, etc.

6.Automatic operation: It works automatically only by setting length and quantity;

7.Automatic stopper: It stops automatically if materials run out during operation;

8.Memory function: the previously set length, quantity and speed will not be erased even if power off & on;

9.We supply different models to fit your requests.

Model

SA-100ST

Cutting length

1mm-99999mm

Cutting accuracy (mm)

0.1mm

Max cutting width (mm)

1-100mm

Cutting speed

150

Knife max temperature (C)

cold knife

Voltage/ frequency

110V/220V50/60

Rating Power(W)

750W

Size(mm)

(L)430×(W)300×(H)480

Weight(NW)

30kg




Inquiry:
