Automatic strip cutting machine

  • Automatic 1-16mm2 wire cutting stripping machine
  • Automatic 1-16mm2 wire cutting stripping machine
  • Automatic 1-16mm2 wire cutting stripping machine
Automatic 1-16mm2 wire cutting stripping machineAutomatic 1-16mm2 wire cutting stripping machineAutomatic 1-16mm2 wire cutting stripping machine

Automatic 1-16mm2 wire cutting stripping machine

  • Mode: SA-8160
  • Description: wire range: 0.2-16mm²,Full automatic stripping and cutting single wire at the same time ,Widely used in wire harness processing industry, It’s Greatly Improved stripping speed and save labour cost.
  • INQUIRY   EMAIL

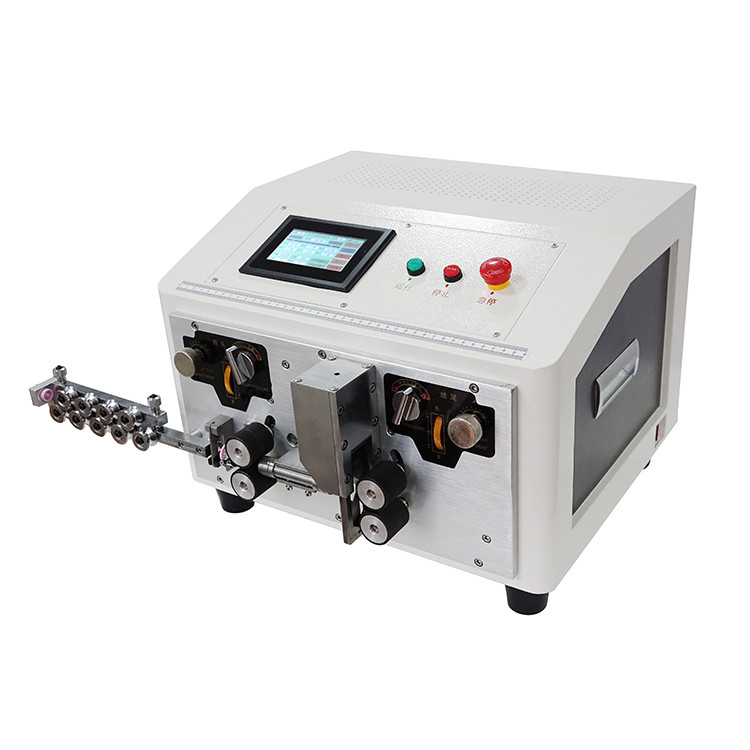

1-16mm2 wire cutting stripping machine

Processing wire range: 1-16mm2 ,Full automatic stripping and cutting single wire at the same time ,Widely used in wire harness processing industry for automotive electrical appliances, instrumentation,lamps, household appliances, It’s Greatly Improved stripping speed and save labour cost.

Introduction:

1.It’s fully automated CNC equipment that introduces advanced technologies from Japan and Taiwan ,Computer intelligent control.

2.Suitable for cutting and stripping PVC cables, Teflon cables, Silicone cables, glass fiber cables etc

3.Easy to operate program with English display , stable quality with 1 year warranty and        low maintenance,

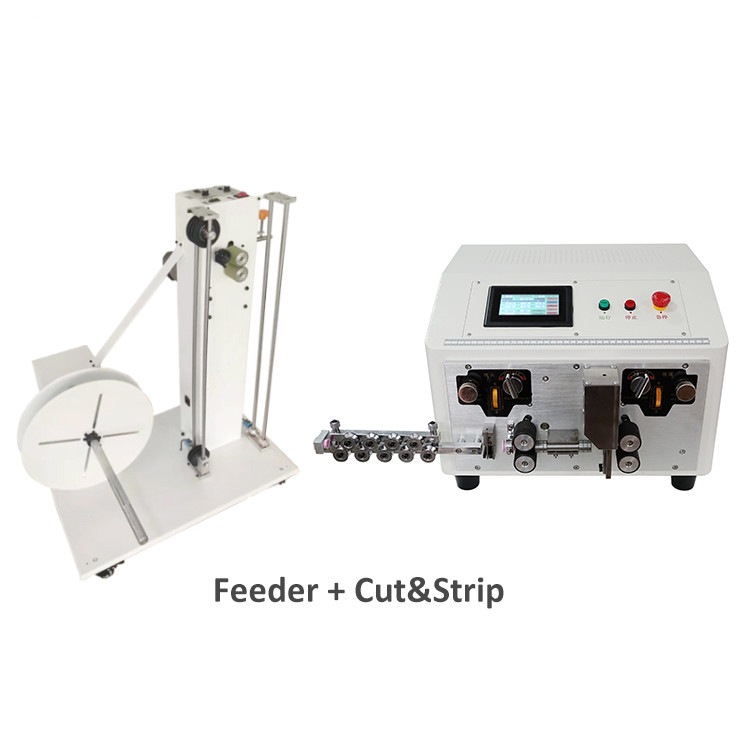

4.Optional external device connection possibility: Wire feeding machine,wire take-out device and Safety protection.

5.Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy,It’s can Greatly Improved stripping speed and save labour cost.


Model

SA-8160

SA-8060

Function

Wire cutting, double-end stripping,middle stripping

Wire cutting, double-end stripping,middle stripping

Wire range

1-16mm2(AWG30#-8#)

1-6mm2(AWG30#-12#)

Cutting length

0.1mm-99999.9mm

0.1mm-99999.9mm

Stripping length

Stripping head:0.1-250mm Stripping tail: 0.1-70mm

Stripping head:0.1-250mm Stripping tail: 0.1-70mm

Stripping accuracy

Silent hybrid stepper motor 0.01mm

Silent hybrid stepper motor 0.01mm

Intermediate strip

Can be customized

Can be customized

Capacity

2000-5000 pcs. / h

2000-5000 pcs. / h

Blade material

Imported tungsten steel / high speed steel

Imported tungsten steel / high speed steel

Power

AC110V/220V  50/60HZ

AC110V/220V  50/60HZ

Body size

470mm*450mm*350mm

470mm*450mm*350mm

Body weight

36.5kg

36.5kg
