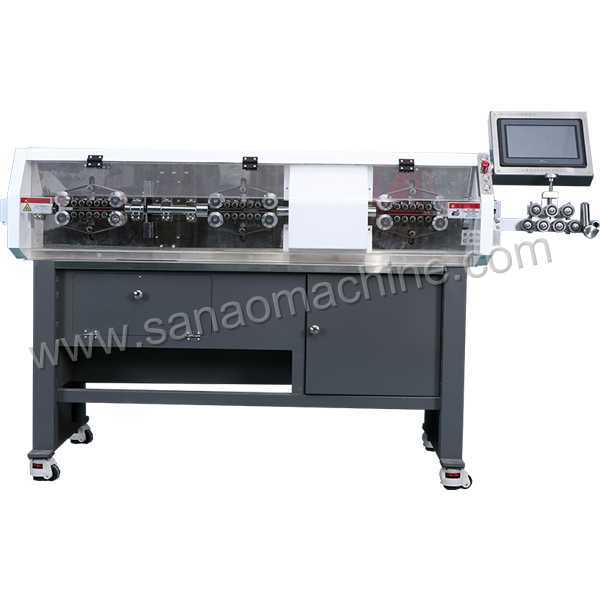

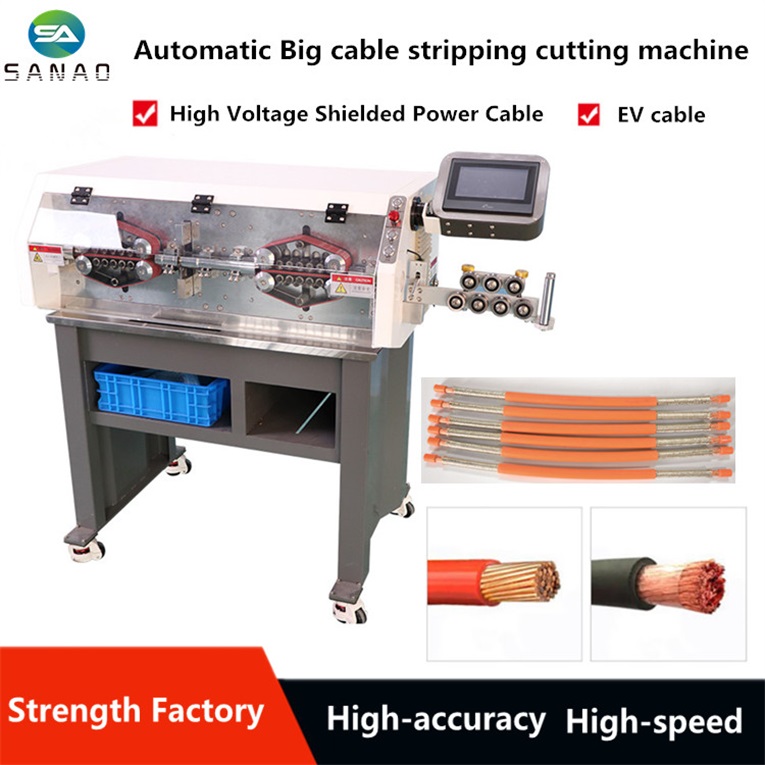

Full automatic power Cable Cutting peeling equipment
Processing wire range: 1-120mm²,Full large wire stripping and cutting machine, or stripping outer jacketed of sheathed cable (Max. 25 core),It’s Greatly Improved stripping speed and save labour cost.Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy.
Introduction:
1.It’s fully automated CNC equipment that introduces advanced technologies from Japan and Taiwan ,Computer intelligent control.
2.Suitable for cutting and stripping PVC cables, Teflon cables, Silicone cables, glass fiber cables etc
3.Easy to operate program with English display , stable quality with 1 year warranty and low maintenance,
4.Optional external device connection possibility: Wire feeding machine,wire take-out device and Safety protection.
5.Widely used in wire processing in the electronics industry, automotive and motorcycle parts industry, electrical appliances, motors, lamps and toy,It’s can Greatly Improved stripping speed and save labour cost.
Model
SA-H120
Conductor Cross-Section
10-120mm²
Cutting Length
1-99999mm
Cutting Length Tolerances
≤(0.002*L) mm
Jacket Stripping Length
Head 1-800mm;Tail 1-260mm
Conduit Diameter
Φ30mm
Production Rate
Single wire :2300pcs/h
Display Screen
7 inch touch screen
Drive Method
32 wheels drive
Wire Feed Method
Belt feeding wire, no indentation on cable
RV cable full strip max 120mm, sheath wire max 500mm
Sheath wire :800pcs/h (base on wire and cutting length)
