Automatic strip cutting machine

  • Full automatic Long Wire Cutting and Stripping Machine With Conveyor Belt
  • Full automatic Long Wire Cutting and Stripping Machine With Conveyor Belt
Full automatic Long Wire Cutting and Stripping Machine With Conveyor BeltFull automatic Long Wire Cutting and Stripping Machine With Conveyor Belt

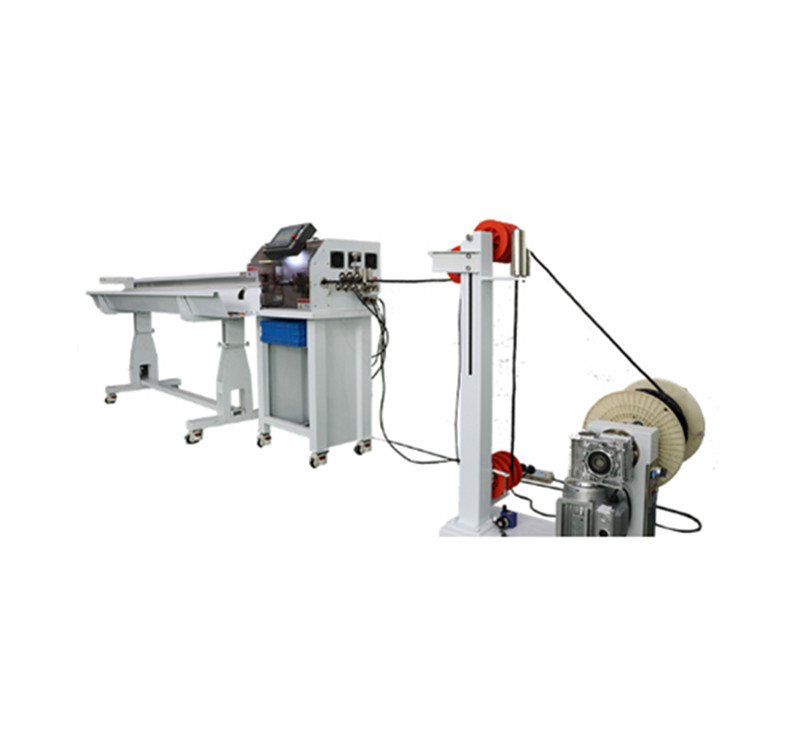

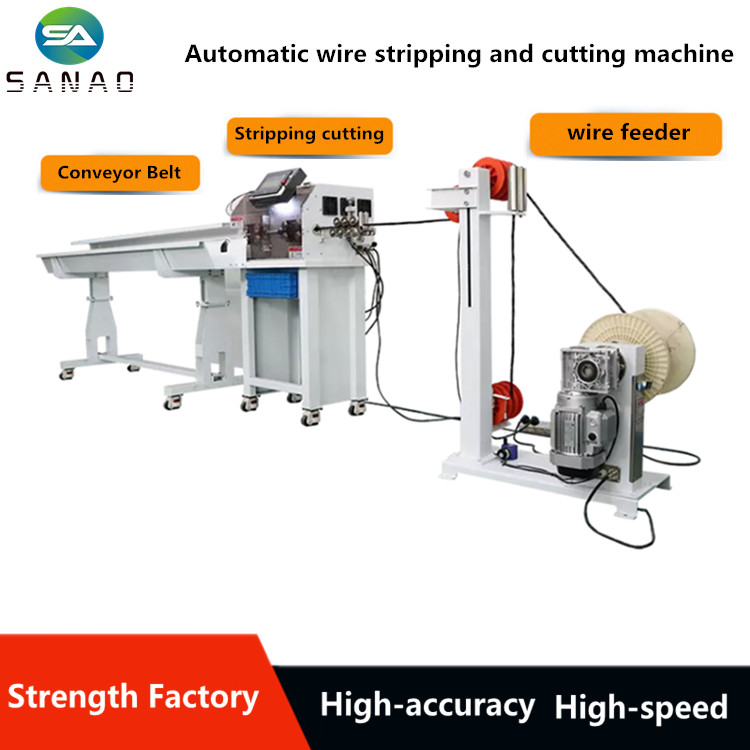

Full automatic Long Wire Cutting and Stripping Machine With Conveyor Belt

  • Model:SA-H03
  • Description: This model is designed for long wire stripping and cutting machine ,it can collect the wire after cutting and stripping.Very Easy to collect, save time and effort
  • INQUIRY   EMAIL


1.Full automatic Long Wire Cutting and Stripping Machine With Conveyor Belt

2.The machine designed for long wire stripping and cutting . Easy to collect, save time and effort,Our machine Collection and integration,the microcomputer automatic computer for the strip line machine is a kind of introduced in Japan, Taiwan, and other advanced automation technology of all of the numerical control equipment.
Advantage:
1.automatically cable cutting and stripping different wires size,stripping single wire and outer jacket of sheathed cable .
2.Drive mode: 16-wheel drive ,silent hybrid stepper motor, servo tool holder.
5.Belt feeding wires, no embossing and scratches
6.Head stripping: 10-120mm ,Tail stripping: 10-240mm
7.Inner Core Stripping Length:Head 1-120mm; Tail 1-240mm



Model

SA-H03

SA-H07

Conductor Cross-Section

1-30mm² 1-8 cores

10-70mm² ; 1-5 cores

Cutting Length

1-99999mm

200-99999mm

Cutting Length Tolerances

≤(0.002*L) mm

≤(0.002*L) mm

Jacket Stripping Length

Head 10-120mm; Tail 10-240mm

Head 30-200mm; Tail 30-150mm

Inner Core Stripping Length

Head 1-120mm; Tail 1-240mm

Head 1-30mm; Tail 1-30mm

Conduit Diameter

Φ16mm

Φ25mm

Production Rate

Single wire :2300pcs/h
Sheath wire :800pcs/h (base on wire and cutting length)

single wire : 2800pcs/h
Sheath wire 800pcs/h (base on wire and cutting length)

Display Screen

7 inch touch screen

7 inch touch screen

Drive Method

16 wheels drive

32 wheels drive

Wire Feed Method

Belt feeding wire, no indentation on cable

Belt feeding wire, no indentation on cable
