Automatic strip cutting machine

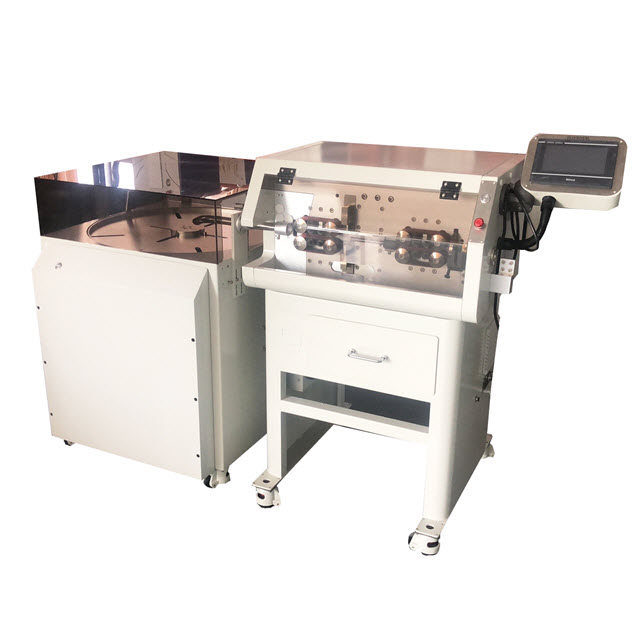

  • Long Wire cutting Stripping Machine With Coiling System
  • Long Wire cutting Stripping Machine With Coiling System
Long Wire cutting Stripping Machine With Coiling System Long Wire cutting Stripping Machine With Coiling System

Long Wire cutting Stripping Machine With Coiling System

  • Model:SA-H03
  • Conductor Cross-Section:6-30mm² (1-7 cores )
  • Cutting Length:1-99999mm
  • Jacket Stripping Length:Head 10-120mm; Tail 10-240mm
  • Description: The machine designed for 2,3,4,5,6 ,7 cores cable full-automatic cutting and stripping both jacket and inner cores. It supports max 7 cores sheathed cable processing.Our machine Collection and integration,the microcomputer automatic computer for the strip line machine is a kind of introduced in Japan, Taiwan, and other advanced automation technology of all of the numerical control equipment.
  • INQUIRY   EMAIL

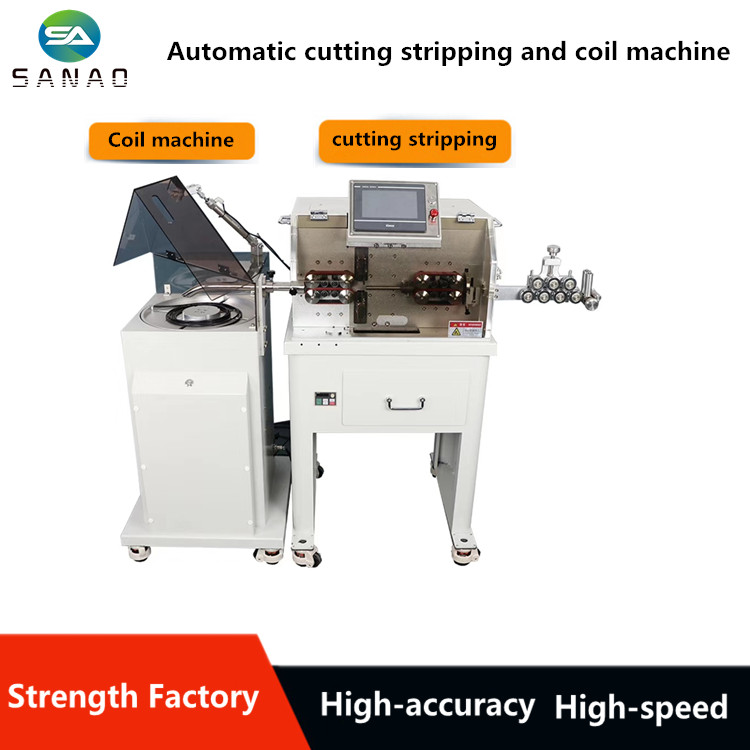

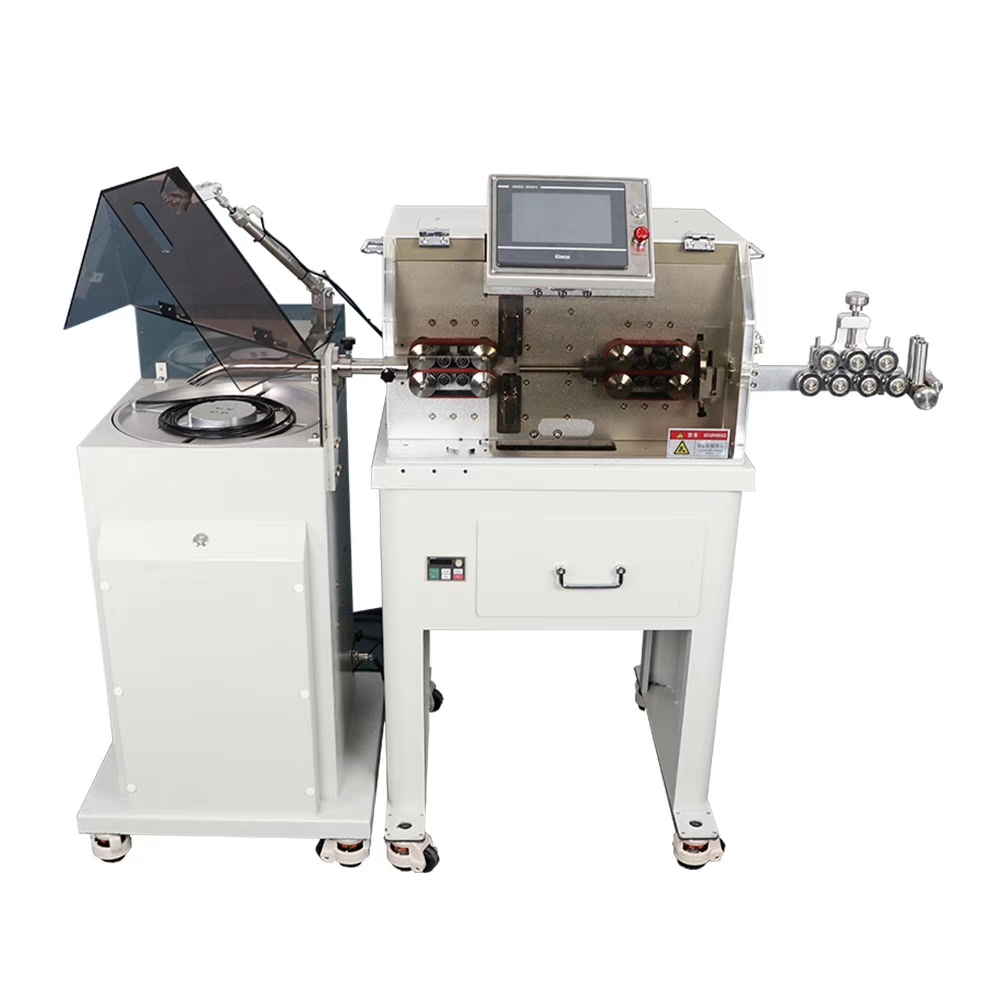

1.wire coil machine adopts the Servo motor which make the running and stop accurate, it is equipped with pulley block, buffer pulley, winding parts and etc., the whole machine uses the same main board to coordinate all the above actions, you can choose to equip the high-speed thick wire stripping machine and cable type CNC stripping machine to greatly reduce the labor input in stripping process, especially suitable for the factory who process the long wire, there’s no need to use the additional collection device when process the 5-100 meters wire.

2.The machine designed for 2,3,4,5,6 ,7 cores cable full-automatic cutting and stripping both jacket and inner cores. It supports max 7 cores sheathed cable processing.Our machine Collection and integration,the microcomputer automatic computer for the strip line machine is a kind of introduced in Japan, Taiwan, and other advanced automation technology of all of the numerical control equipment.
Advantage:

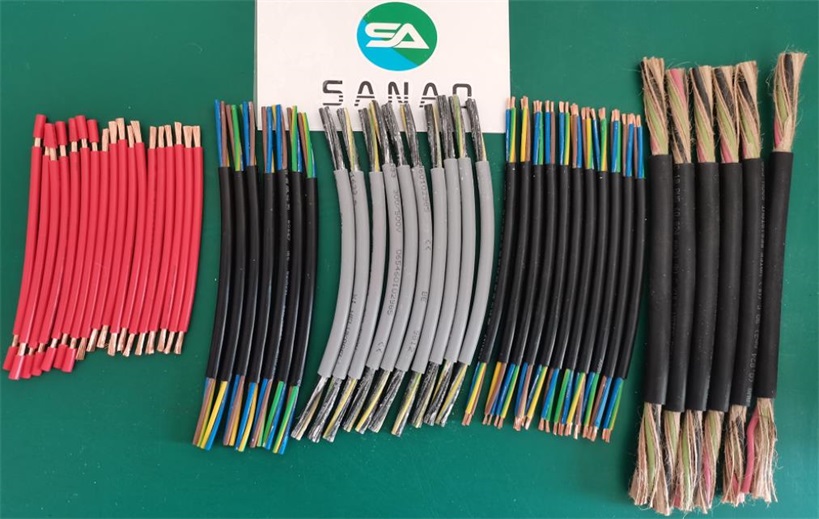

1.automatically cable cutting and stripping different wires size,stripping single wire and outer jacket of sheathed cable .
2.Drive mode: 16-wheel drive ,silent hybrid stepper motor, servo tool holder.
5.Belt feeding wires, no embossing and scratches
6.Head stripping: 10-120mm ,Tail stripping: 10-240mm
7.Inner Core Stripping Length:Head 1-120mm; Tail 1-240mm

Model

SA-H03

SA-H07

Conductor Cross-Section

6-30mm² 1-7 cores

10-70mm² ; 1-5 cores

Cutting Length

1-99999mm

200-99999mm

Cutting Length Tolerances

≤(0.002*L) mm

≤(0.002*L) mm

Jacket Stripping Length

Head 10-120mm; Tail 10-240mm

Head 30-200mm; Tail 30-150mm

Inner Core Stripping Length

Head 1-120mm; Tail 1-240mm

Head 1-30mm; Tail 1-30mm

Conduit Diameter

Φ16mm

Φ25mm

Production Rate

Single wire :2300pcs/h
Sheath wire :800pcs/h (base on wire and cutting length)

single wire : 2800pcs/h
Sheath wire 800pcs/h (base on wire and cutting length)

Display Screen

7 inch touch screen

7 inch touch screen

Drive Method

16 wheels drive

32 wheels drive

Wire Feed Method

Belt feeding wire, no indentation on cable

Belt feeding wire, no indentation on cable
