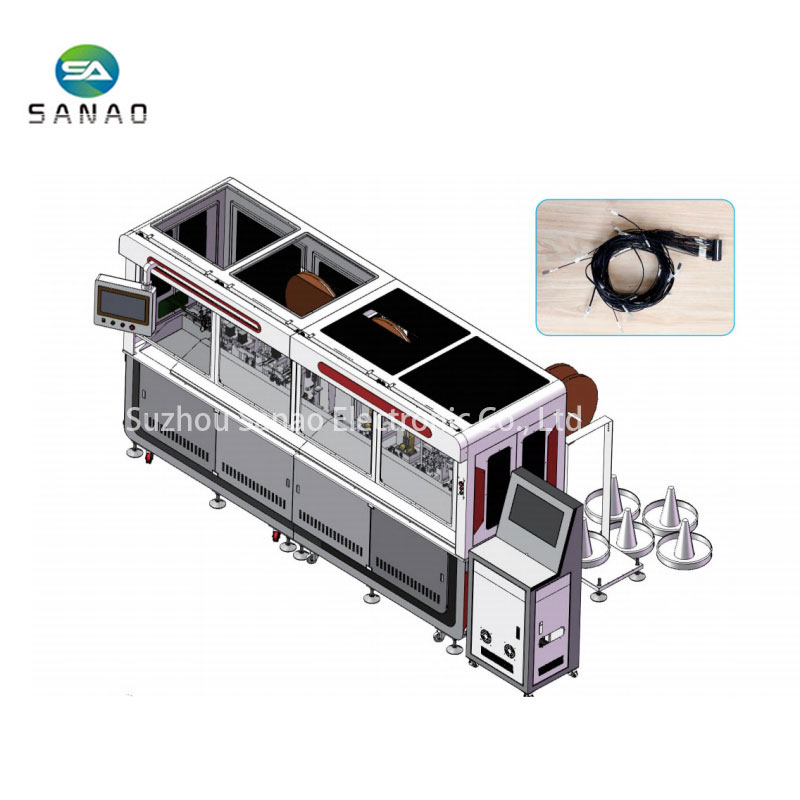

Double Head Wire Terminal Crimping Number Tube Insertion Machine

SA-NH2800
Description: SA-NH2800 Full automatic Double Head crimping terminal , Number Tube insertion Machine with connector insert machine .
INQUIRY EMAIL

SA-NH2800

The whole machine adopts the concept of modular flexible design, one machine can easily process many different products, and each functional module can be opened or closed freely in the program,Machine Main parts brand Taiwan HIWIN screw, Taiwan AirTAC cylinder, South Korea YSC solenoid valve, leadshine servo motor ( China brand ) , Taiwan HIWIN slide rail, Japanese imported bearings.This is a high quality machine.

Colour touch screen operation interface, parameter setting is intuitive and easy to understand. The machine has a programmes saving function, which is convenient to use directly next time without setting the machine again, simplifying the operation process.
Advantage
1: Different terminals only need to replace the applicator, This is easy to operate,and multi-purpose machine.
2: Advanced software and English colour LCD touch screen make it easy to operate. All parameters can be directly set on our machine
3: The machine has a programmes saving function,simplifying the operation process.
4 .AdoptingServo terminal machine, the machine quality is more stable and reliable.
5: Machines can be customised according to customer requirements, welcome to inquire!

Model	SA-NH2800
Power supply	AC220V50/60Hz
System function	Single (double) end stripping, single (double) end crimping , single (double) end laser marking, single-ended adhesive shell insertion
Production capacity	1600-2200/h (depending on the wire)
The range of processable wires	AWG#26-AWG#16
Cutting length	230mm-9999mm (Minimum cutting length varies according to the peeling size)
Cutting accuracy	1mm+ cut length x0.1% or less
Opening length	0-20mm
Pipe threading length	12-30mm
Sleeve specification	φ2-φ6
Coding method	Laser (ultraviolet)
Air pressure	5MPa-7MPa(air consumption approximately 130N/min-180N/min)
weight	Length 3900x width 1020x height 1900mm(excluding protrusions)
Brand of main components	Taiwan HIWIN /TBI/ Fulei lead screws, Taiwan Airtac cylinder solenoid valves, Lesai/Huichuan servo motors, Fulei slide rails, Japanese imported bearings.
