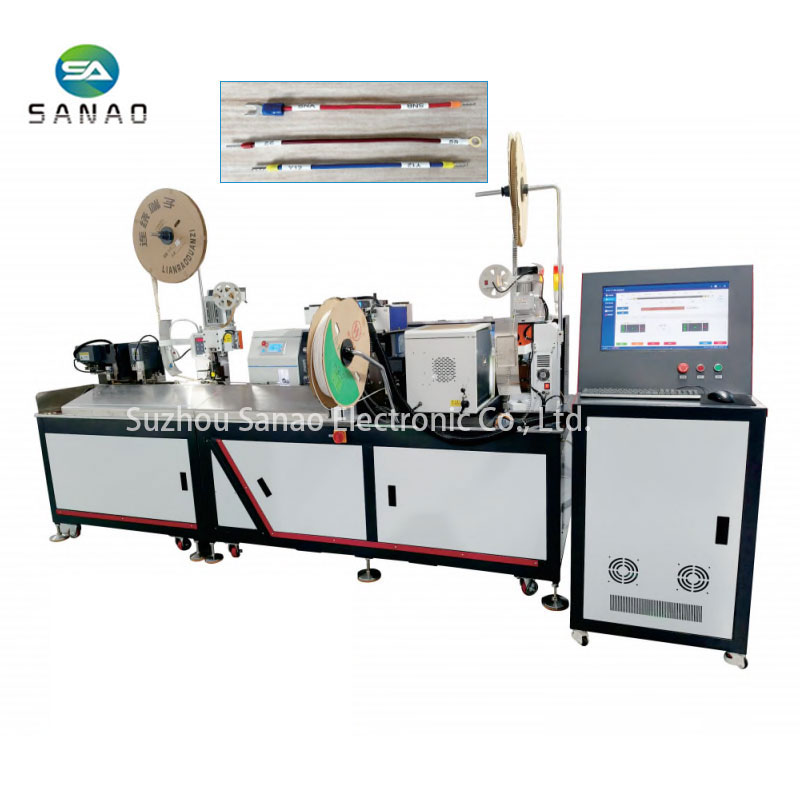

Double Head Wire Terminal Crimping Number Tube Laser Marking Machine

SA-3000NX
Description: SA-3000NX Fully Automatic Double end crimping Terminal Machine,number tube laser marking machine,The machine has achieved multi station combination, and this machine customizes two joint terminal machines for customers, with different molds for different terminals, and matches two ferrules terminal machines of 0.5-4mm2. Realize multi-purpose use of one machine. Machines can be customized according
INQUIRY EMAIL

SA-3000NX

The whole machine adopts the concept of modular flexible design, one machine can easily process many different products, and each functional module can be opened or closed freely in the program,Machine Main parts brand Taiwan HIWIN screw, Taiwan AirTAC cylinder, South Korea YSC solenoid valve, leadshine servo motor ( China brand ) , Taiwan HIWIN slide rail, Japanese imported bearings.This is a high quality machine.

The terminal crimping machine is integrally formed of ductile iron. The whole machine has strong rigidity and stable crimping height,standard machine with a stroke of 30mm OTP high precision applicator , compared with ordinary dies, high precision applicator feed crimp more stable, crimp better results!

Colour touch screen operation interface, parameter setting is intuitive and easy to understand. The machine has a programmes saving function, which is convenient to use directly next time without setting the machine again, simplifying the operation process.
Advantage
1: Different terminals only need to replace the applicator, This is easy to operate,and multi-purpose machine.
2: Advanced software and English colour LCD touch screen make it easy to operate. All parameters can be directly set on our machine
3: The machine has a programmes saving function,simplifying the operation process.
4 .Adopting servo motors, the machine quality is more stable and reliable.
5: Machines can be customised according to customer requirements, welcome to inquire!

Model	SA-3000NX
Power supply	Single-phase AC220V50/60Hz 16A
Function	Wire cutting, single (double) end stripping, single (double) end crimping terminals, single (double) end crimping terminals (tube type), single (double) end threading (and heat shrinking), single (double) end twisting, single (double) end laser marking
Production capacity	Double-voltage double-threading number tube 1100-1600, single-voltage single-threading number tube 1500-2000(depending on the terminal of the wire)(continuous operation without stopping state)
Wire specification	AWG26#-AWG10#
Cutting line length	100mm-9999mm(set value: 0.1mm unit)
Peeling length	0-15mm
Pipe threading specification	12-25mm 2.5-7.0(Pipe diameter)
Crimping force	2.0 T - 3.0 T
Compressed air	0.5 MPa to 0.8 MPa (170 N/min)
Mechanical dimensions	Length: 3300Wx Width: 1020x height: 1860(mm) (excluding protrusions)
Detection device	Air pressure detection, wire presence detection, crimping terminal presence detection, pressure monitoring (optional)
Brand of main components	Taiwan HIWIN /TB1/ Fulei lead screws, Taiwan Yade pneumatic cylinder solenoid valves, Leisai/Huichuan Hefu motors, Fulei slide rails, imported from Japan.
