Automatic cable crimping machine

  • Full Automatic five Wire Tinning Machine for double head SA-Z05
  • Full Automatic five Wire Tinning Machine for double head SA-Z05
  • Full Automatic five Wire Tinning Machine for double head SA-Z05
Full Automatic five Wire Tinning Machine for double head SA-Z05Full Automatic five Wire Tinning Machine for double head SA-Z05Full Automatic five Wire Tinning Machine for double head SA-Z05

Full Automatic five Wire Tinning Machine for double head SA-Z05

  • Description: Full Automatic five Wire Tinning Machine for double head Full automatic Five Wire cable cutting and striping twisting tinning machine for double head in one time ,It’s Greatly Improved stripping speed ,save labor cost and improve Feature 1.Micro-computer controlled system, high accuracy wire cutting stripping. 2.Wire cutting, stripping and crimping are completed one time. 3.Fast speed, high
  • INQUIRY   EMAIL

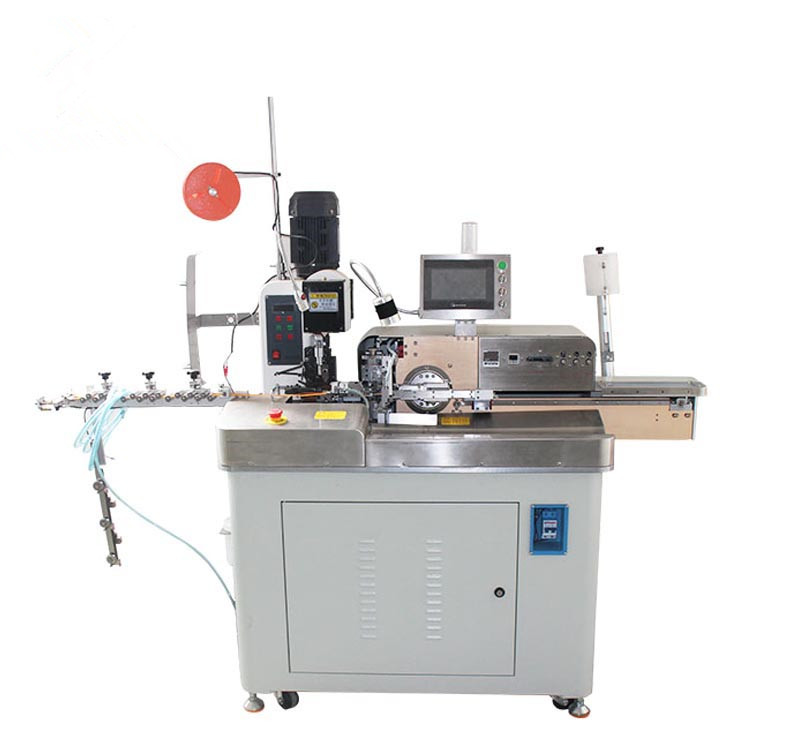

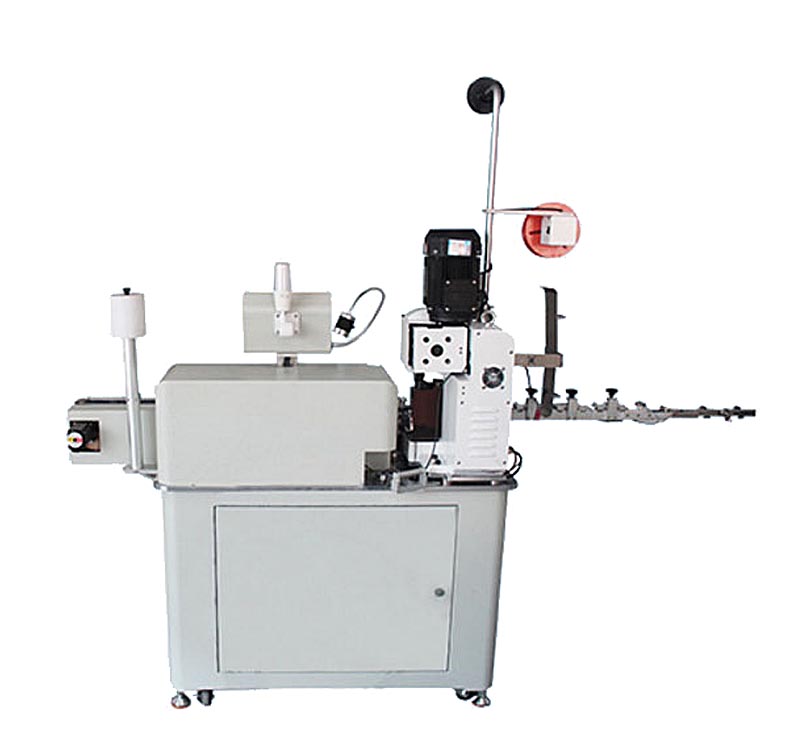

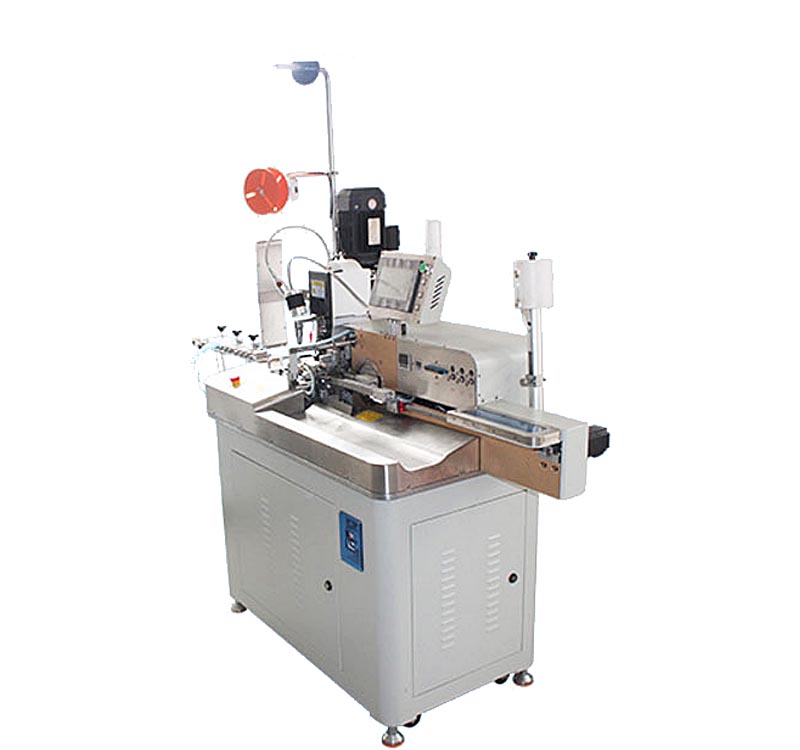

Full Automatic five Wire Tinning Machine for double head

Full automatic Five Wire cable cutting and striping twisting tinning machine for double head in one time ,It’s Greatly Improved stripping speed ,save labor cost and improve

Feature

1.Micro-computer controlled system, high accuracy wire cutting stripping.

2.Wire cutting, stripping and crimping are completed one time.

3.Fast speed, high efficiency, easy operation

4.Function: wire cutting, single-end stripping, double-end stripping, double-end twisting, double head tinning

6.LCD screen, high-definition, easy to operate.

Model

SA-Z01

SA-Z02

SA-Z05

Capacity

One lines at the same time

Two lines at the same time

five lines at the same time

Cable length

8mm-99999mm

35-99999mm

35-99999mm

Stripping Length

0-10mm

0-10mm

0-10mm

Twisting Length

2-10mm

2-10mm

2-10mm

Processing Range

AWG18-28#

AWG18-28#

AWG14-AWG32

Machine Production Rate

About 4200 pcs/h

About 4200 pcs/h

About 6500 pcs/h

Power Supply

110/220VAC,50/60Hz

Weight

About 260kg

About 260kg

about 450KG
