Home > Products > Automatic cable crimping machine

Automatic cable crimping machine

Full automatic wire cutting terminal crimping equipment for wire

SA-ST100
Description: Full automatic double end terminal crimping machine for wire Full automatic single /double Wire cutting and striping terminal crimping machine, double head automatic crimping machine for PVC insulated Copper wires. It’s Greatly Improved stripping speed and save labor cost. 1.Micro-computer controlled system, high accuracy wire cutting stripping. 2.Wire cutting, stripping and crimping are compl
INQUIRY EMAIL

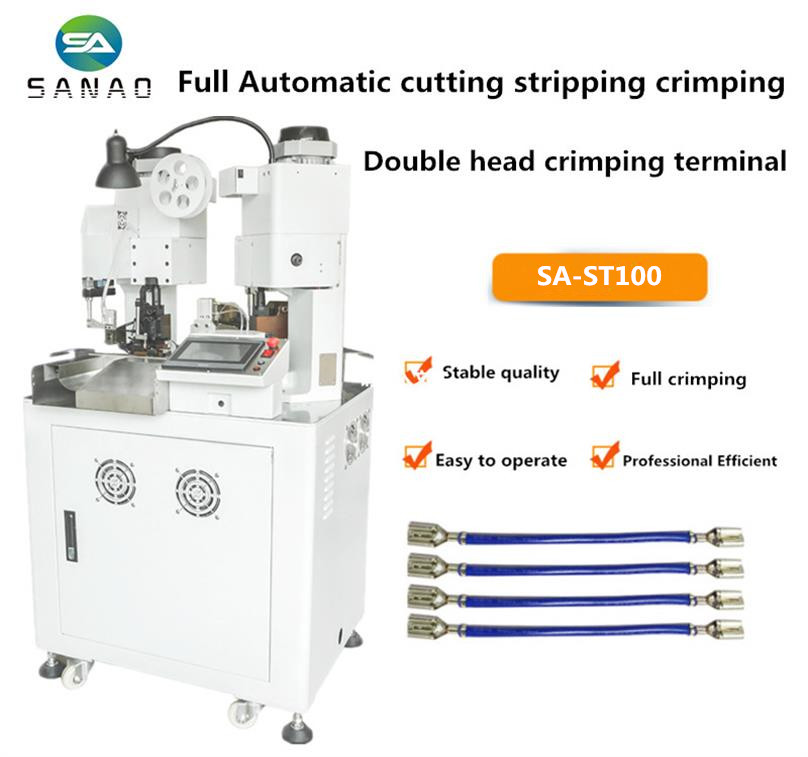

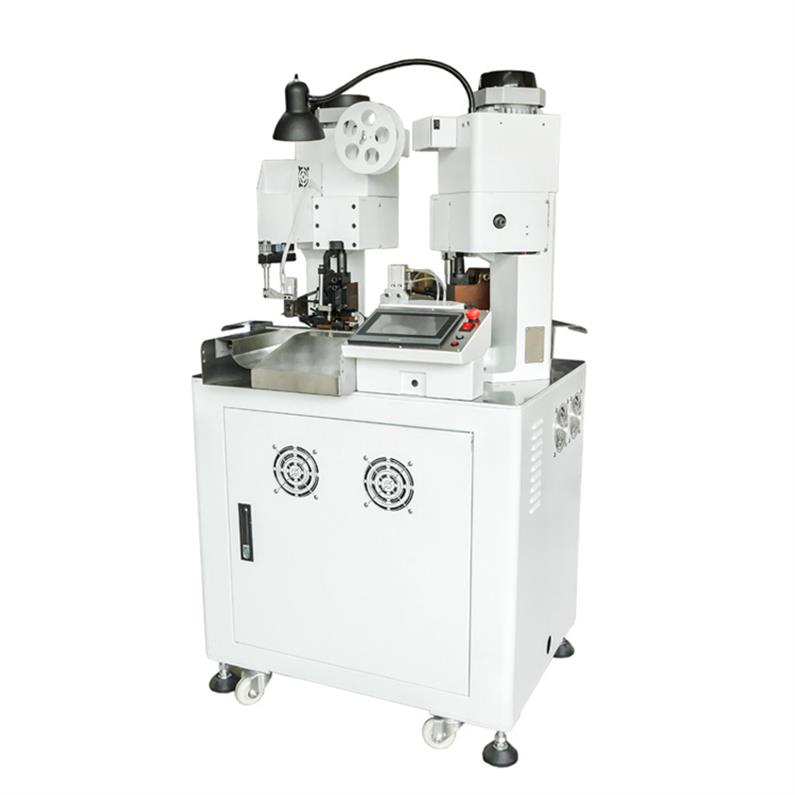

Full automatic double end terminal crimping machine for wire

Full automatic single /double Wire cutting and striping terminal crimping machine, double head automatic crimping machine for PVC insulated Copper wires. It’s Greatly Improved stripping speed and save labor cost.

1.Micro-computer controlled system, high accuracy wire cutting stripping.

2.Wire cutting, stripping and crimping are completed one time.

3.Fast speed, high efficiency, easy operation

4.Function: wire cutting, single-end stripping, double-end stripping, single-end twisting, 5.single-end crimping, multi-section stripping.

6.LCD screen, high-definition, easy to operate.

Model	SA-ST100	SA-ST200	SA-ST300	SA-ST400	SA-ST500
Features	Regular	Two wire	Thin wire	Gold pin	Thick wire
Available Wire Size	AWG18-28#	AWG18-28#	AWG20-32#	AWG18-28#	AWG12-26#
Cutting Length	45-999mm
Length Tolerance	±0.2%*L
Stripping Length	0-10mm
Detection Device	Lack wire detection, Lack terminal detection, Crimp detection, Pressure detection
Machine Production Rate	About 4000 pcs/h
Air Connection	0.4-0.6MPa
Power Supply	110/220VAC,50/60Hz
Power	2300W
Weight	About 320kg
Dimensions	12060200cm
