Automatic stripping crimping machine

  • Full automatic cutting stripping terminal crimping machine
  • Full automatic cutting stripping terminal crimping machine
Full automatic cutting stripping terminal crimping machineFull automatic cutting stripping terminal crimping machine

Full automatic cutting stripping terminal crimping machine

  • SA-DT100
  • Description: SA-DT100,Full automatic single /double Wire cutting and striping terminal crimping machine, single head automatic crimping terminal the other head stripping twisting machine for Copper wires ,Different terminal different crimping applicator , it uses stuck-type mould, and it is easy and convenient to disassemble ,It’s Greatly Improved stripping speed and save labor cost.
  • INQUIRY   EMAIL

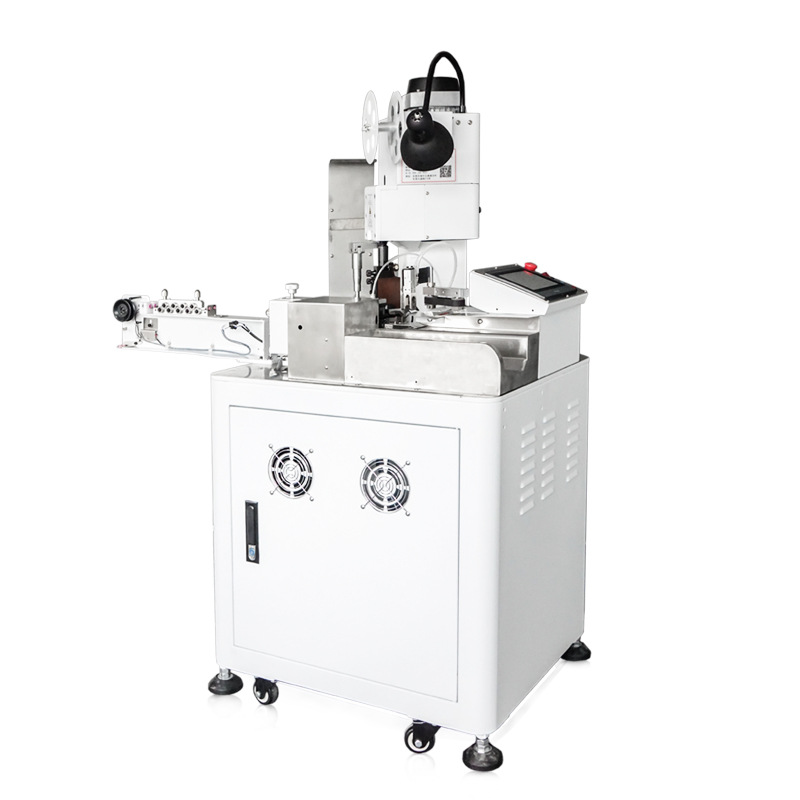

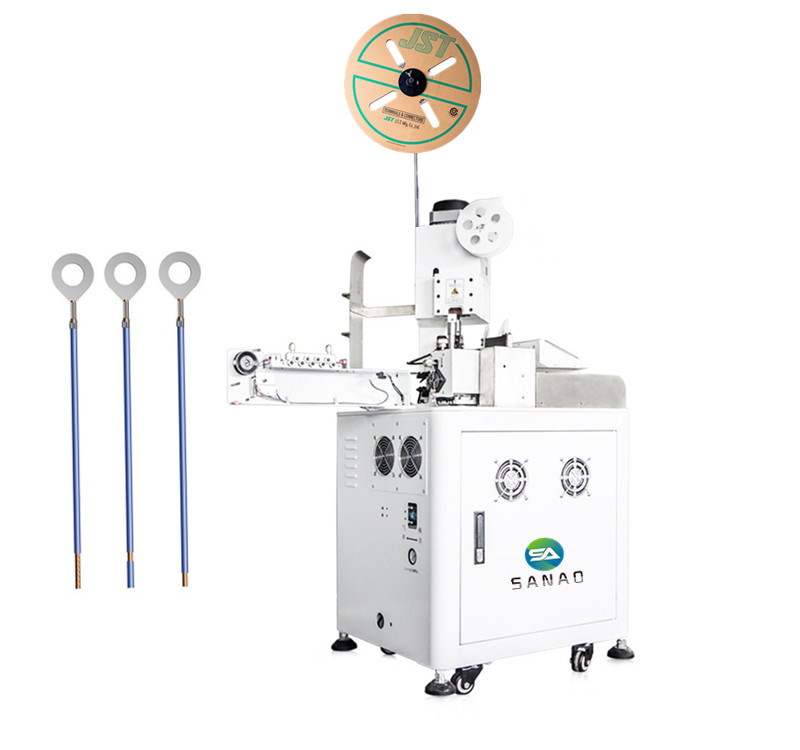

Full automatic wire cutting stripping terminal crimping machine .

Full automatic single /double Wire cutting and striping terminal crimping machine, single head automatic crimping terminal the other head stripping twisting machine for Copper wires ,Different terminal different crimping applicator , it uses stuck-type mould, and it is easy and convenient to disassemble ,It’s Greatly Improved stripping speed and save labor cost.
1.Micro-computer controlled system, high accuracy wire cutting stripping crimping.
2.Wire cutting, stripping Twisting and crimping are completed one time.
3.English LCD screen easy operation
4.Different terminal and different applicator , it uses stuck-type mould, and it is easy and convenient to disassemble

Model

SA-DT100

SA-DT200

SA-DT300

SA-DT400

SA-DT500

SA-DT600

Features

Regular wire

Two wires

Thin wires

Gold pin terminal

Thick wire

Twin wire

Available Wire Size

AWG18-28#

AWG18-28#

AWG20-32#

AWG18-28#

AWG12-26#

AWG18-28#

Cutting Length

35-999mm

Length Tolerance

±0.2%*L

Stripping Length

0-10mm

Twisting Length

2-20mm

Production Rate

About 4200 pcs/h

Detection Device

Lack wire detection, Lack terminal detection, Crimp detection, Pressure detection

Air Connection

0.4-0.6MPa

Power Supply

110/220VAC,50/60Hz

Power

1800W

Weight

About 240kg

Dimensions

120*60*200cm



Our Company

SUZHOU SANAO ELECTRONICS CO., LTD is a professional wire processing machine manufacturer, based on sales innovation and service. As a professional company, we have a large number of professional and technical personnel, strong after-sales services and first-class precision machining technology. Our products are widely used in electronic industry, auto industry, cabinet industry, power industry and aerospace industry.Our company provides you with products and services of good quality, high efficiency and integrity.Our commitment: with the best price and the most dedicated service and tireless efforts to make customers improve productivity and meet customers' needs.

Our mission: for the interests of customers, we strive to innovate and create the world's most innovative products.Our philosophy: honest, customers-centric, market-oriented, technology-based, quality assurance.Our service: 24-hour hotline services.You are welcome to call us. The company has passed ISO9001 quality management system certification , and has been recognized as municipal enterprise engineering technology center , municipal science and technology enterprise , and national high-tech enterprise .

FAQ

Q1: Are you a trading company or a manufactory?

A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !

Q2: What’s your guarantee or the warranty of the quality if we buy your machines?

A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q3: When can I get my machine after I paid?

A3: The delivet time is based on the exact machine you confirmed.

Q4: How can I install my machine when it arrives?

A4: All machine will be install and debug well before delivery . English Manual and operate video will be together send with machine . you can directly use when you got our machine . 24 hours online if you have any questions

Q5: How about the spare parts?

A5: After we deal down all the things , we will offer you a spare parts list for your reference.
