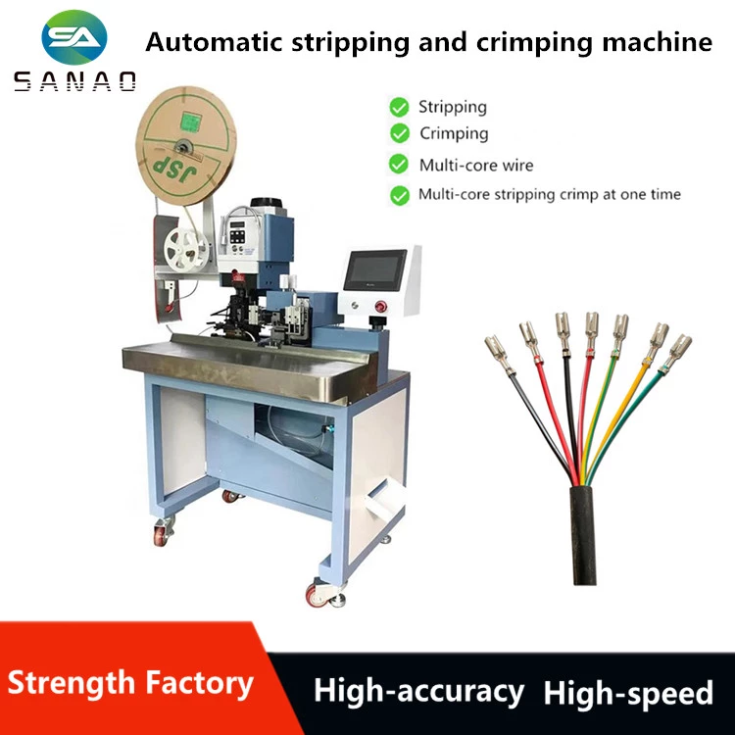

Automatic stripping crimping machine

  • Automatic multi-cores sheath cable stripping crimping machine
  • Automatic multi-cores sheath cable stripping crimping machine
  • Automatic multi-cores sheath cable stripping crimping machine
Automatic multi-cores sheath cable stripping crimping machineAutomatic multi-cores sheath cable stripping crimping machineAutomatic multi-cores sheath cable stripping crimping machine

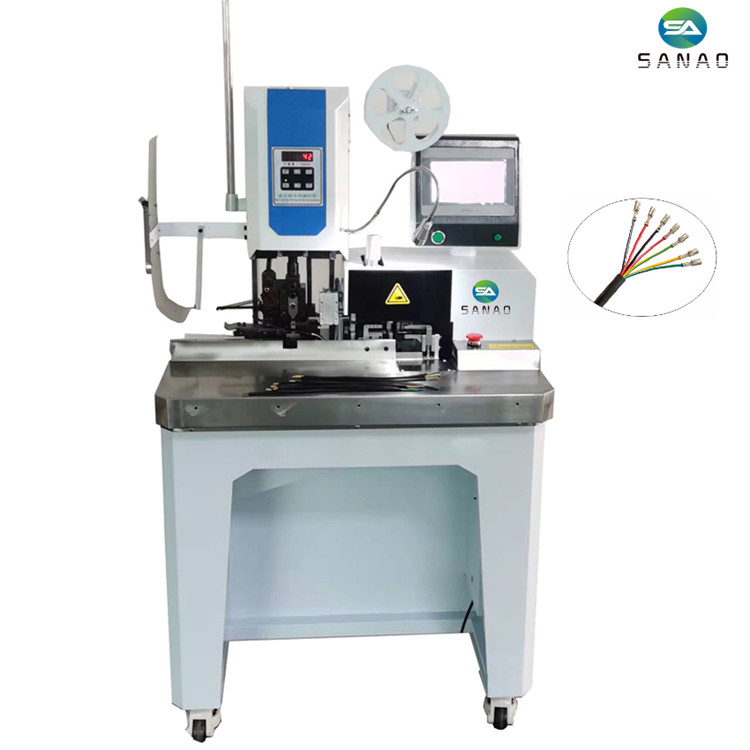

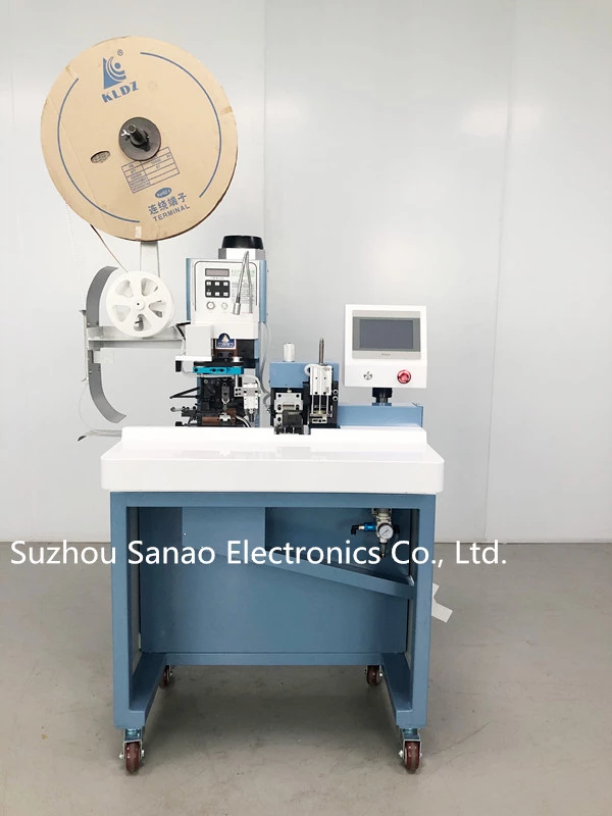

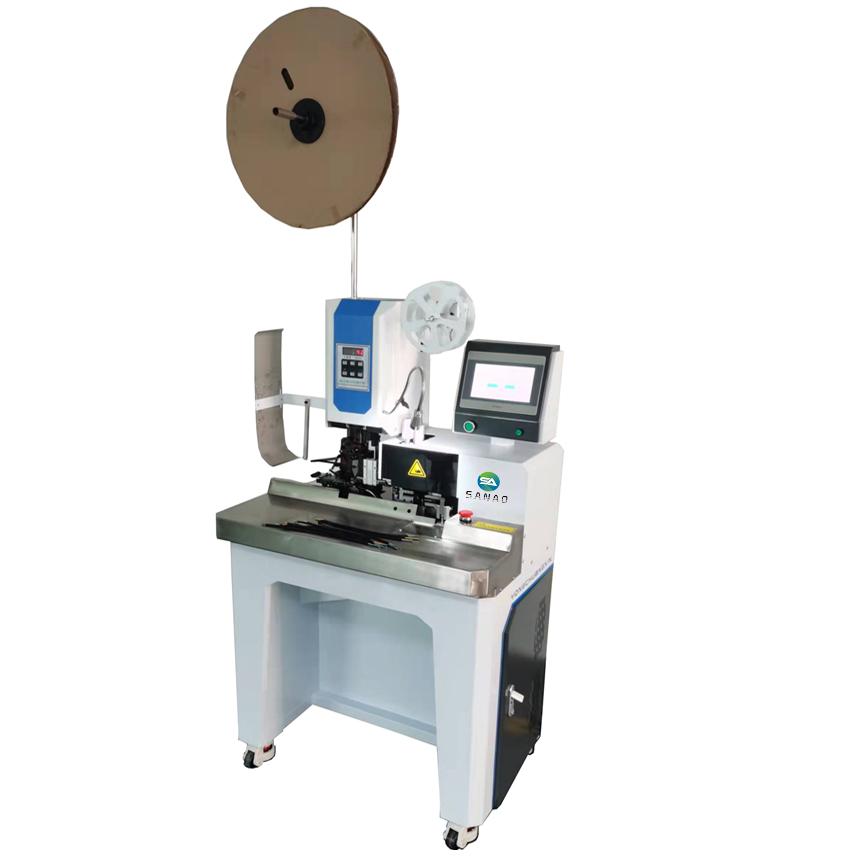

Automatic multi-cores sheath cable stripping crimping machine

  • Model:SA-SH1010
  • Description: SA-SH1010,Automatic multi-cores sheath cable stripping crimping machine, stripping multi core at one time . It's Greatly reduce production time
  • INQUIRY   EMAIL

SA-SH1010,Automatic multi-cores sheath cable stripping crimping machine, stripping multi core at one time . It's Greatly reduce production time , users only need to put the core wire into the designated work position and step one the foot pedal switch , the stripping and crimping operations can be completed automatically , which greatly improves the working efficiency of the multi core sheathed wire crimping operation .

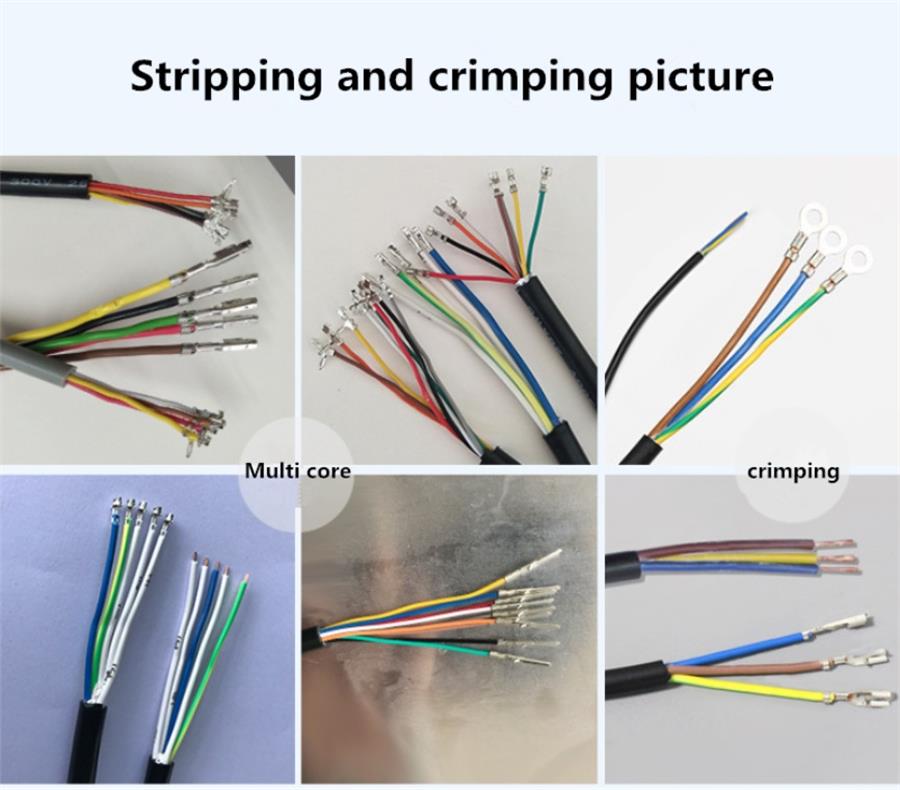

1. Suitable for multi core wires sheathed cable processing: core wire stripping and terminal crimping.
2. Easy operated: operator just needs to put sheathed cable with outer skin stripped into the clip jig, and then this machine will finish core wire stripping and crimping.
3. This machine has the characteristics of unique design, easy adjusting, stable performance, good practicability, etc

Model

SA-SH1010

Cable type

Multiple conductor cable, flat cable etc.

Cable outer diameter

1.3 - 32 mm (0.052 - 1.259 inches) (larger cable can be customized)

Conductor size

30 - 16 AWG

Conductor number

2 - 20 (depending on the cable type)

Stripping length

Depending on conductor size

Crimping force

2.0 T

Applicator

OTP

Productivity

3600 pcs./h (depending on the wire type)

Power supply

110, 220 V (50 - 60 Hz)

Power

750 W

Dimension (L * W * H)

800 * 600 * 1250 mm (31.50 * 23.62 * 49.21 inches)

Net weight

145 kg (319.67 lb)


Our Company

SUZHOU SANAO ELECTRONICS CO., LTD is a professional wire processing machine manufacturer, based on sales innovation and service. As a professional company, we have a large number of professional and technical personnel, strong after-sales services and first-class precision machining technology. Our products are widely used in electronic industry, auto industry, cabinet industry, power industry and aerospace industry.Our company provides you with products and services of good quality, high efficiency and integrity.Our commitment: with the best price and the most dedicated service and tireless efforts to make customers improve productivity and meet customers' needs.

Our mission: for the interests of customers, we strive to innovate and create the world's most innovative products.Our philosophy: honest, customers-centric, market-oriented, technology-based, quality assurance.Our service: 24-hour hotline services.You are welcome to call us. The company has passed ISO9001 quality management system certification , and has been recognized as municipal enterprise engineering technology center , municipal science and technology enterprise , and national high-tech enterprise .

FAQ

Q1: Are you a trading company or a manufactory?

A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !

Q2: What’s your guarantee or the warranty of the quality if we buy your machines?

A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q3: When can I get my machine after I paid?

A3: The delivet time is based on the exact machine you confirmed.

Q4: How can I install my machine when it arrives?

A4: All machine will be install and debug well before delivery . English Manual and operate video will be together send with machine . you can directly use when you got our machine . 24 hours online if you have any questions

Q5: How about the spare parts?

A5: After we deal down all the things , we will offer you a spare parts list for your reference.
