Automatic stripping crimping machine

  • Automatic Flat Ribbon cable terminal stripping crimping machine
  • Automatic Flat Ribbon cable terminal stripping crimping machine
  • Automatic Flat Ribbon cable terminal stripping crimping machine
Automatic Flat Ribbon cable terminal stripping crimping machineAutomatic Flat Ribbon cable terminal stripping crimping machineAutomatic Flat Ribbon cable terminal stripping crimping machine

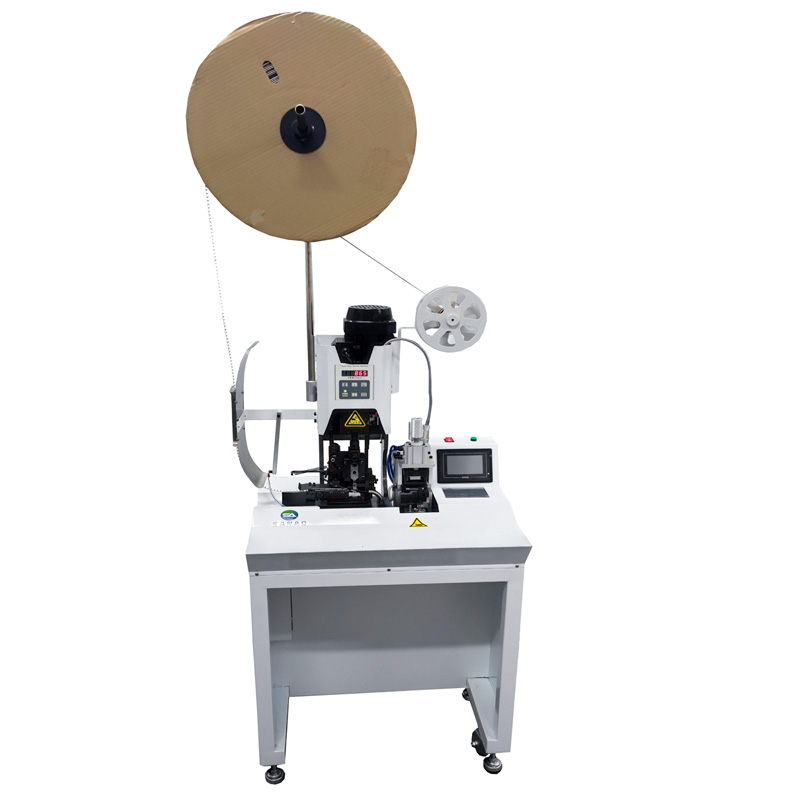

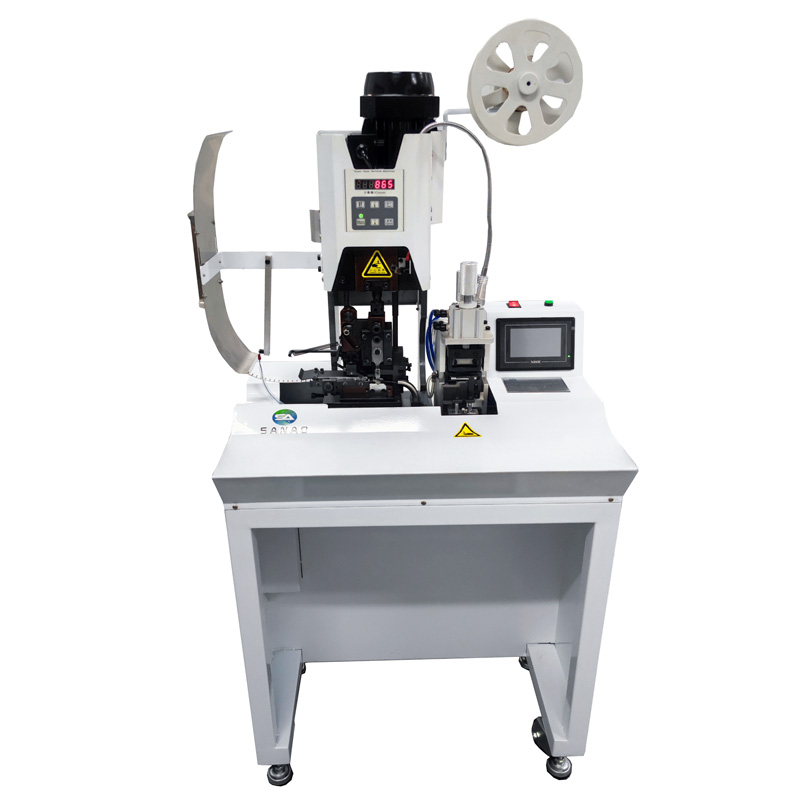

Automatic Flat Ribbon cable terminal stripping crimping machine

  • Model:SA-SH1020
  • Description: SA-AH1020 Design for 2-12pin flat cable stripping and crimping machine , It's stripping and crimping multi core at one time , It’s Greatly Improved wire crimping speed and save labor cost.
  • INQUIRY   EMAIL

The multi-core sheathed cable stripping and ferrules crimping machine is especially designed for processing the core wires of multi-conductor sheathed cable. The outside jacket should be pre-stripped before using this machine.the advanced frequency conversion technology, intelligent control, when weld, the machine start to work, compared with the traditional terminal machine, the noise is smaller , power consumption reduced by 50%,installation mold is more quick and convenient,avoid the common faults of traditional terminal,such as clutch,electromagnet and so on.

Model

SA-SH1010

SA-SH1020

Available Wire Size

5 cores,min.0.75mm; 8 cores, min.0.5mm; 12 cores, min.0.3mm

Inner cores 0.8-4mm

Available Cores Number

1-12 cores

1-12 cores

Cores Stripping Length

1-7mm

1-7mm

Jacket stripping Length

≥32mm

2-4 cores, min 25mm; 5-10 cores, min 40mm

Crimp Force

2Ton

2Ton

Production Rate

700-800 pieces/hour (6 cores)

3000-5000 terminal/h

Air Connection

0.4-0.7 Mpa

0.4-0.7 Mpa

Power supply

110/220VAC,50/60Hz

110/220VAC,50/60Hz

Our Company

SUZHOU SANAO ELECTRONICS CO., LTD is a professional wire processing machine manufacturer, based on sales innovation and service. As a professional company, we have a large number of professional and technical personnel, strong after-sales services and first-class precision machining technology. Our products are widely used in electronic industry, auto industry, cabinet industry, power industry and aerospace industry.Our company provides you with products and services of good quality, high efficiency and integrity.Our commitment: with the best price and the most dedicated service and tireless efforts to make customers improve productivity and meet customers' needs.

Our mission: for the interests of customers, we strive to innovate and create the world's most innovative products.Our philosophy: honest, customers-centric, market-oriented, technology-based, quality assurance.Our service: 24-hour hotline services.You are welcome to call us. The company has passed ISO9001 quality management system certification , and has been recognized as municipal enterprise engineering technology center , municipal science and technology enterprise , and national high-tech enterprise .

FAQ

Q1: Are you a trading company or a manufactory?

A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !

Q2: What’s your guarantee or the warranty of the quality if we buy your machines?

A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q3: When can I get my machine after I paid?

A3: The delivet time is based on the exact machine you confirmed.

Q4: How can I install my machine when it arrives?

A4: All machine will be install and debug well before delivery . English Manual and operate video will be together send with machine . you can directly use when you got our machine . 24 hours online if you have any questions

Q5: How about the spare parts?

A5: After we deal down all the things , we will offer you a spare parts list for your reference.
