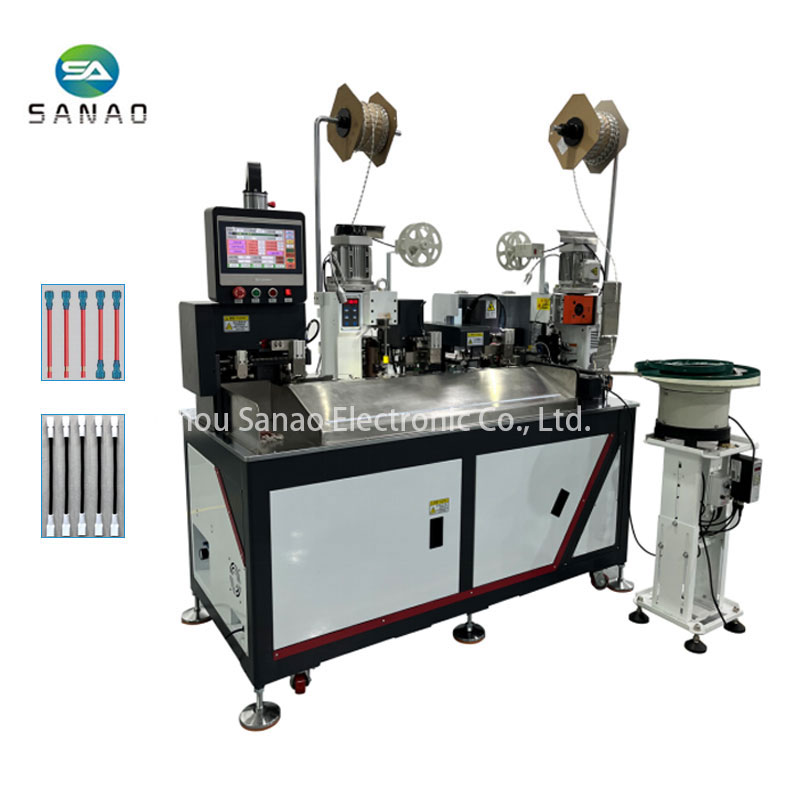

Fully Automatic Double End Sheathing Terminal Machine

SA-GT178
Description: SA-GT178 A fully automatic double end sheathing terminal machine. The whole machine adopts the concept of modular flexible design, one machine can easily process many different products, and each functional module can be opened or closed freely in the program
INQUIRY EMAIL

SA-GT178

Machine Main parts brand Taiwan HIWIN screw, Taiwan AirTAC cylinder, leadshine servo motor ( China brand ) , Taiwan HIWIN slide rail, Japanese imported bearings.This is a high quality machine.

Colour touch screen operation interface, parameter setting is intuitive and easy to understand. The machine has a programmes saving function, which is convenient to use directly next time without setting the machine again, simplifying the operation process.
Advantage
1: Different terminals only need to replace the applicator, This is easy to operate,and multi-purpose machine.
2: Advanced software and English colour LCD touch screen make it easy to operate. All parameters can be directly set on our machine
3: The machine has a programmes saving function,simplifying the operation process.
4 .AdoptingServo terminal machine, the machine quality is more stable and reliable.
5: Machines can be customised according to customer requirements, welcome to inquire!

Model	SA-GT178
Power supply	Single-phase AC220V50Hz
Function	Wire cutting, stripping of single (double) ends, pressing of single (double) ends, threading through sheaths on single (double) ends and pulling them into place
Efficiency	1800-2200 per hour
Processing range	3122/AWG1015#12-#24/ Wire outer diameter :1.0mm-4.0mm
Cutting line length	90mm-9999mm(For sizes over 800MM, a conveyor belt is required)
Cutting line accuracy	Adjustment range: 0.5MM+ cutting length x 0.2% or less
The ability to suppress	Standard 3T0N(Casting ultra-quiet clutch 3.0T terminal machine)
dimension	1700Wx900Dx1860H(mm)
Optional products	1. Cassette mold and blade 2. Vertical wire feeder 3. Axial wire release 4. Long line conveyor belt 5. Pressure management system
Brand of main components	Taiwan HIWIN /TBI / Fulei lead screws, Taiwan Airtac cylinder solenoid valves, Lesai/Huichuan servo motors, Fulei slide rails, Japanese imported bearings.
