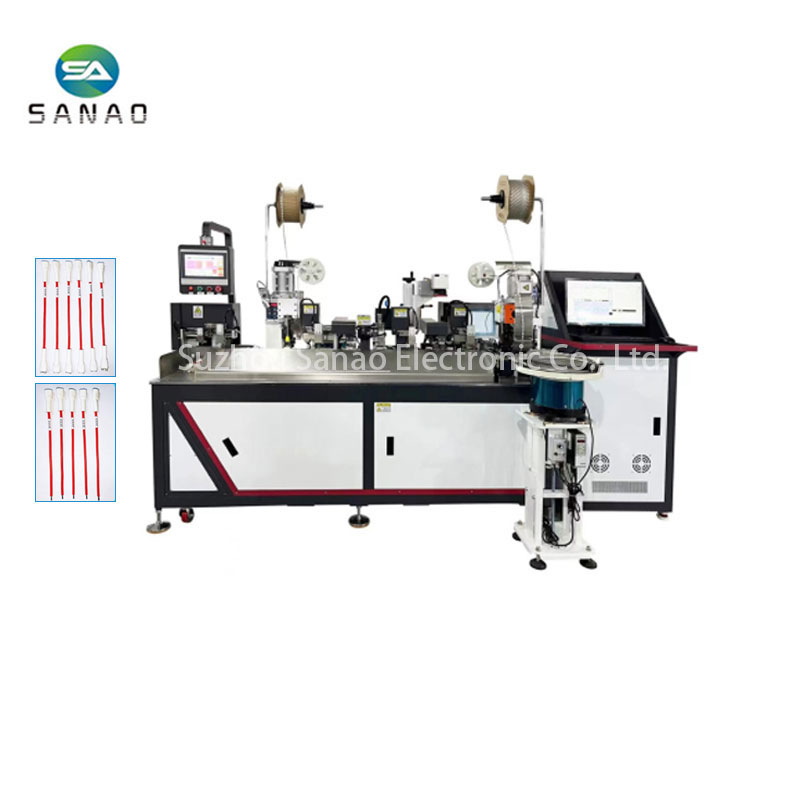

Fully Automatic Double Head Sheath and Number Tube Terminal Machine

SA-TG2280
Description: SA-TG2280 Fully Automatic Double Head Sheath and Number Tube Terminal Machine.The whole machine adopts the concept of modular flexible design, one machine can easily process many different products, and each functional module can be opened or closed freely in the program.
INQUIRY EMAIL

SA-TG2280

Machine Main parts brand Taiwan HIWIN screw, Taiwan AirTAC cylinder, leadshine servo motor ( China brand ) , Taiwan HIWIN slide rail, Japanese imported bearings.This is a high quality machine.

Colour touch screen operation interface, parameter setting is intuitive and easy to understand. The machine has a programmes saving function, which is convenient to use directly next time without setting the machine again, simplifying the operation process.
Advantage
1: This is easy to operate,and multi-purpose machine.
2: Advanced software and English colour LCD touch screen make it easy to operate. All parameters can be directly set on our machine
3: The machine has a programmes saving function,simplifying the operation process.
4 .AdoptingServo terminal machine, the machine quality is more stable and reliable.
5: Machines can be customised according to customer requirements, welcome to inquire!

Model	SA-TG2280
Power supply	Single-phase AC220V50/60Hz
Wire specification	AWG#24-AWG#12
Cutting length	60mm-9999mm(Minimum cutting length varies according to the peeling size)
Peeling length	1-15mm
Crimping force	2.0T-3.0T
Applicable mold	General-purpose OTP mold
Detection device	Air pressure detection, wire presence detection, crimping terminal presence detection, sheath presence detection
Function	Wire cutting, single (double) end stripping, single (double) end pressing, single (double) end threading through sheaths, single end threading through heat shrink tubes and positioning shrinkage, single end laser coding
Production capacity	1700-2300pcs/h(depending on the terminal of the wire)(continuous operation without stopping state)
Compressed air	0.5 MPa to 0.8 MPa (170 N/min)
dimension	Length: 2300* Width: 870* Height: 1800(mm)
Brand of main components	Taiwan HIWIN /TBI/ Fulei lead screws, Taiwan Airtac cylinder solenoid valves, Lesai/Huichuan servo motors, Fulei slide rails, Japanese imported bearings.
