PE PVC Heat Shrink Tubing Infrared Heat Tunnel

  • Model:SA-600B-2F-380
  • Description: SA-600B-2F-380,double side heat shrinkable tube heating machine,suitable for heating shrinkage of heat shrinkable tubes in wire harness processing enterprises
  • INQUIRY   EMAIL

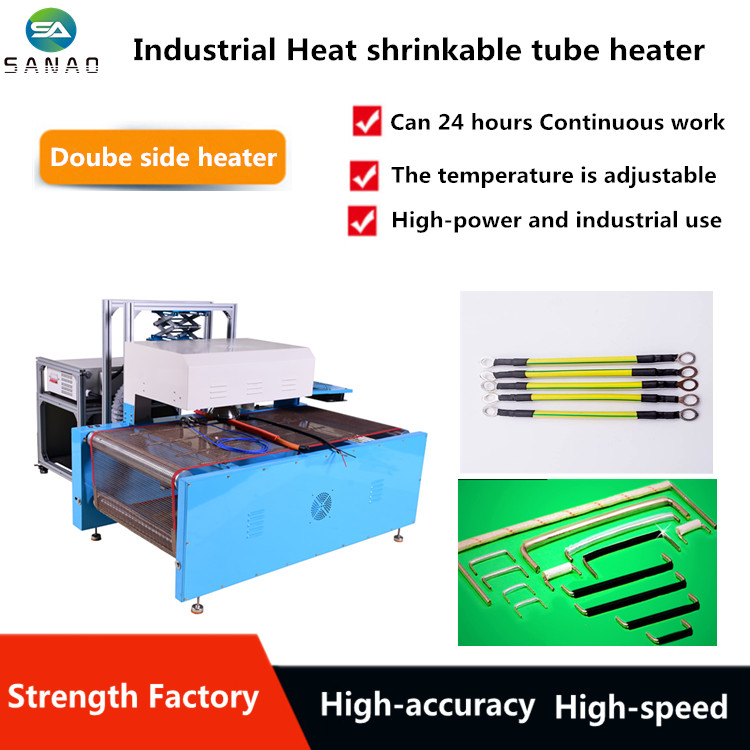

SA-600B-2F-380 is a precision heat shrinkable tube heating machine,designed for mass production.It can work for 24 hours in a row,process special products.The heating machine and the conveyer are used together to realize the precise heating of the heat shrinkable tube without damaging the wire. By manually adjusting the speed, the speed of the conveyor belt is kept uniform. The vertical distance and the parallel distance of the heating port to the conveyor belt can be adjusted, and the heat shrinkable tube of different size components can be heated.It is suitable for users with accurate heating requirements for wire harness,can also be applied toheat high temperature Teflon heat shrinkable tubes or large diameter and long heat shrinkable tubes.

Characteristics:

Equipment composition

Heating system + control system + wiring harness support system

The working state is displayed by liquid crystal display

The working temperature, output power and heating program are shown by digital display.

Set up 4 sets of heating program, random call

The heating time, heating output power and stopping time of the heat shrinkable tube can be set freely according to the users' requirements, and can be called randomly.

One side or double side heating is optional

According to the heating requirements of the heat shrinkable tube, it is free to choose one side or two side heating.

The width of heating zone is adjustable

The width of the heating zone can be adjusted by the user according to the size of the heat shrinkable tube, save energy as much as possible and ensure the wire do not be hurt.

Heat insulation design of heating zone

The double shell design of heating area makes the inside and outside temperature separate, that is to save energy and protect the working environment

Classification

Item

Parameter

size

Conveyor (L x W x H)

selective assembling

Heating machine (L x W x H)

See picture

Maximum wire harness diameter

<60mm

Maximum heating casing length

<90mm

Heating area

400mm

Cooling zone

200mm

Maximum transmission width

550mm

Maximum transmission height

<90mm

Conveyor belt

Texture of material

Teflon

speed

1~3m/min

The power of the motor

25WStepless speed regulation

heating

Heating mode

Hot air

Heating pipe power

6000W2 sets

Our Company

SUZHOU SANAO ELECTRONICS CO., LTD is a professional wire processing machine manufacturer, based on sales innovation and service. As a professional company, we have a large number of professional and technical personnel, strong after-sales services and first-class precision machining technology. Our products are widely used in electronic industry, auto industry, cabinet industry, power industry and aerospace industry.Our company provides you with products and services of good quality, high efficiency and integrity.Our commitment: with the best price and the most dedicated service and tireless efforts to make customers improve productivity and meet customers' needs.

Our mission: for the interests of customers, we strive to innovate and create the world's most innovative products.Our philosophy: honest, customers-centric, market-oriented, technology-based, quality assurance.Our service: 24-hour hotline services.You are welcome to call us. The company has passed ISO9001 quality management system certification , and has been recognized as municipal enterprise engineering technology center , municipal science and technology enterprise , and national high-tech enterprise .
