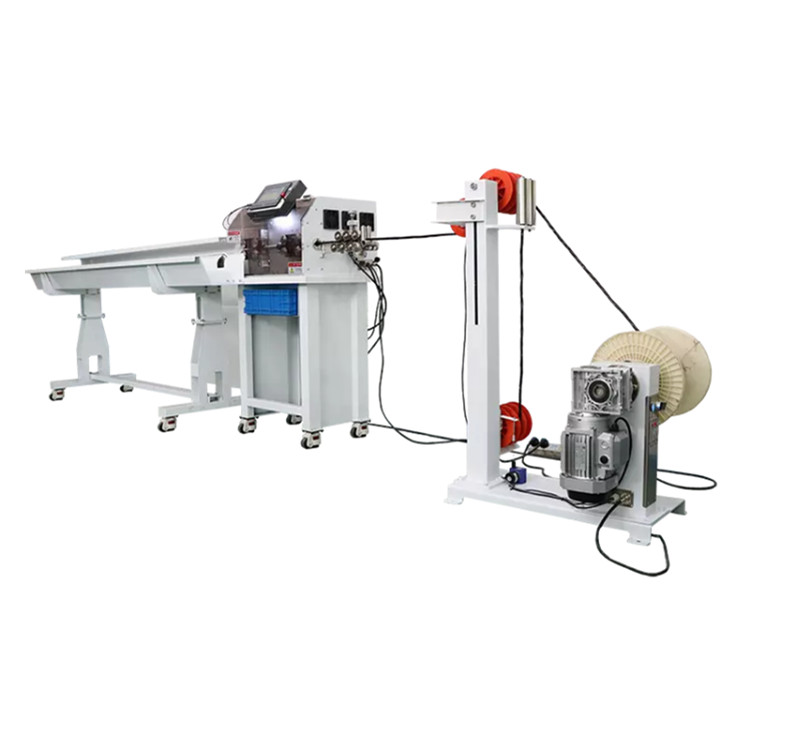

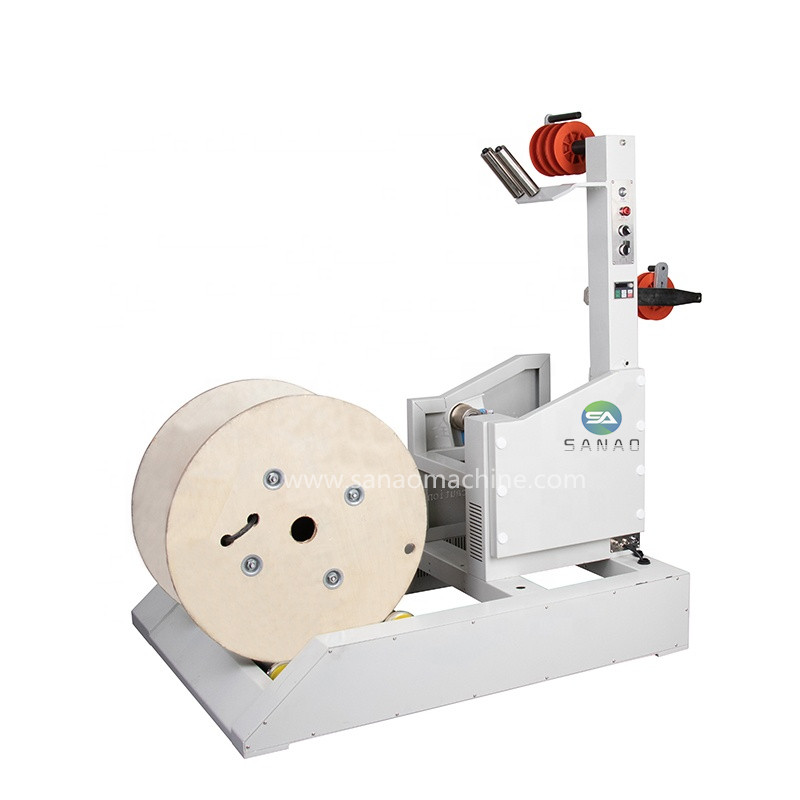

Automatic Wire Feeding Machine ,the speed is changed according to cutting machine speed that not need people adjust ,automatic induction pay off, guarantee wire/cable can automatically send out. Avoid tying a knot to, it is suitable to match with our wire cutting and stripping machine to use.
Feature
1.The frequency converter controls the pre-feeding speed.Not need people operate speed , It is suitable for various wires and cables.
2.can cooperate with any kind of automatic machine to feed the wire. Can Automatically cooperate with wire stripping machine speed
3.Applicable to various types of electronic wires, cables, sheathed wires, steel wires, etc.
4. Cable spool max diameter: 680mm ,Max Load weight: 230KG
|
Model |
SA-F300 |
SA-F600 |
|
Available Wire Diameter |
≤ Φ18mm |
≤ Φ25mm |
|
Available Spool Diameter |
≤ 600mm |
300- 680mm |
|
Max Load Weight |
60kg |
230kg |
|
Feeding Speed |
0-4m/s |
0-50m/min |
|
Power Supply |
220/110V,50/60Hz |
|
|
Available Wire |
Wire, cable etc. |
|
|
Drive Type |
Inverter & motor & reducer |
|
|
Dimensions |
75*40*110cm |
104*62*140cm |
|
Weight |
55kg |
135kg |
